Marathon Electric U252

mpnU252
brandname: Marathon Electric
manufacturername: Marathon Electric

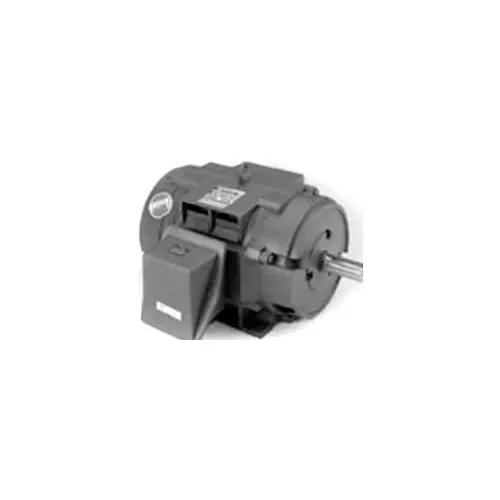

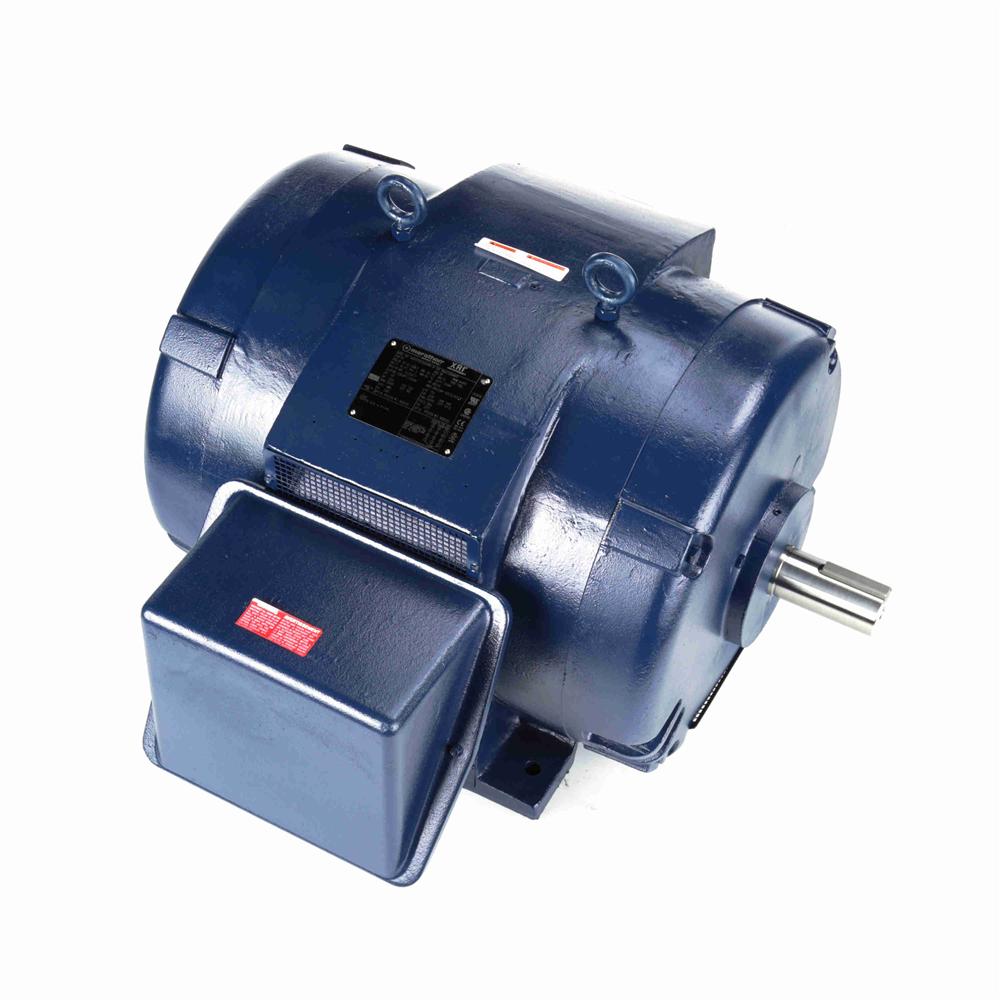

U252 444TSTDS16003 200 Hp 460 3 PH. 444TS FR. 3600 Rpm

U252 444TSTDS16003 200 Hp 460 3 PH. 444TS FR. 3600 Rpm

zoom

Brand: Marathon Electric
PartNumber: U252
PackageQuantity: 1
Manufacturer: Marathon Electric
Label: Marathon Electric

Attributes

Key	Value
Amps	220
Approvals	CSA, UL
Bearing Type	Ball
Bearings	Ball
Composition	Cast Iron
Duty Cycle	Continuous
Efficiency	0.95
Efficiency %	95.8 %
Enclosure	Drip Proof
Enclosure Material	Iron
Enclosure Type	ODP (Open Dripproof)
Family Series	Marathon Electric Motor.
Frame	444TS
Gross Weight	0 lbs
Horsepower	200 hp
HP	200
Hz	60
Insulation Class	F
Inverter Duty	Yes
Item Number	U252
Manufacturer	Marathon Electric
Manufacturer Model #	444TSTDS16003
Manufacturer Part Number	444TSTDS16003
Maximum Ambient Tempera.	40? C
Model Number	444TSTDS16003
Motor Shell Length	18.5"
Mounting	Base
Mounting Orientation	Horizontal
Mounting Type	Foot Mount, Rigid
NEMA Frame	444TS
Net Weight	1314 lbs
Nominal Voltage	415 VAC, 480 VAC
Number of Speeds	1
Overall Length	34"
Overload Protection	Thermostat
Phase	3
Product Series	NEMA PREMIUM GENERAL PU.
Product Type	Three Phase
Rotation	Reversible
RPM	3560, 3,600 RPM
Service Factor	1.15
Shaft Diameter	2-3/8"
Shaft Length	5"
Ship Weight	1277 lbs.
Voltage (AC)	460 VAC
Volts	460

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	emotorpro.com	U252	14422.9	1	In Stock		Marathon	1277.0	14422.9 @ 1
	Galco	U252-MARA	15202.0	1	In Stock		Marathon Electric	1314.0	15202.0 @ 1
	Global Industrial	WBB871493	15448.0	1	In Stock	17	Marathon Motors		15448.0 @ 1
	National Supply Network	B871493	16028.96	1	In Stock		MARATHON MOTORS		16028.96 @ 1
