Marathon Electric U269

B005DTCN9Y

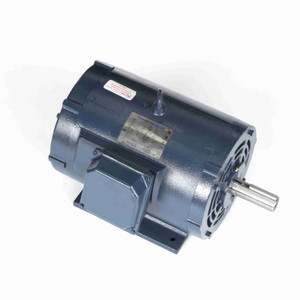

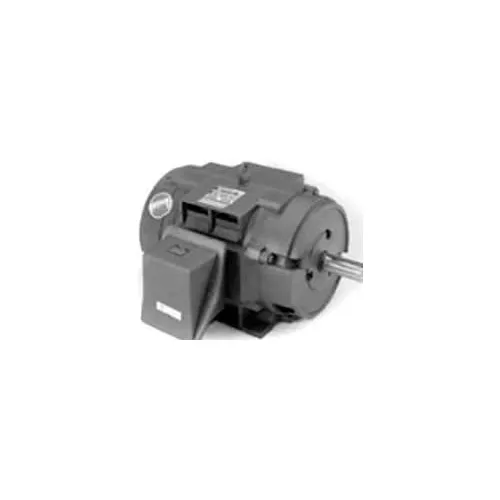

Marathon U269 Premium Efficiency Motor

Marathon U269 Premium Efficiency Motorzoom

Attributes

Key Value
Amps15.8-15.0/7.5, 15.8-15/.
applications:Blowers and Machinery i.
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension16.38 (in.)
Catalog NumberU269
CEN
CompositionSteel
CSAY
CT Speed Range10:1
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
duty / condition type:Inverter Duty
Duty CycleContinuous
Efficiency0.902
Efficiency %90.2 %
Electrical TypeSquirrel Cage Induction.
EnclosureDrip Proof
Enclosure MaterialIron
Enclosure TypeODP (Open Dripproof), D.
enclosure type:DP (Drip Proof)
Family SeriesMarathon Electric Motor.
Frame215T
Frame MaterialCast Iron
frame material:Cast Iron
frame size:215T
Frame Type215T
Frequency60
frequency rating:60 Hz
full load current:15.80
full load efficiency:90.20 %
Gross Weight0 lbs
Horsepower5 hp
HP5
Hz60
Insulation ClassF
insulation class:F
Inverter DutyYes
IP Code22
ip rating:22
Item NumberU269
KVA CodeJ
ManufacturerMarathon Electric
Manufacturer Model #215TTDC6076
Manufacturer Part Number215TTDC6076
Max Ambient40?C
Maximum Ambient Tempera.40? C
Model Number215TTDC6076
motor horsepower:5.00 hp, 5 hp
Motor OrientationHorizontal
motor phase:3 ph
motor supply voltage:208-230/460 V
MountingBase
Mounting OrientationHorizontal
Mounting TypeFoot Mount, Rigid, Rigi.
mounting type:Rigid Base
NEMA Frame215T
Net Weight185 lbs
Nominal Voltage208 VAC, 240 VAC, 415 V.
Number of Speeds1
ODE Bearing TypeBall
Overall Length16.38", 16.38 "
overall length (c-dimen.16.38 in
Overload ProtectionThermostat
Phase3
Product CategoryGeneral Purpose NEMA Ge.
Product SeriesNEMA PREMIUM GENERAL PU.
Product TypeThree Phase
RotationReversible
RPM1,200 RPM, 1180
RPM (Nameplate)1180
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1.15
service factor:1.15
Shaft Diameter1-3/8", 1-3/8 (in.)
shaft diameter:1.38 in
Shaft Extension3.38 (in.)
Shaft Length3.38"
Shaft TypeT
Ship Weight185 lbs.
Speeds1
standards met:UL, CSA
synchronous rpm:1200 rpm
Type of Overload Protec.No
ULRecognized
Voltage (AC)208-230 VAC, 460 VAC
Volts208, 230, 460, 208-230/.
weight:185 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comU269682.01In StockMARATHON682.0 @ 1
thumbzoomapexindustrialautomation.comU269889.241In StockMarathon889.24 @ 1
thumbzoomGalcoU269-MARA1010.51In StockMarathon Electric185.01010.5 @ 1
thumbzoommotionindustries.com047382611026.331In StockMarathon Electric1026.33 @ 1
thumbzoomDreisilkerMA-RBC-U2691077.341In StockMarathon1077.34 @ 1
thumbzoomemotorpro.comU2691083.761In StockMarathon185.01083.76 @ 1
thumbzoommidwestapplianceparts.comU269-MT-P1104.371In StockMarathon1104.37 @ 1
thumbzoomGlobal IndustrialWBB8715141134.01In Stock17Marathon Motors1134.0 @ 1
thumbzoomNational Supply NetworkB8715141144.921In StockMARATHON MOTORS1144.92 @ 1
cbtcompany.comU2691200.261In StockMarathon Electric Motors1200.26 @ 1
