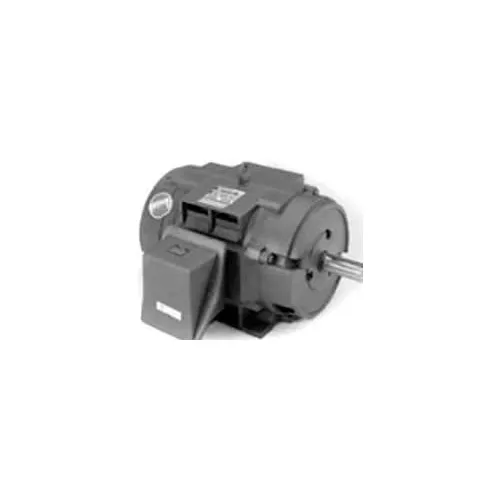

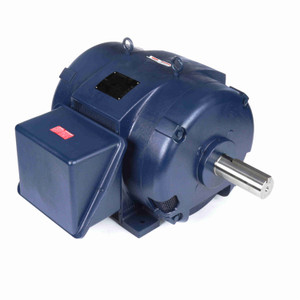

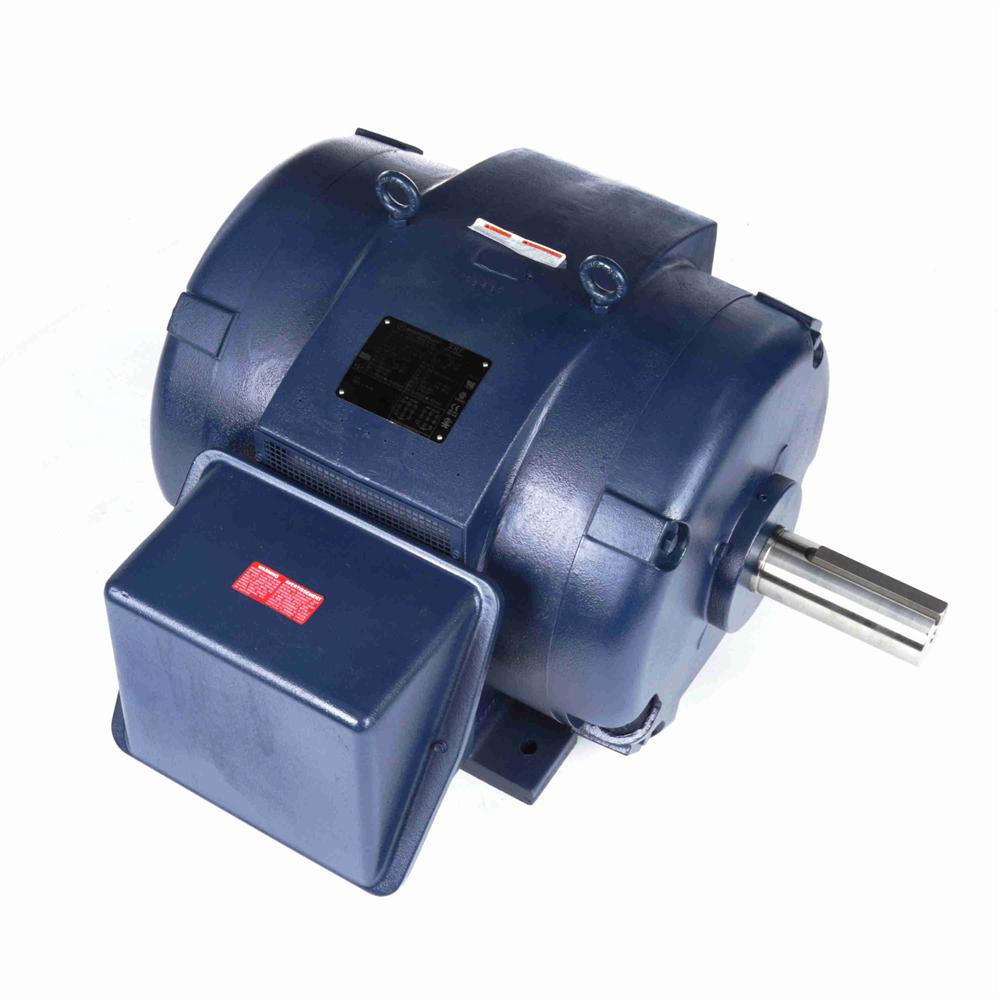

Marathon U271 Premium Efficiency Motor
- Brand: Marathon Electric
- PartNumber: U271
- PackageQuantity: 1
- Manufacturer: Marathon Electric
- Label: Marathon Electric
Attributes
| Key | Value |
|---|
| Amps | 180/90, 180.0/90.0 |
| Approvals | CSA, UL |
| Bearing Type | Ball |
| Bearings | Ball |
| Brand | Marathon |
| C-Dimension | 34.31 (in.) |
| Catalog Number | U271 |
| CE | Y |
| Composition | Cast Iron |
| CSA | Y |
| DE Bearing Type | Ball |
| DEM Reference | NOHP |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 0.95 |
| Efficiency % | 95 % |
| Electrical Type | Squirrel Cage Induction. |
| Enclosure | Drip Proof |
| Enclosure Material | Iron |
| Enclosure Type | ODP (Open Dripproof), D. |
| Family Series | Marathon Electric Motor. |
| Frame | 405T |
| Frame Material | Cast Iron |
| Frame Type | 405T |
| Frequency | 60/50 |
| Gross Weight | 0 lbs |
| Horsepower | 75 hp |
| HP | 75 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | Yes |
| IP Code | 12 |
| Item Number | U271 |
| KVA Code | F |
| Manufacturer | Marathon Electric |
| Manufacturer Model # | 405TTDS16081 |
| Manufacturer Part Number | 405TTDS16081 |
| Max Ambient | 40?C |
| Maximum Ambient Tempera. | 40? C |
| Motor Orientation | Horizontal |
| Motor Shell Length | 17" |
| Mounting | Base |
| Mounting Orientation | Horizontal |
| Mounting Type | Foot Mount, Rigid, Rigi. |
| NEMA Frame | 405T |
| Net Weight | 1052 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 415 V. |
| Number of Speeds | 1 |
| ODE Bearing Type | Ball |
| Overall Length | 34 ", 34.31" |
| Overload Protection | Thermostat |
| Phase | 3 |
| Product Category | General Purpose NEMA Ge. |
| Product Series | NEMA PREMIUM GENERAL PU. |
| Product Type | Three Phase |
| Rotation | Reversible |
| RPM | 1,200 RPM, 1185 |
| RPM (Nameplate) | 1185 |
| RPM (Number of Poles) | 6 (901 RPM to 1200 RPM) |
| Service Factor | 1.15 |
| Shaft Diameter | 2-7/8", 2-7/8 (in.) |
| Shaft Extension | 7.5 (in.) |
| Shaft Length | 7.5" |
| Shaft Type | T |
| Ship Weight | 1100 lbs. |
| Speeds | 1 |
| Type of Overload Protec. | No |
| UL | Recognized |
| Voltage (AC) | 230 VAC, 460 VAC |
| Volts | 230, 460, 230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | emotorpro.com | U271 | 8451.94 | 1 | In Stock | | Marathon | 1100.0 | 8451.94 @ 1 |
 | Galco | U271-MARA | 8908.5 | 1 | In Stock | | Marathon Electric | 1052.0 | 8908.5 @ 1 |
 | Global Industrial | WBB871532 | 9058.0 | 1 | In Stock | 17 | Marathon Motors | | 9058.0 @ 1 |
 | Dreisilker | MA-RBC-U271 | 9497.83 | 1 | In Stock | | Marathon | | 9497.83 @ 1 |
 | National Supply Network | B871532 | 9679.01 | 1 | In Stock | | MARATHON MOTORS | | 9679.01 @ 1 |
