Marathon Electric X303

mpnX303
brandname: Marathon Electric
manufacturername: Marathon Electric

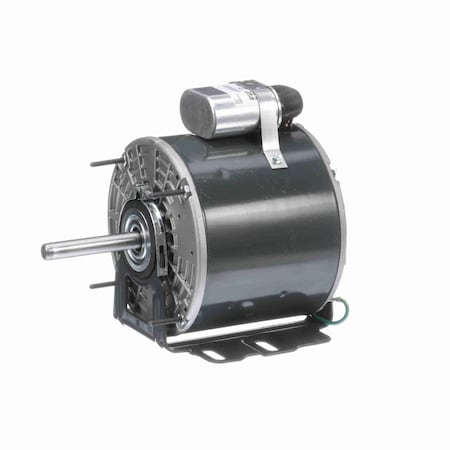

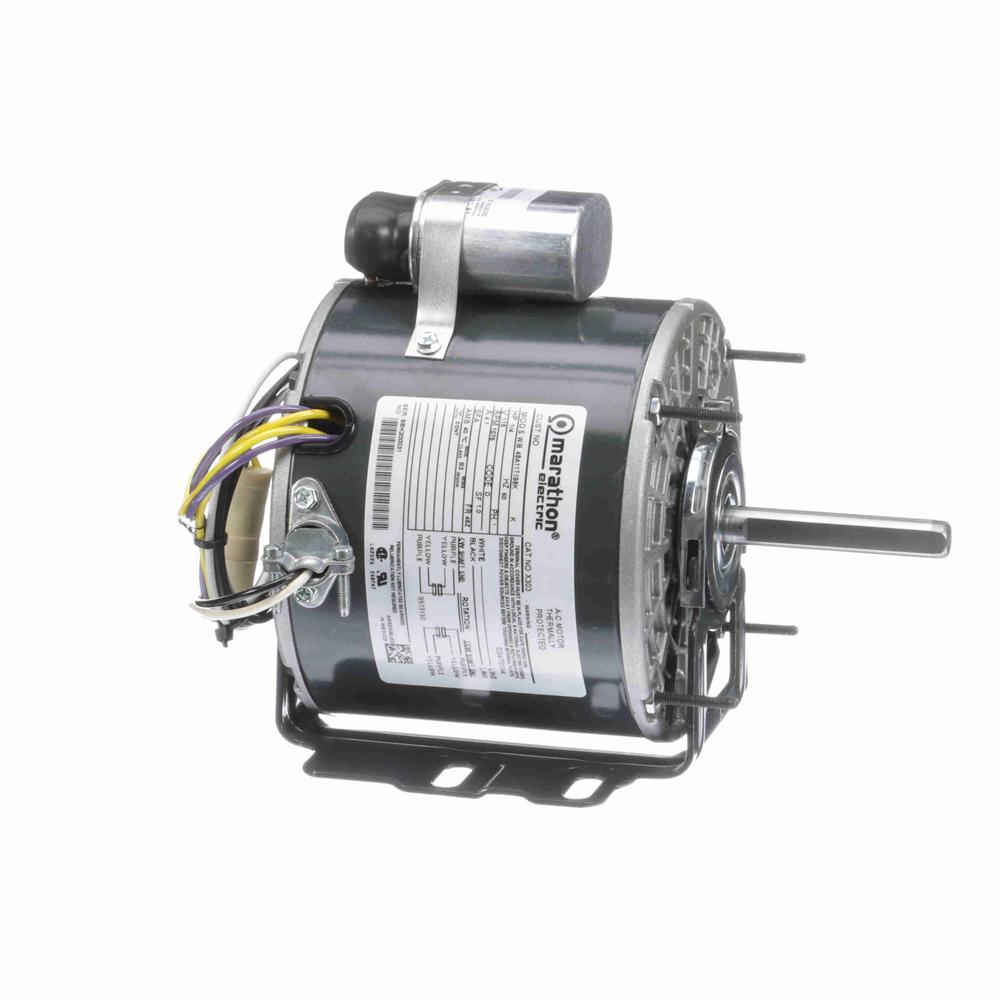

Marathon X303 HVAC Motor

Marathon X303 HVAC Motor

zoom

Brand: Marathon Electric
PartNumber: X303
PackageQuantity: 1
Manufacturer: Marathon Electric
Label: Marathon Electric

Attributes

Key	Value
Alternate Mfr Part Numb.	048A11T198
Amps	4.1
Bearings	Ball
Brand	Marathon
C-Dimension	8.50 (in.) (in.)
Capacitor	Included
Catalog Number	X303
CE	N
Country of Origin (subj.	Mexico
CSA	Y
Current Rating	4.1 A
DE Bearing Type	Ball
DEM Reference	MA#X303
Duty	Continous
Duty Cycle	Continuous
Efficiency	0.595, 59.5
Electrical Type	Permanent Split Capacit.
Enclosure	TEAO
Enclosure Material	Steel
Enclosure Type	TEAO (Totally Enclosed .
Frame	48Z
Frame Material	Rolled Steel
Frame Type	48Z
Frequency	60, 60 Hz
Gross Weight	0 lbs
Horsepower Rating	0.25 HP
HP	1/4
Hz	60
Insulation Class	B
Insulation Type	Class B
IP Code	43
KVA Code	D
Manufacturer Model #	048A11T198
Max Ambient	40?C
Maximum Ambient Tempera.	40? C
Motor Diameter	5-5/8"
Motor Orientation	Horizontal
Motor Shell Length	4.25"
Mounting	Base/Stud
Mounting Orientation	Horizontal
Mounting Type	Resilient Base - Extend.
Number of Speeds	1
ODE Bearing Type	Ball
Overall Length	8.5"
Phase	1, 1 Phase
Product Category	HVAC/R Motors > Direct.
Product Type	PSC (Permanent Split Ca.
Rotation	Reversible, Selective C.
RPM	1075 RPM, 1075
RPM (Nameplate)	1075
RPM (Number of Poles)	6 (901 RPM to 1200 RPM)
Service Factor	1
Shaft Diameter	1/2 (in.), 1/2"
Shaft Extension	2.81 (in.) (in.)
Shaft Length	2.81"
Shaft Type	Single Special Extension
Ship Weight	14 lbs.
Special Features	Service Factor - 1
Speeds	1
Standards	UL Recognized
Supply Voltage	115 VAC
Thermal Protection	Automatic
Type	Permanent Split Capacit.
Type of Overload Protec.	Automatic Lock Rotor On.
UL	Recognized
UPC Code	722856041821
Voltage	115
Volts	115

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Galco	X303-MARA	205.82	1	In Stock		Marathon Electric		205.82 @ 1
	MRO Supply	2269832	208.65	1	In Stock		Marathon Electric		208.65 @ 1
	us.rs-online.com	72238296	243.97	1	In Stock		Marathon Motors		243.97 @ 1
	Dreisilker	MA-RBC-X303	254.82	1	In Stock		Marathon		254.82 @ 1
	emotorpro.com	X303	254.92	1	In Stock		Marathon	14.0	254.92 @ 1
	midwestapplianceparts.com	X303-MT-P	264.39	1	In Stock		Marathon		264.39 @ 1
	industrialmotors.com	X303	276.0	1	12		MARATHON ELECTRIC		276.0 @ 1
	Guardian	MARSX303	286.68	1	In Stock		Marathon		286.68 @ 1
	National Supply Network	B871804	290.22	1	In Stock		MARATHON MOTORS		290.22 @ 1
	Global Industrial	WBB872060	310.95	1	In Stock		Marathon Motors		310.95 @ 1
	kirbyrisk.com	2270106	318.15	1	In Stock		Marathon		318.15 @ 1
	Zoro	G606629541	334.23	1	In Stock	10	Marathon		334.23 @ 1
