Marathon Industries 326TTDR16102

B07HJQY38J

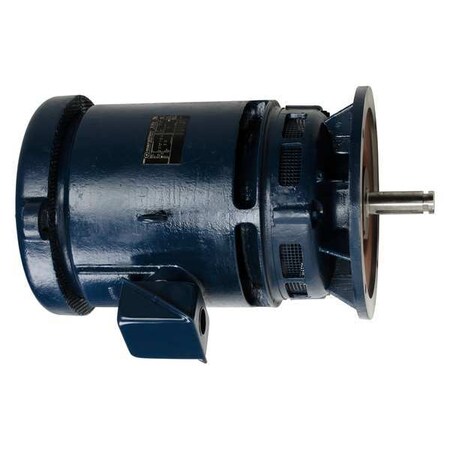

Vertical Pump Motor 25 HP 880 RPM

Vertical Pump Motor 25 HP 880 RPMzoom

Attributes

Key Value
Ambient Temperature40 Degrees C
BaseP-Base
CategoryElectric Motor
CC NumberCC003A
CompositionRolled Steel
Country of Origin (subj.United States
DutyContinuous
Efficiency %91 %
EnclosureODP, Open
Family SeriesMarathon Electric Motors
FinishEnamel
Frame326HPV
Full Load Amps73.0/36.5
Gross Weight0 lbs
Horsepower25 hp
HP25
Hz60
Ins. ClassF
ItemVertical Pump Motor
Item ConditionFACTORY NEW
Item Number326TTDR16102
Kilowatts18.7 kW
Length Less Shaft26-1/16"
ManufacturerMarathon Electric
Manufacturer Part NumberM824B
Motor ApplicationPump
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialCast Iron
Motor Mounting PositionAll Angle
Motor Mounting TypeFace
Motor Service Factor1.15
Motor Shaft RotationCW/CCW
Motor Sub ApplicationVertical Pump
Motor Thermal ProtectionNone
mountingSpecial
Mounting TypeRound
Nameplate RPM880
NEMA Frame326HPV
NEMA StandardMG-1 18.237
Net Weight498 lbs
Nominal Efficiency96.2%
Nominal Voltage240 VAC, 277 VAC, 347 V.
Overall Length30-9/16"
Phase3
RPM882 RPM, 900
RPM RangeUnder 1000
Service Factor1.15
Shaft Dia.1-5/8"
Shaft Length4-1/2"
StandardsUL (E49747), CSA (LR202.
Voltage230/460
Voltage (AC)230 VAC, 460 VAC
Voltage Compatibility208-230/460
Volts230/460
Warranty1 yr.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG84986683717.721In Stock25Marathon Motors3717.72 @ 1
Grainger53DF055000.01In Stock25MARATHON MOTORS5000.0 @ 1
thumbzoomGalco326TTDR16102-MARA5617.01In StockMarathon Electric498.05617.0 @ 1
thumbzoomDealers Electric326TTDR161027441.991In StockMarathon Electric498.07441.99 @ 1
