Martin 4 B 250 TB

B004BKIPPW

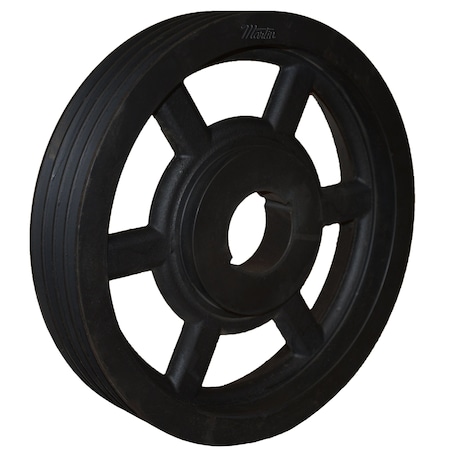

Martin 4 B 250 TB Conventional Taper Bushed Sheave, A/B Belt Section, 4 Grooves, 3030 Bushing required, Class 30 Gray Cast Iron, 25.35" OD, 979 max rpm, A - 24.6/B - 25" Pitch Diameter

Martin 4 B 250 TB Conventional Taper Bushed Sheave, A/B Belt Section, 4 Grooves, 3030 Bushing required, Class 30 Gray Cast Iron, 25.35" OD, 979 max rpm, A - 24.6/B - 25" Pitch Diameterzoom

Attributes

Key Value
Belt Cross SectionA/B
Bore TypeBushed
Bushed For3030
Bushing Maximum Bore Si.2.75 "
Bushing MountStandard
Bushing StyleTB
Length Through Bore3 "
MaterialCast Iron
Number of Grooves4
Outer Diameter25.35 in
Outside Dia25.350"
Pitch Diameter25 "
Sheave ConstructionArm / Spoke
Sheave Face Width3.25 "
Sheave TypeConventional
UPC Code697950155364
Weight80 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonB004BKIPPW570.491In StockMartin570.49 @ 1
us.rs-online.com72479883786.291In StockMartin Sprocket & Gear80.0786.29 @ 1
thumbzoomMRO Supply254909817.61In StockMartin Sprocket817.6 @ 1
factorysupplyoutlet.comMK61VJ846.341In Stock25MARTIN846.34 @ 1
thumbzoomPurvis4 B 250 TB1008.01In StockMartin1008.0 @ 1
thumbzoomZoroG36675761099.271In Stock14Martin Sprocket & Gear1099.27 @ 1
