Molex / Waldom 22-04-1051

mpn0022041051
brandname: Molex
manufacturername: Molex

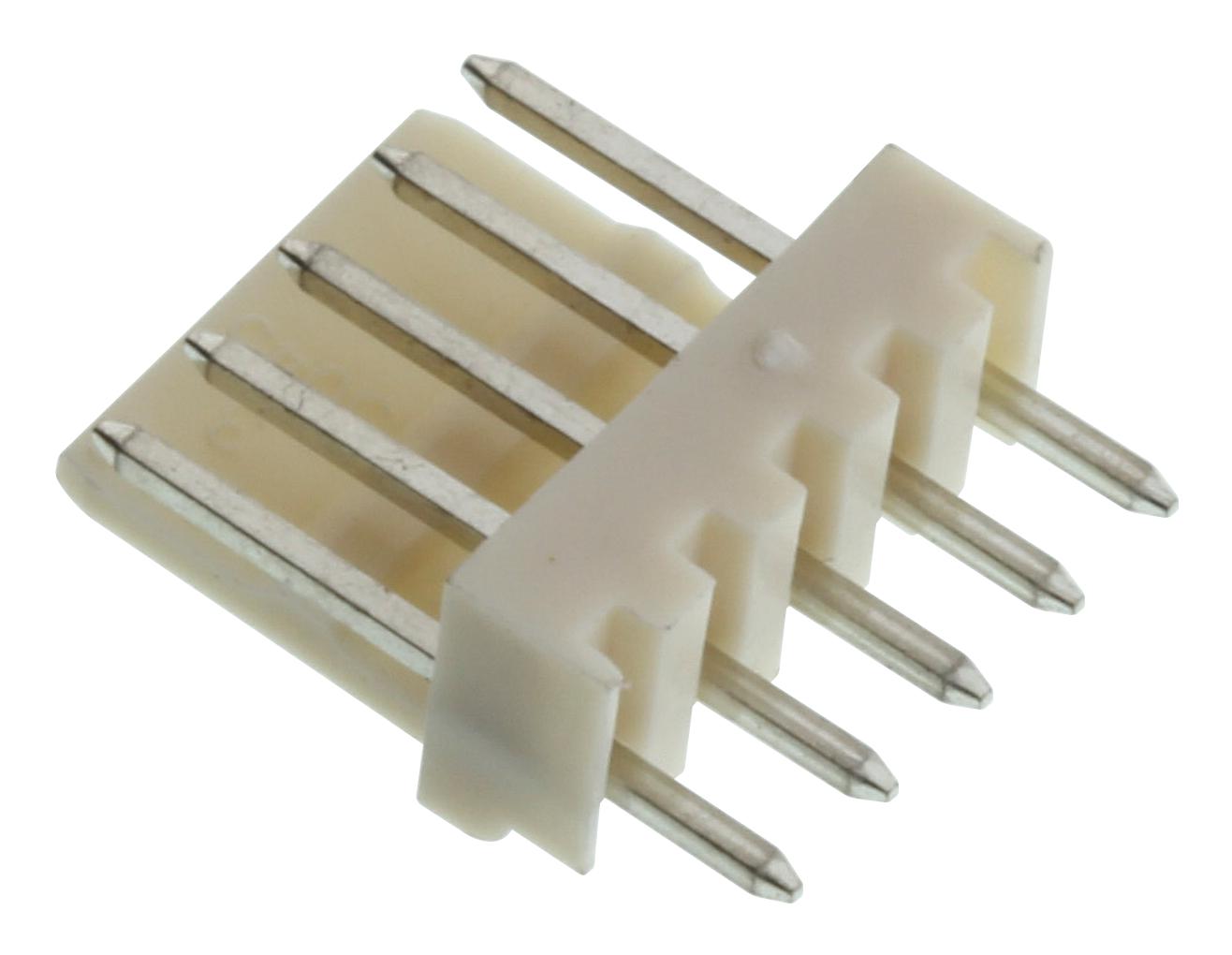

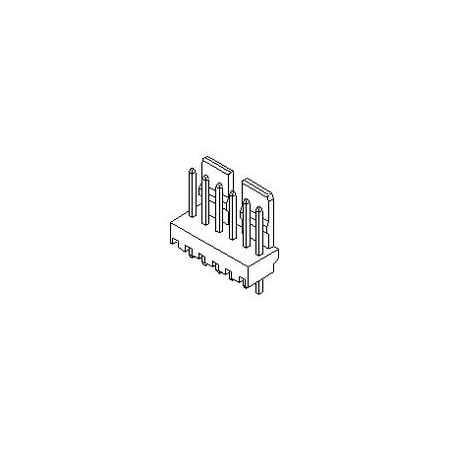

Molex / Waldom 22-04-1051 Connector Headers and PCB Receptacles

Molex / Waldom 22-04-1051 Connector Headers and PCB Receptacles

zoom

Brand: Molex / Waldom
PartNumber: 22-04-1051
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Applications	-
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	200.0?in (5.08?m)
Contact Finish Thicknes.	-
Contact Length - Mating	0.295" (7.49mm)
Contact Length - Post	0.134" (3.40mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	-
Fastening Type	Friction Lock
Features	-
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.461" (11.70mm)
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole
Number of Positions	5
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Overall Contact Length	0.559" (14.20mm)
Package Quantity	1
Part Status	Active
Pitch - Mating	0.098" (2.50mm)
Row Spacing - Mating	-
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	MOLEX 22-04-1051	0.47	150	2485		MOLEX		0.47 @ 150
	Onlinecomponents.com	22-04-1051	0.493	1	12347		MOLEX / WALDOM		0.493 @ 1
	Power and Signal Group	0022041051	0.5015	8000	199		Molex		0.5015 @ 8000
	Component Electronics	701A-5M	0.54	1	2200		Molex		0.54 @ 1
	TME	MX-22-04-1051	0.64	2	1555		MOLEX		0.64 @ 2
	Newark	26M6338	1.28	1	24		MOLEX		1.28 @ 1
	RS Delivers	687-7225	1.4628	1	405		Molex		1.4628 @ 1
	Radwell	22-04-1051	1.6	10	199		MOLEX		1.6 @ 10
	AmazonSC	B07QQDV3H7	71.93	1	199		Molex / Waldom		71.93 @ 1
	Zoro	G4046153	83.6	95	199		Molex		83.6 @ 95
