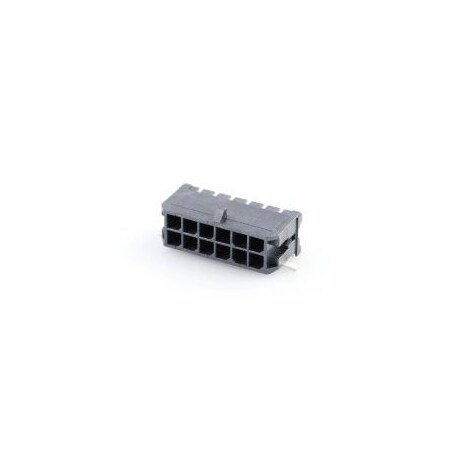

Molex Incorporated 43045-1209 Conn; Rect; Header; 12 Cir; Pcb; Microfit 3.0; Rt Angle; Dual; Smt; W/Tab; Tin
- Brand: Molex
- PartNumber: 43045-1209
- Model: 43045-1209
- PackageQuantity: 1
- Manufacturer: MOLEX
- Label: MOLEX
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 43045-1209 |
| Alternate Part No. | 538-43045-1209 |
| Angle | Right Angle |
| Application | Wire-to-Board |
| Applications | Automotive, General Pur. |
| Base Product Number | 043045 |
| Brand | MOLEX |
| Category | Connectors, Interconnec. |
| Color | Black |
| Connector | socket |
| Connector pinout layout | 2x6 |
| Connector series | Micro-Fit 3.0 |
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thicknes. | 60.0?in (1.52?m) |
| Contact Finish Thicknes. | - |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Contact Material | Brass, Brass Alloy |
| Contact Plating | Tin |
| Contact plating | tinned |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Contacts pitch | 3mm |
| Current Rating | 8.5 A, 5 A |
| Current Rating (Amps) | Varies by Wire Gauge |
| Description | CONN HEADER SMD R/A 12P. |
| Detailed Description | Connector Header Surfac. |
| Digi-Key Part Number | WM1830TR-ND - Tape & Re. |
| Electrical mounting | SMT |
| Family Name | Micro-Fit 3.0 |
| Fastening Type | Locking Ramp |
| Features | Solder Retention |
| For Use With | PCB Right-Angle Header |
| Housing Material | Thermoplastic |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Height | 0.290" (7.37mm) |
| Insulation Material | Liquid Crystal Polymer . |
| Kind of connector | male |
| Locking system | for latch |
| Manufacturer | MOLEX |
| Manufacturer Part No. | 43045-1209 |
| Manufacturer Product Nu. | 0430451209 |
| Manufacturer Standard L. | 10 Weeks |
| Mated Stacking Heights | - |
| Material Flammability R. | UL94 V-0 |
| Maximum current | 5A |
| Mechanical mounting | on PCBs |
| Mfr | MOLEX |
| Mounting Angle | Right |
| Mounting Type | Surface Mount, Right An. |
| Number of Circuits | 12 |
| Number of Contacts | 12 |
| Number of pins | 12 |
| Number of Positions | 12 |
| Number of Positions Loa. | All |
| Number of Rows | 2 |
| Operating Temperature | -40 to +105 ?C, -40?C ~. |
| Orientation | Right Angle |
| Overall Contact Length | - |
| Package | Tape & Reel (TR) |
| Packaging | Reel |
| Part # Aliases | 0430451209 |
| Pin Spacing | 0.118 " |
| Pitch | 3.00 mm (0.118"), 3 mm |
| Pitch - Mating | 0.118" (3.00mm) |
| Plating Material | Tin |
| Primary Type | Soft Shell |
| Product Category | Headers & Wire Housings |
| Product Header | Micro-Fit 3.0? Wire-to-. |
| Product Status | Active |
| Product Type | Header Assemblies |
| Row Spacing | 3 mm |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Series | Micro-Fit 3.0 43045, 43. |
| Shrouding | Shrouded - 4 Wall |
| Spatial orientation | horizontal |
| Special Features | Low-Halogen |
| Style | Board to Cable/Wire |
| Termination | Solder, Surface Mount |
| Termination Style | SMD |
| Tradename | Micro-Fit 3.0 |
| Type | Right Angle Header, Pin. |
| Type of connector | wire-board |
| Voltage Rating | 600V, 600 V |
