- mpnLCA300-12-X
- brandname: Panduit
- manufacturername: Panduit

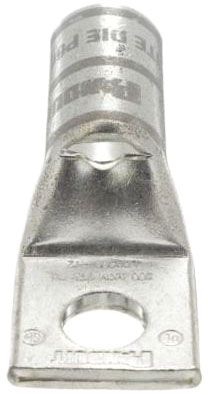

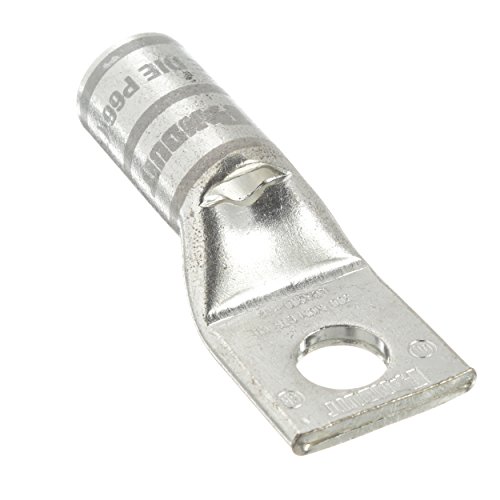

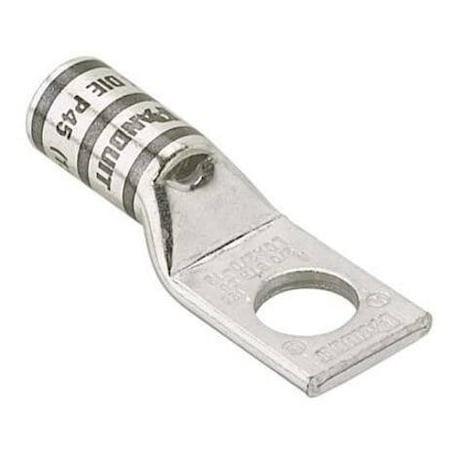

Panduit LCA300-12-X Copper Compression Lug, 1 Hole, 300 kcmil, 1/2-Inch Stud
- Brand: Panduit
- PartNumber: LCA300-12-X
- Model: LCA300-12-X
- Color: White
- Size: Conductor Size/Range 1 3/0 AWG
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 300 |
| Approvals | CSA, UL |
| Base Product Number | LCA300 |
| Brand | Panduit, Pan-Lug? |
| Cable Size | 300 kcmil |
| Catalog Number | LCA300-12-X |
| Category | Connectors, Interconnec. |
| Color | White |
| Color Code | White |
| Color Family | White |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Type | Standard Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Country of Origin | MX - Mexico, Mexico |
| Country of Origin (subj. | Mexico |
| Diameter - Barrel ID | 0.650" (16.51mm) |
| Diameter - Barrel OD | 0.810" (20.57mm) |
| Diameter - Ring ID | 0.530" (13.46mm) |
| Die Color | White |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin-Plated |
| Gross Weight | 1.68 lbs |
| GTIN | 00074983900503 |
| Insulation | Non-Insulated |
| Item | Lug Compression Connect. |
| Item Number | LCA300-12-X |
| Item Type | Copper Compression Conn. |
| Length | 3.05" |
| Length - Overall | 3.040" (77.22mm) |
| Lug Wire Size | 300 kcmil |
| Made in USA | No |
| Manufacturer | Panduit |
| Manufacturer Part Number | LCA300-12-X |
| Material | Copper, Tin-Plated Copp. |
| Material/Composition | Copper |
| Max Conductor Range | 300 kcmil |
| Mfr | Panduit Corp |
| Min Conductor Range | 300 kcmil |
| Mounting | 1.5, 1-Hole |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 1 |
| Package | Bulk |
| Product Series | Pan-Lug Compression |
| Product Status | Active |
| RoHS Compliant | Yes |
| Series | Pan-Lug? |
| Size | 300 kcmil Code |
| Special Features | Consult cable manufactu. |
| Standard | C22.2 No. 65-13, 486A-4. |
| Stud Size | 42.767, 1/2 in |
| Stud/Tab Size | 1/2 Stud |
| Sub Brand | Pan-Lug |
| Tab Thickness | 0.160" (4.06mm) |
| Terminal Style | Single Stud Hole |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| UNSPSC | 39121405 |
| UPC | 074983900503 |
| UPC Code | 074983900503 |
| Width | 1.19" |
| Width - Outer Edges | 1.190" (30.23mm) |
| Wire Gauge | 300MCM (kcmil) |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | cbtcompany.com | LCA300-12-X | 8.6 | 1 | In Stock | | PANDUIT | | 8.6 @ 1 |
 | alldataresource.com | PAN-LCA300-12 | 12.13 | 1 | In Stock | | Panduit | | 12.13 @ 1 |
| Digi-Key | 4564359 | 15.49 | 1 | 23 | | Panduit Corp | | 15.49 @ 1 |
 | Newark | 52AH0807 | 16.5 | 1 | In Stock | | PANDUIT | | 16.5 @ 1 |
| Onlinecomponents.com | LCA300-12-X | 16.53 | 1 | In Stock | | Panduit | | 16.53 @ 1 |
 | Zoro | G0771990 | 17.37 | 1 | In Stock | 26 | Panduit | 1.69 | 17.37 @ 1 |
 | Galco | LCA300-12-X-PNDT | 19.1 | 20 | In Stock | | Panduit | 1.68 | 19.1 @ 20 |
 | Platt.com | 0682246 | 20.33 | 1 | In Stock | | Panduit | | 20.33 @ 1 |
| crescentelectric.com | 177010 | 21.75 | 1 | In Stock | | Panduit | | 21.75 @ 1 |
| Airline Hydraulics | PANDUIT LCA300-12-X | 23.03 | 1 | In Stock | | Panduit Corp | | 23.03 @ 1 |
| us.rs-online.com | 71263420 | 26.99 | 1 | 15 | | Panduit | | 26.99 @ 1 |
 | Carlton Bates Company | 07498390050 | 171.6 | 1 | In Stock | | PANDUIT | | 171.6 @ 1 |
 | gordonelectricsupply.com | LCA300-12-X | 402.0 | 1 | In Stock | 12 | PANDUIT | | 402.0 @ 1 |
 | turtle.com | PAN LCA300-12-X | 2251.29 | 1 | In Stock | | Panduit | | 2251.29 @ 1 |
| Graybar | 88198147 | 2495.2256 | 1 | In Stock | | Panduit | | 2495.2256 @ 1 |
