Parker Hannifin 1.75DSR03.00

B01MCXOS5W

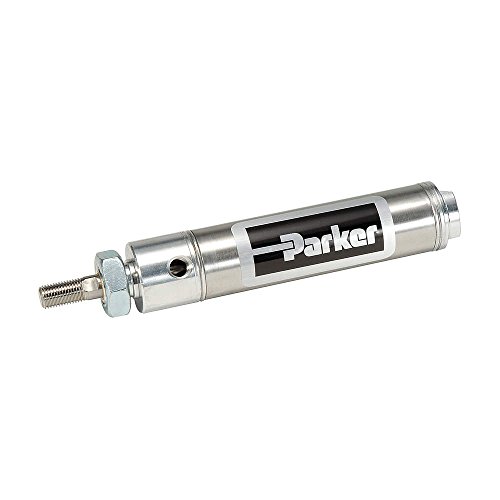

Parker Hannifin - 1.75DSR03.00 - 1-3/4 Bore Dia. with 3 Stroke Stainless Steel , Nose Mounted Air Cylinder

Parker Hannifin - 1.75DSR03.00 - 1-3/4 Bore Dia. with 3 Stroke Stainless Steel , Nose Mounted Air Cylinderzoom

Attributes

Key Value
Air Cylinder Bore Dia.1 3/4 in
Air Cylinder MountNose
Air Cylinder TypeRound Body
Body Material304 stainless steel
Bore Dia.1 3/4 in
Country of Origin (subj.United States
Cushion TypeNone
Cylinder ActionDouble Acting
Cylinder TypeRound Non-Repairable
Dimension A22/25 in
Dimension B1.031 in
Dimension C0.31 in
Dimension Cc0.5 in
Dimension D0.4375 in
Dimension E1.25 in
Dimension J0.25 in
Dimension Kk1/2"-20 UNF
Dimension N11"-14
End Cap MaterialAluminum
FeaturesNon-Switch Ready
FinishSilver
ItemAir Cylinder
Magnetic PistonNo
Max. Pressure250 psi
MountNose
Nose Mount Thread1"-14
Overall Length8.6 in
Piston MaterialAluminum
Piston Rod MaterialChrome Plated Steel
Port Size1/4 in FNPT
Rod Dia.0.5 in
Rod Thread Length0.88 in
Rod Thread Size1/2-20 UNF
Single Acting/Double Ac.Double Acting
Stroke3 in
Temp. Range-10 Degrees to 165 Deg.
Tube MaterialStainless Steel

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG617534649.441In Stock26Parker1.6149.44 @ 1
thumbzoomRaptor SuppliesAJ2EKY144.1158031In StockPARKER144.115803 @ 1
