Schneider METSEPM2220

mpnMETSEPM2220
brandname: Schneider Electric
manufacturername: Schneider Electric

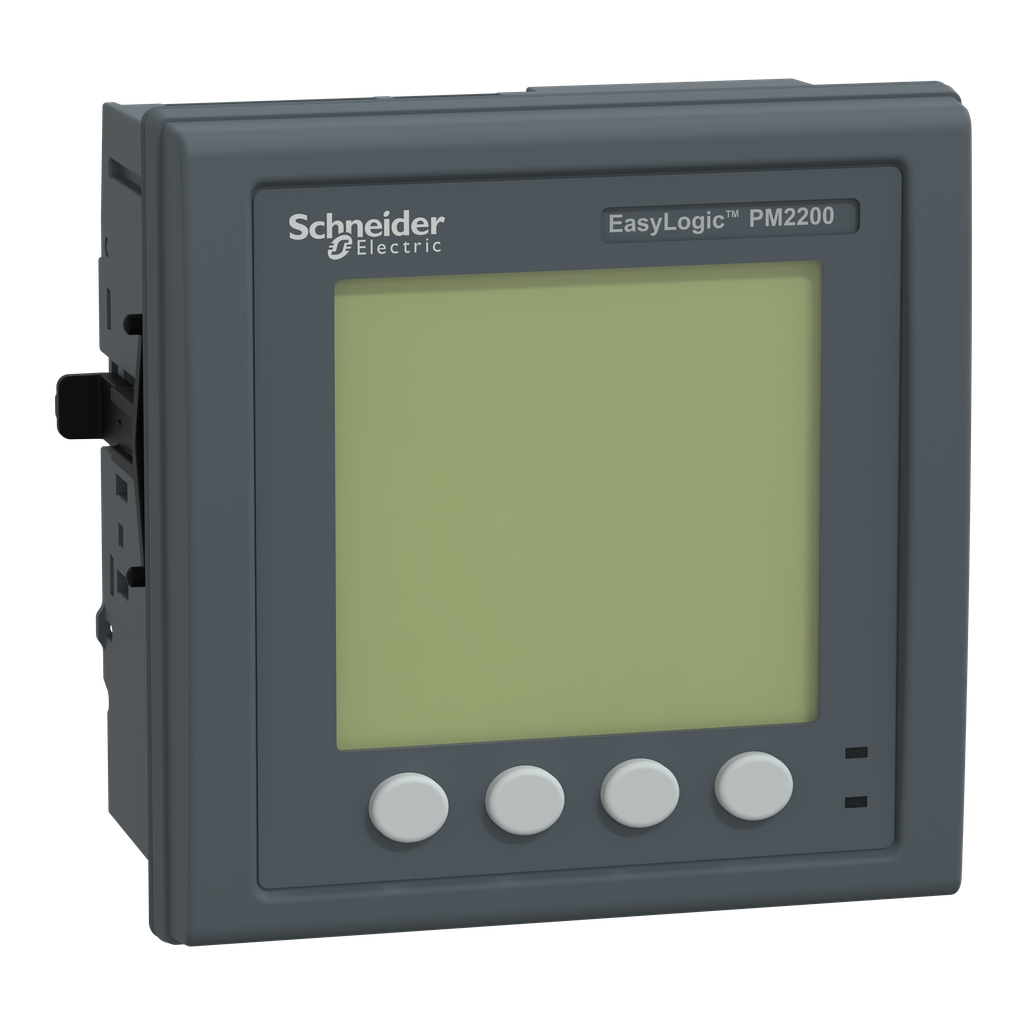

Schneider METSEPM2220 EasyLogic PM2220 - Power & Energy meter - up to 15th H - LED - RS485 - class 1

Brand: Schneider
PartNumber: METSEPM2220
Model: METSEPM2220
Manufacturer: Schneider
Label: Schneider

Attributes

Key	Value
[Us] Rated Supply Volta.	44...277 V AC 45...65 H.
Accuracy Class	class 1 active energy I.
Ambient Air Temperature.	-10-60 ?C
Ambient Air Temperature.	-25-70 ?C
Brand	Schneider Electric
Catalog Number	METSEPM2220
China Rohs Regulation	X
Circularity Profile	ENVEOLI1510004
Communication Port Prot.	Modbus RTU 4800 bps, 96.
Communication Port Supp.	screw terminal block RS.
Communication Port Type	RS485
Communication Service	remote monitoring
Compatibility Code	PM2220
Connections - Terminals	current transformer scr.
Control Type	4 x button
Country of Origin	United States
Cybersecurity	enable/disable communic.
Data Recording	time stamping \|\| min/ma.
Depth	total 76.09 mm \|\| embed.
Device Application	power monitoring \|\| sub.
Device Short Name	PM2220
Display Colour	monochrome
Display Resolution	128 x 128 pixels
Display Type	Backlit LCD
Electrical Insulation C.	double insulation \|\| cl.
Electromagnetic Compati.	electrostatic discharge.
Environmental Disclosure	ENVPEP1510004
Eu Rohs Directive	Compliant
Flame Retardance	V-0 conforming to UL 94
Frequency Measurement R.	45-65 Hz
Function Available	real time clock
Gross Weight	0 lbs
Height	96 mm
Information Displayed	demand current past val.
Ip Degree Of Protection	front IP54 IEC 60529 \|\|.
Line Rated Current	1 A \|\| 5 A
Local Signalling	Red LED output signal 1.
Made in USA	Yes
Manufacturer	Schneider Electric
Material	polycarbonate
Maximum Power Consumpti.	6 VA 277 V AC
Maximum Power Consumpti.	3.3 W power lines (AC)).
Measurement Accuracy	apparent power +/- 1 % .
Measurement Category	category III 480-480 V .
Measurement Current	5-6000 mA
Measurement Voltage	35-480 V AC 50/60 Hz be.
Mercury Free	Yes
Metering Type	active, reactive, appar.
Mounting Mode	clip-on
Mounting Position	vertical
Mounting Support	framework
Net Weight	300 g
Network Frequency	50 Hz \|\| 60 Hz
Number Of Inputs	0
Number Of Outputs	0
Overvoltage Category	III
Pollution Degree	2
Power Quality Analysis	total harmonic distorti.
Product Certifications	CE IEC 61010-1 \|\| cULus.
Product Name	EasyLogic PM2200
Product Or Component Ty.	power meter
Provided Equipment	1 x Installation guide
Range	EasyLogic
Reach Regulation	Reference contains Subs.
Refresh Time	configurable from 1 to .
Relative Humidity	5-95 % 50-50 ?C
Rohs Exemption Informat.	Yes
Sampling Rate	64 samples/cycle
Series	PM2000 Series
Service Life	7 year(s)
Sustainable Offer Status	Green Premium product
Tamperproof Of Settings	protected by access code
Type Of Measurement	apparent power min/max,.
UPC	606480800170
User Language	Spanish \|\| French \|\| en.
Width	96 mm

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
industrialrefrigerationparts.com	METSEPM2220	138.61	1	In Stock		Schneider Electric		138.61 @ 1
Nex Instrument	METSEPM2220	253.0	1	In Stock	31	Schneider Electric		253.0 @ 1
us.rs-online.com	72454375	362.05	1	In Stock		Schneider Electric		362.05 @ 1
Galco	METSEPM2220-SQD	440.42	1	In Stock		Square D		440.42 @ 1
gordonelectricsupply.com	METSEPM2220	447.0	1	In Stock	10	SQUARE D		447.0 @ 1
mayerelectric.com	SQDMETSEPM2220	599.22	1	In Stock		SQUARE D	0.66	599.22 @ 1
crescentelectric.com	1289504	646.24	1	In Stock		Schneider Electric		646.24 @ 1
