TE Connectivity 7-1393236-4

B010IIZ2EW

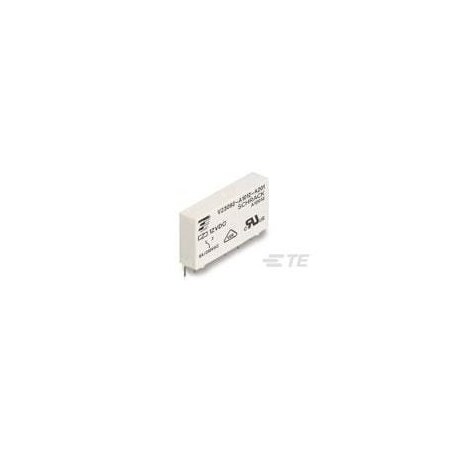

TE Connectivity Part Number 7-1393236-4

TE Connectivity Part Number 7-1393236-4zoom

Attributes

Key Value
Alternate Part No.655-V23092B1024A301
Base Product NumberV23092
BrandTE Connectivity
CategoryRelays
Coil Current7 mA
Coil Insulation-
Coil Magnetic SystemMonostable, DC
Coil Power Rating Class150 ? 200
Coil Power Rating DC170
Coil Resistance3390, 3.4 kOhms
Coil TypeNon Latching
Coil Voltage24VDC
Coil Voltage Rating24
Contact Arrangement1 Form C (CO)
Contact Current Class5 ? 10, 16
Contact Current Rating .6
Contact FormSPDT (1 Form C)
Contact Limiting Breaki.6
Contact Limiting Contin.10
Contact Limiting Making.10
Contact Limiting Short-.6
Contact MaterialSilver Tin Oxide (AgSnO.
Contact Number of Poles1
Contact Plating MaterialGold
Contact Rating (Current)6 A
Contact Switching Load .100mA @ 12V
Contact Switching Volta.400
Contact Voltage Rating250
Country of Origin (subj.Mexico
Environmental Ambient T.85??C?[?185??F?]
Environmental Ambient T.70 ? 85
Environmental Category .RTIII
Features-
Insulation Creepage Bet.8?mm?[?.315?in?]
Insulation Creepage Cla.5.5 ? 8
Insulation Initial Diel.3500 ? 4000
Insulation Initial Diel.1000
Insulation Special Feat.Tracking Index of Relay.
Length Class (Mechanica.25 ? 30
ManufacturerTE Connectivity
Manufacturer Part No.V23092-B1024-A301
MfrTE Connectivity Potter .
Mounting TypeThrough Hole
Must Operate Voltage16.8 VDC
Must Release Voltage1.2 VDC
Operate Time12 ms
Operating Temperature-40?C ~ 85?C
PackageTube
Packaging MethodBox & Tube, Tube
Part # Aliases7-1393236-4
Power Relay TypeStandard
Product CategoryGeneral Purpose Relays
Product Length28
Product StatusActive
Product Weight6?g?[?.2116?oz?]
Product Width5?mm?[?.197?in?]
Relay Mounting TypePrinted Circuit Board
Relay TypeGeneral Purpose
Release Time5 ms
Seal RatingSealed - Fully
SeriesSNR, SCHRACK
Switching Voltage400VAC - Max
Terminal TypePCB-THT
Termination StylePC Pin
Width Class (Mechanical)0 ? 6

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comV23092-B1024-A3015.6120221TE Connectivity / AMP5.61 @ 25
thumbzoomNewark03P25806.42125TE CONNECTIVITY6.42 @ 25
thumbzoomZoroG6010347606.85100025Te Connectivity6.85 @ 1000
TE Connectivity7-1393236-47.800451546TE Connectivity (TE)7.80045 @ 25
Digi-Key20537758.1035125TE Connectivity Potter & Brumfield Relays8.1035 @ 25
thumbzoomswatee.comV23092-B1024-A3018.73125TE Connectivity8.73 @ 25
AmazonSCB010IIZ2EW12.41125TE Connectivity12.41 @ 25
