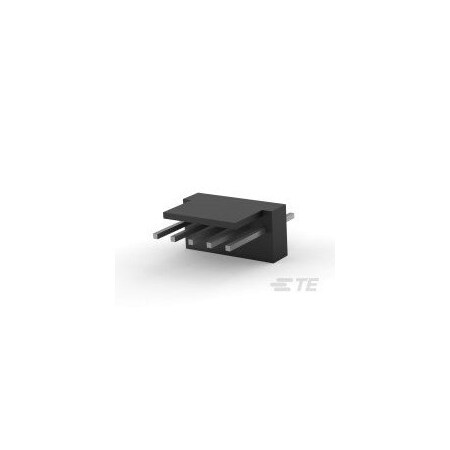

TE Connectivity 3-647047-5

B00KSPSXGU

TE Connectivity Part Number 3-647047-5

TE Connectivity Part Number 3-647047-5zoom

Attributes

Key Value
ApplicationsGeneral Purpose
Base Product Number647047
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Mating0.290" (7.37mm)
Contact Length - Post0.135" (3.43mm)
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.China
Current Rating (Amps)Varies by Wire Gauge
DescriptionCONN HEADER VERT 5POS 2.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA113581-ND
Fastening Type-
Features-
Ingress Protection-
Insulation ColorBlack
Insulation Height0.347" (8.81mm)
Insulation MaterialPolyamide (PA46), Nylon.
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.3-647047-5
Manufacturer Standard L.20 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Positions5
Number of Positions Loa.All
Number of Rows1
Operating Temperature-55?C ~ 105?C
Overall Contact Length0.550" (13.97mm)
PackageBulk
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Row Spacing - Mating-
SeriesMTA-100
ShroudingShrouded - 1 Wall
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 3-647047-51.3340500TE CONNECTIVITY/AMP BRAND1.33 @ 40
Newark18R25701.6200062AMP - TE CONNECTIVITY1.6 @ 1000
thumbzoomZoroG8009284261.87100062110Te Connectivity1.87 @ 1000
HotendaH13013852.21162TE Connectivity AMP Connectors2.21 @ 1
thumbzoomDigi-Key23089252.49640500TE Connectivity AMP Connectors2.496 @ 40
