Walter AG F4138.UT28.031.Z02.33

B00IRYS95O

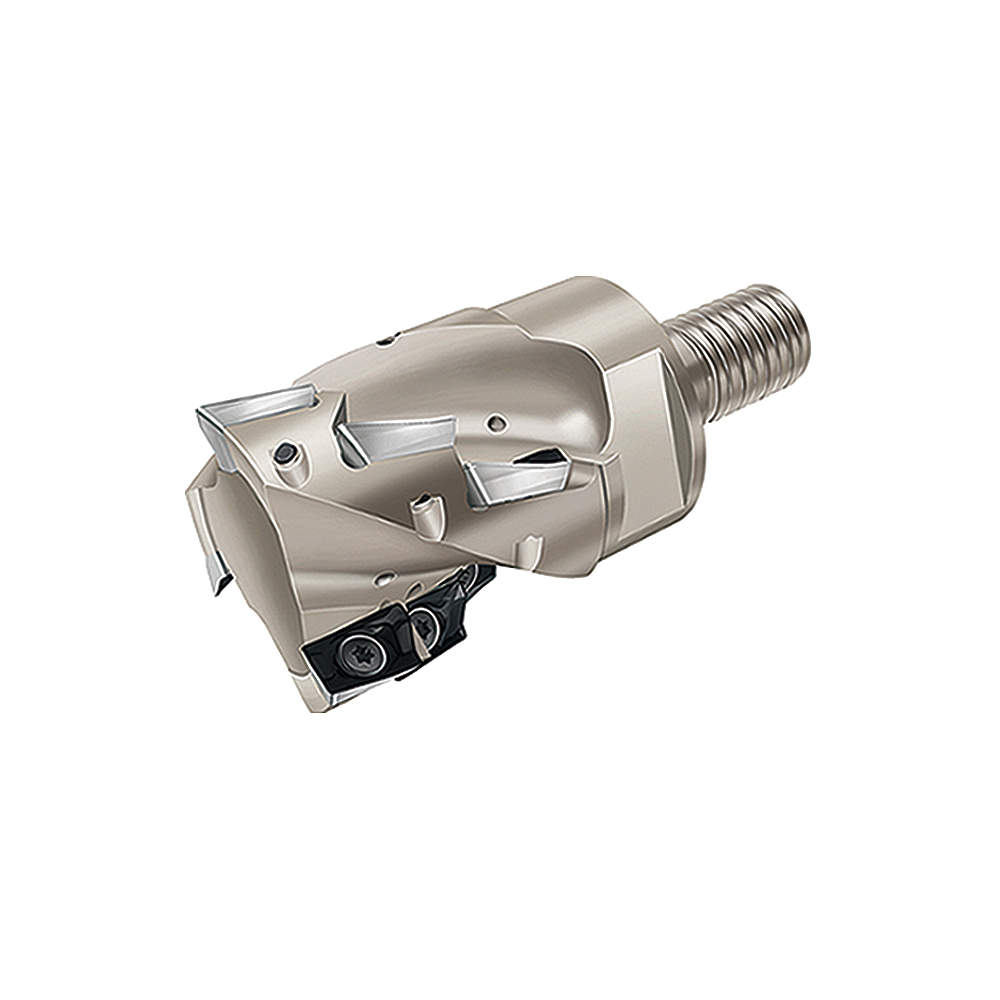

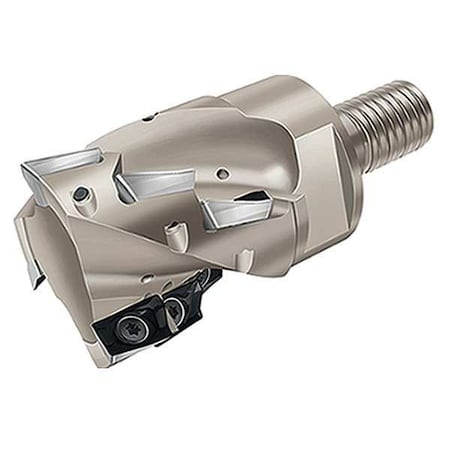

Walter AG - F4138.UT28.031.Z02.33 - Indexable Square Shoulder End Mill, Threaded, Overall Length 78.00mm

Walter AG - F4138.UT28.031.Z02.33 - Indexable Square Shoulder End Mill, Threaded, Overall Length 78.00mmzoom

Attributes

Key Value
Compatible HardwareFS1457 T9IP Clamping Sc.
Connection SizeT28
Cutter Dia.1.250"
Cutting ApplicationPocket Milling, Ramping.
Cutting Edge TypeCarbide
Cutting Length1.300"
Depth of Cut1.2990 in
Diameter1.250"
Head Projection Length50.00mm
Insert Cutting Edge Len.33.00mm
Insert ScrewFS1457 Torx 9 IP
ISO NumberF4138.UT28.031.Z02.33
ItemIndexable Square Should.
Left/Right HandRight
MaterialAll ISO
Max. Cutting Dia.1 1/4 in
Min. Cutting Dia.1-1/4 in
NomenclatureF4138.UT28.031.Z02.33
Number of Inserts20
Number of Inserts Requi.2
Overall Length78.00mm
Overall Length (In.)3.071
SeriesF4138
Shank Dia. (In.)1.102

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG8034144872.991In StockWalter2.0872.99 @ 1
thumbzoomRaptor SuppliesAD6DFM1219.5428311In StockWALTER1219.542831 @ 1
