Walter Tools CNMM160616-NRR WPP10S

B017BIYBTO

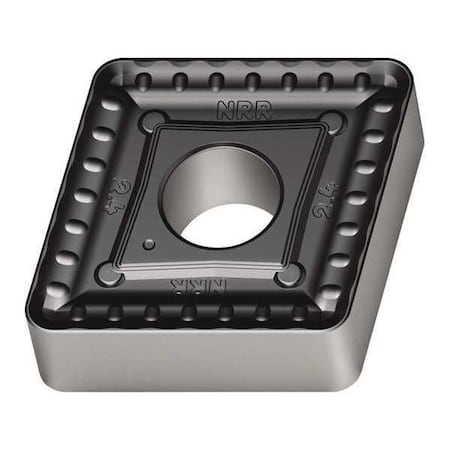

Walter Tools CNMM160616-NRR WPP10S Carbide Tiger-Tec Negative Indexable Turning Insert, 0.063" Corner Radius, 0.625" IC, 0.250" Thick, 0.079" - 0.394" Depth of Cut (Pack of 10)

Walter Tools CNMM160616-NRR WPP10S Carbide Tiger-Tec Negative Indexable Turning Insert, 0.063" Corner Radius, 0.625" IC, 0.250" Thick, 0.079" - 0.394" Depth of Cut (Pack of 10)zoom

Attributes

Key Value
ANSI CodeCNMM544-NRR WPP10S
ANSI NumberCNMM543
Cast Iron (K) Compatibi.Yes
Chip-BreakerYes
Chip-Breaker CodeNRR
Clearance Angle0 Degrees
CoatingCVD
Corner Radius4
Country of Origin (subj.Germany
Cutting ApplicationTurning
Cutting DirectionNeutral
Cutting Edge Length16.12mm
Depth of Cut2.00 to 10.00mm
Finish - MachiningTiCN+Al2O3+TiCN
For Use WithToolholders, Boring Bars
GradeWPP10S
Hardened (H) Compatibil.No
Included Angle80 Degrees
Inscribed Circle5
Insert ApplicationRoughing
Insert CodeCNMM544
Insert Holding TypeStraight Hole
Insert MaterialCarbide
Insert ShapeDiamond
Insert Size544
Insert StyleCNMM
Insert Thickness0.2500"
ISO NumberCNMM160616-NRR WPP10S
ItemDiamond Turning Insert
Manufacturer GradeWPP10S
MaterialCarbide
Material - MachiningCarbide
Measurement SystemFractional Inch
Mounting Hole Dia.0.250"
Mounting StyleClamp
No. of Edges2
Non Ferrous (N) Compati.No
Nose Radius0.0630"
Number of Cutting Edges2
Primary Material Applic.Steel
Primary Material Applic.P
RakeNegative
Relief Angle0 Degrees
ShapeRhombic
Stainless (M) Compatibi.No
Steel (P) CompatibilityYes
Super Alloy (S) Compati.No
Thickness4
Workpiece CompatibilityCast Iron (K), Hardened.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Grainger53UU9120.2510108WALTER VALENITE20.25 @ 10
thumbzoomZoroG792015123.01010Walter Valenite0.4623.0 @ 10
