- mpnDNGG332FS
- brandname: WIDIA
- manufacturername: WIDIA

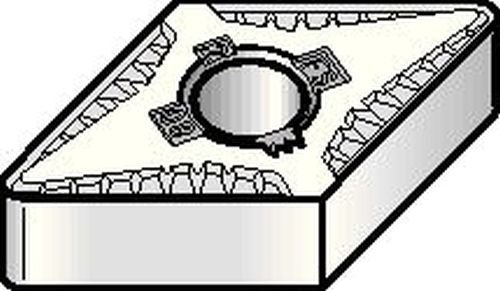

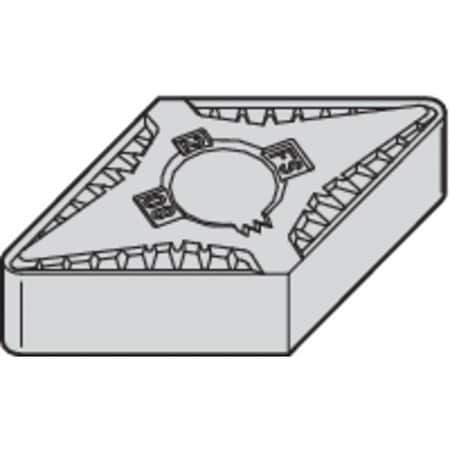

WIDIA DNGG332FS WS10PT Victory DNGG-FS High Performance Turning Inserts, Carbide, 0.031" / 0.8mm Radius, Finishing High-Temp, Grade WS10PT (Pack of 5)
- Brand: WIDIA
- PartNumber: 5548672
- Model: 5548672
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: WIDIA Products Group
- Label: WIDIA Products Group
Attributes
| Key | Value |
|---|
| ANSI Code | DNGG332FS |
| Chip-Breaker | Yes, FS |
| Chip-Breaker Code | FS |
| Chip-Breaker Style | On Two Sides |
| Clearance Angle | 0 Degrees |
| Coolant Fed | Non-Coolant Through |
| Corner Radius | 2, 1/32 in |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 11.63mm |
| Finish - Machining | Bright (Uncoated) |
| For Use With | Toolholders, Boring Bars |
| Grade | WU10HT |
| Hardened (H) Compatibil. | No |
| Included Angle | 55 Degrees |
| Inscribed Circle | 3, 0.375" |
| Insert Application | Finishing |
| Insert Holding Type | Straight Hole |
| Insert Material | Carbide |
| Insert Shape | Diamond |
| Insert Size | 332 |
| Insert Style | DNGG |
| ISO Number | DNGG110408FS |
| Item | Turning Insert, Diamond. |
| Manufacturer Grade | WU10HT |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.150" |
| No. of Edges | 4 |
| Non Ferrous (N) Compati. | Yes |
| Nose Radius | 0.031" |
| Number of Cutting Edges | 4 |
| Primary Material Applic. | Nickel, Stainless Steel. |
| Primary Material Applic. | M, S |
| Rake | Negative |
| Seat Size | 332 |
| Secondary Material Appl. | Aluminum, Brass, Bronze. |
| Secondary Material Appl. | N, P |
| Shape | Rhombic |
| Steel (P) Compatibility | Yes |
| Thickness | 3/16 in |
| Workpiece Compatibility | Nonferrous (N), Stainle. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | WID5549949 | 20.30079382 | 1 | 5 | | WIDIA | 0.171 | 20.30079382 @ 5 |
 | Zoro | G2817241 | 65.45 | 1 | 20 | | Widia | 0.17 | 65.45 @ 5 |
