- mpnCHM565A
- brandname: Baldor-Reliance
- manufacturername: Baldor-Reliance

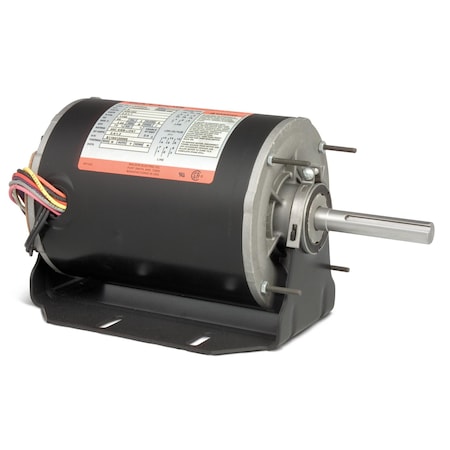

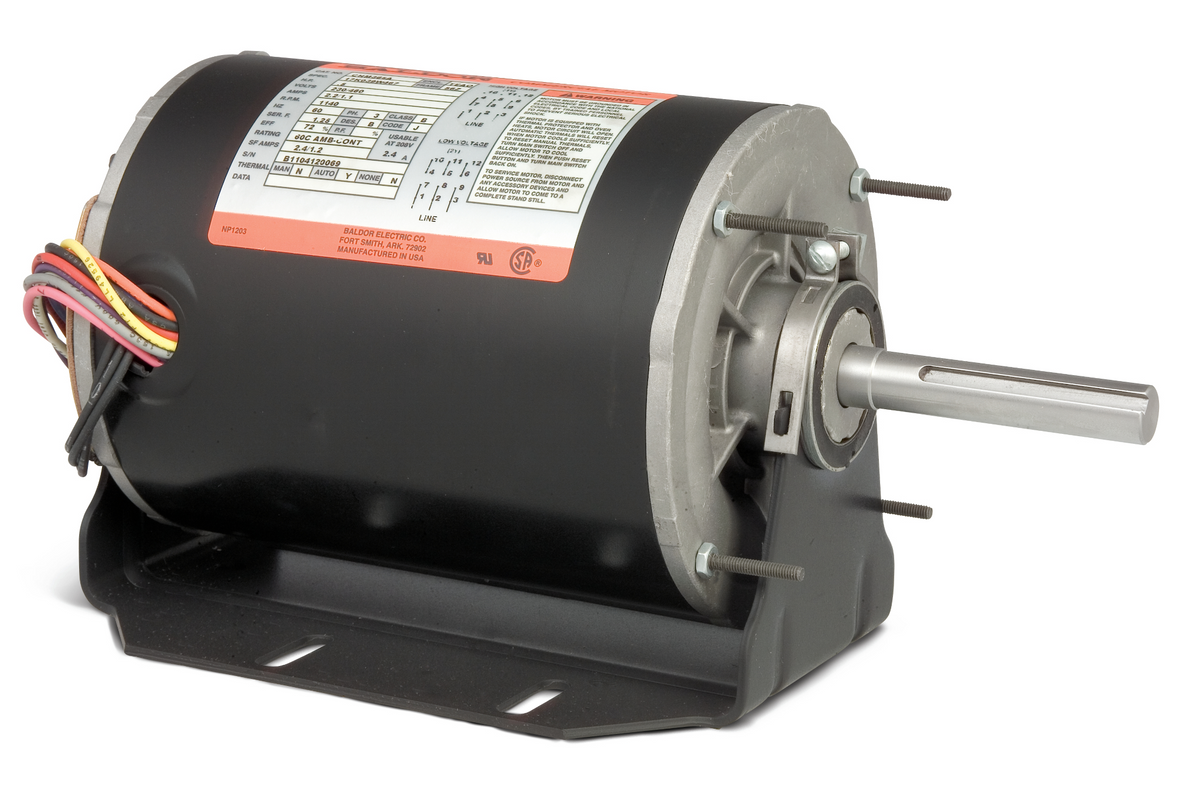

Baldor CHM565A Commercial Duty Motor


- Brand: Baldor
- PartNumber: CHM565A
- Manufacturer: Baldor
- Label: Baldor
Attributes
Key | Value |
---|
Amps | 1.8/3.6/3.7 |
Application | Farm Duty |
Bearing Type | Ball |
Bearings | Ball |
Construction | Cast Iron |
Country of Origin (subj. | United States |
Drive End Flange Type | Standard |
Duty Cycle | Continuous |
Efficiency | 74.0% |
Enclosure | TEAO, Totally Enclosed . |
Enclosure Material | Steel |
Enclosure Type | TEAO (Totally Enclosed . |
Estimated Weight | 40.00 |
Family Series | Baldor Motors, CH Series |
FL Amps | 3.7-3.6/1.8 |
FL Efficiency | 74 |
Frame | 56 |
Frame Type | 56 |
Gross Weight | 39 lbs |
Hertz | 60 |
Horsepower | 1 hp |
Horsepower Rating | 1 hp |
HP | 1 |
Hz | 60 |
Insulation Class | F |
Inverter Duty | No |
Item Number | CHM565A |
Manufacturer | Baldor, Baldor Reliance |
Manufacturer Model # | 35X463L465G1 |
Manufacturer Part Number | CHM565A |
Maximum Ambient Tempera. | 40? C |
Mounting | Resilient, Cradle |
Mounting Type | Foot Mount, Rigid, Resi. |
NEMA Frame | 56 |
Net Weight | 39 lbs |
Nominal Voltage | 208 VAC, 240 VAC, 415 V. |
Number of Poles | 6 |
Number of Speeds | 1 |
Overall Length | 12.42", 13.04 " |
Overload Protection | Automatic |
Part Number | CHM565A |
Phase | 3, 3 Phase |
Product Series | CH |
Product Type | Fractional HP (HVAC), T. |
Rotation | Reversible |
RPM | 1,200 RPM, 1140, 1140 R. |
Series | HV3 Series |
Service Factor | 1.15 |
Shaft Diameter | 0.625" |
Ship Weight | 40 lbs. |
Special Features | Automatic Thermal Overl. |
Speed (RPM) | 1140 |
Supply Voltage | 208-230/460 VAC |
Thermal Protection | Automatic |
UPC Code | 781568748183 |
Voltage | 208V, 230V, 460V |
Voltage (AC) | 208-230 VAC, 460 VAC |
Volts | 208-230/460 |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
  | emotorpro.com | CHM565A | 580.7 | 1 | In Stock | | Baldor | 40.0 | 580.7 @ 1 |
| factorysupplyoutlet.com | EY32IS | 636.12 | 1 | In Stock | | Baldor-Reliance | | 636.12 @ 1 |
  | Galco | CHM565A-BLDR | 638.29 | 1 | In Stock | | Baldor | 39.0 | 638.29 @ 1 |
  | Walker Industrial | CHM565A | 642.55 | 1 | In Stock | | Baldor | | 642.55 @ 1 |
| motorsandcontrol.com | CHM565A | 669.31 | 1 | In Stock | | Baldor Reliance | 40.0 | 669.31 @ 1 |
| us.rs-online.com | 71933958 | 742.52 | 1 | In Stock | | Baldor-Reliance | | 742.52 @ 1 |
  | pumpproducts.com | CHM565A | 760.83 | 1 | In Stock | | Baldor | | 760.83 @ 1 |
  | cbtcompany.com | CHM565A | 761.42 | 1 | In Stock | | Baldor Reliance | | 761.42 @ 1 |
| kirbyrisk.com | 3129155 | 842.51 | 1 | In Stock | | Baldor | | 842.51 @ 1 |
  | Zoro | G5524929 | 876.97 | 1 | In Stock | | Baldor-Reliance | | 876.97 @ 1 |
| motionindustries.com | 03932976 | 926.77 | 1 | In Stock | | Baldor-Reliance | | 926.77 @ 1 |
  | Raptor Supplies | AJ6QDD | 1913.79708 | 1 | In Stock | | BALDOR MOTOR | | 1913.79708 @ 1 |
