- mpn49412
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

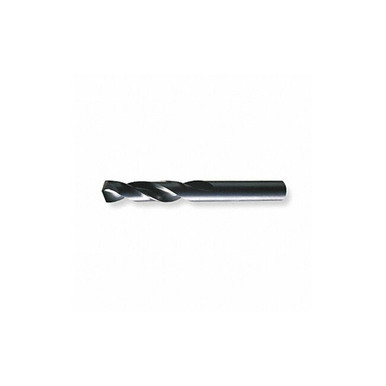

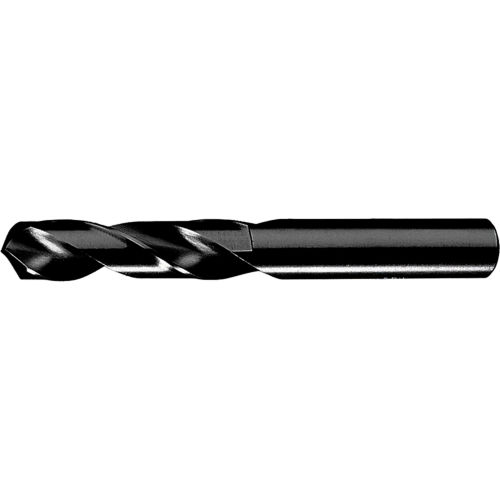

Chicago-Latrobe 49412 159 Heavy Duty Screw Machine Drill, 42 Drill - Wire, 0.0935 in Drill - Decimal Inch, HSS, Black Steam Oxide (Each)
- Brand: Chicago Latrobe
- PartNumber: 49412
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Application | For Alloy, Carbon And T. |
| Brand | Chicago-Latrobe |
| Current Stock | 60 |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.0935 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.0935", 0.0935 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | #42 |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0194 in |
| Drill Size - Decimal In. | 0.0935 in |
| Drill Size - Wire | #42 |
| Drill Size System | Wire |
| Drill Style | Screw Machine Drill |
| Finish | Black Steam Oxide |
| Flute Length | 0.7500", 3/4 in |
| Flute Length (Metric) | 19.05mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| Material | HSS |
| Maximum Drilling Depth | 3/4 in |
| Measurement System | Imperial |
| Mpn | 49412 |
| Number of Flutes | 2 |
| Overall Length | 1.7500", 1 3/4 in, 1-3/. |
| Overall Length (Metric) | 44.45mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split point, Split |
| Series | 159 |
| Shank Configuration | Straight |
| Shank Dia. | 3/32 in |
| Shank Length | 1.0000", 1 in |
| Shank Length (Metric) | 25.40mm |
| Shank Size | 0.0935", 0.0935, 0.0935. |
| Shank Size (Metric) | 2.37mm |
| Shank Type | Straight |
| SKU | ZO-G2496182 |
| Style | 159 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | #42 |
| Type | Heavy Duty |
| UPC | 662355494127 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6130369 | 1.21 | 30 | 82 | | Chicago-Latrobe | | 1.21 @ 30 |
 | heavydutydepot.com | 49412 | 1.24 | 81 | 82 | | Chicago-Latrobe | | 1.24 @ 81 |
 | Megadepot | 49412 | 1.57 | 1 | 82 | | Chicago-Latrobe | | 1.57 @ 1 |
 | usmegastore.com | 49412 | 1.61 | 1 | 62 | | Chicago-Latrobe | | 1.61 @ 1 |
 | Zoro | G2496182 | 1.65 | 1 | 35 | | Chicago-Latrobe | 0.04 | 1.65 @ 1 |
 | sustainablesupply.com | C1464414 | 1.88 | 1 | 82 | | Chicago-Latrobe | 0.01 | 1.88 @ 1 |
 | Raptor Supplies | AB2HKG | 2.01123 | 1 | 82 | | CHICAGO-LATROBE | | 2.01123 @ 1 |
 | Guardian | 81383424 | 2.9 | 1 | 82 | | Chicago-Latrobe | | 2.9 @ 1 |
 | simsupply.com | ZO-G2496182 | 8.56 | 1 | 82 | | Chicago-Latrobe | | 8.56 @ 1 |
 | National Supply Network | 81383424 | 12.17 | 12 | 45 | | Chicago-Latrobe | | 12.17 @ 12 |
 | Global Industrial | WBB2547422 | 14.76 | 1 | 82 | | Chicago-Latrobe | | 14.76 @ 1 |
