CAI - DAYTON 4VAG8

B07C7B5LR2

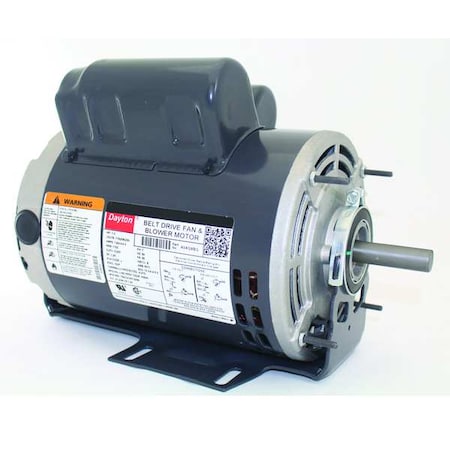

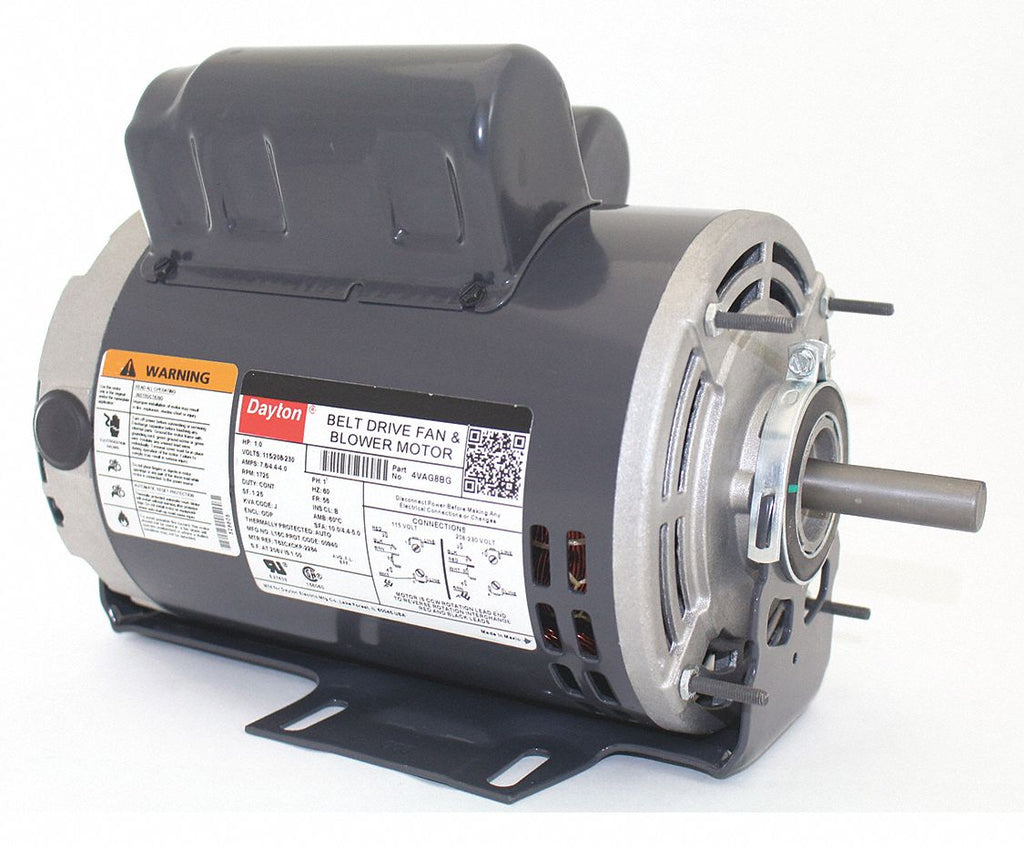

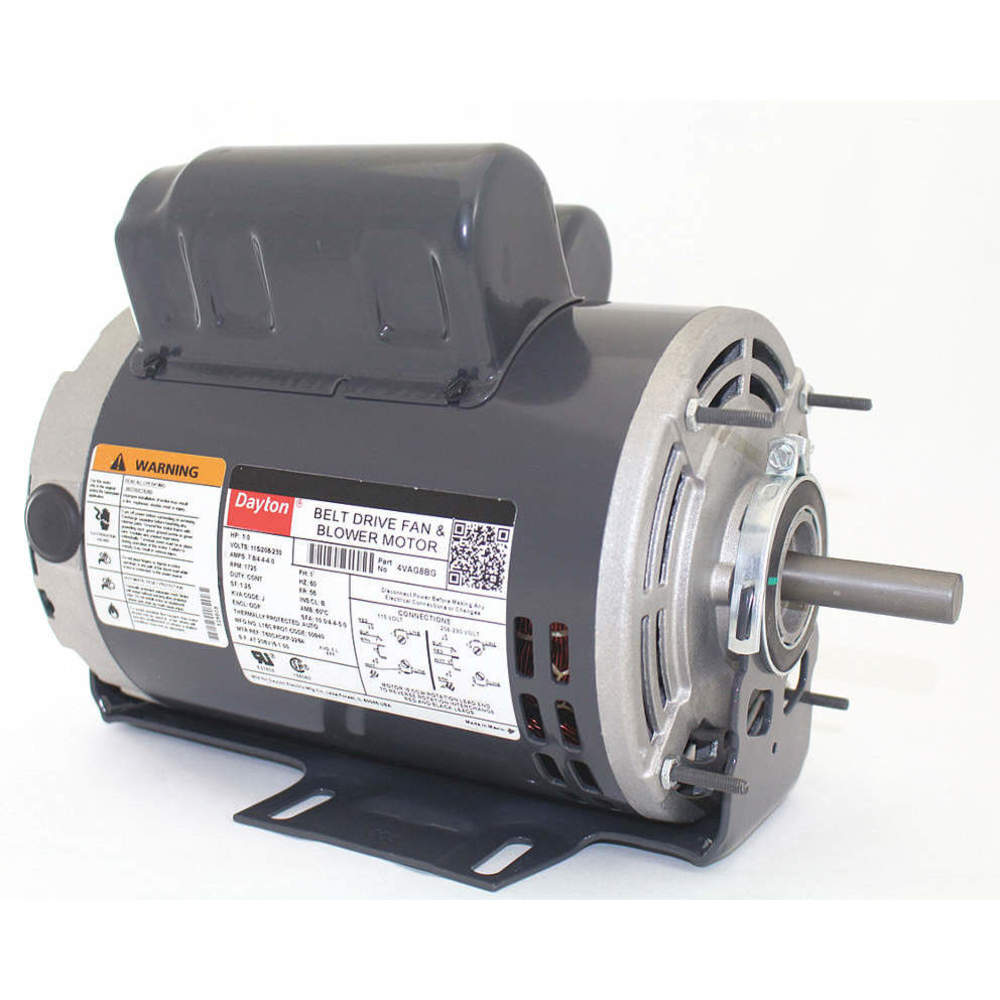

1 HP Belt Drive Motor, Capacitor-Start/Run, 1725 Nameplate RPM, 115/208-230 Voltage, Frame 56

1 HP Belt Drive Motor, Capacitor-Start/Run, 1725 Nameplate RPM, 115/208-230 Voltage, Frame 56zoom

Attributes

Key Value
Amps11.0/5.5-5.5
BearingsBall
Body Dia.6 1/2 in
BrandDayton
CapacitorStart and Run Capacitor.
ColorGrey
Cross Reference4UB98
Current Stock22
Duty CycleContinuous
Efficiency74%
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof)
Frame56
Full Load Amps7.8/4.4-4.0
HP1
Hz60
Ins. ClassB
Insulation ClassB
International ShippingNo
ItemBelt Drive Motor
Lead TimeExpected to ship in 1-2.
Length Less Shaft10 1/2 in
Max. Ambient Temp.60 Degrees C
Maximum Ambient Tempera.60? C
Motor ApplicationHVAC/R
Motor BearingsBall
Motor DesignCapacitor-Start/Run
Motor Diameter6-1/2"
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialRolled Steel
Motor Mounting PositionAll Angle
Motor Mounting TypeCradle Base
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Shell Length9-1/2"
Motor Sub ApplicationBelt Drive Fan/Blower
Motor Thermal ProtectionAuto
MountingCradle
Mounting Stud Pattern4-1/8 in x 4-1/8 in
Mpn4VAG8
Nameplate RPM1,725
No. of Speeds1
Nominal Efficiency83.3 %
Number of Speeds1
Overall Length12 3/8 in, 11-3/8"
Phase1, Single
Product TypeCapacitor Start, Capaci.
Resilient Ring Dia.2 1/4 in
Ring to Ring Center9 15/16 in
RotationReversible
RPM1725
RPM Range1,701-1,800
Service Factor (SF)1.25
Shaft Dia.5/8 in
Shaft Diameter5/8" Keyed
Shaft Length1-7/8", 1 7/8 in
Ship Weight32 lbs.
SKUZO-G0386337
StandardsCSA Certified (258501),.
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
UPC190735335819
Voltage115/208-230V AC
Voltage Compatibility115/200-230V AC, 115/20.
Volts115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB007R7WEWG367.51In Stock3DAYTON367.5 @ 1
thumbzoomZoroG0386337433.991In StockDayton31.43433.99 @ 1
grainger.caWWG4VAG8456.408586981In StockDAYTON31.43456.40858698 @ 1
thumbzoomsimsupply.comZO-G0386337478.17122Dayton478.17 @ 1
thumbzoomsustainablesupply.comC1561966578.661In StockDayton34.4578.66 @ 1
emotorpro.com4VAG8605.271In StockDayton32.0605.27 @ 1
thumbzoomRaptor SuppliesAD9UZP713.59557751In StockDAYTON713.5955775 @ 1
