- mpnULV7F2GSS341
- brandname: E-Switch
- manufacturername: E-Switch

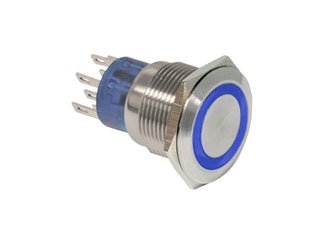

E-SWITCH ULV7F2GSS341 ULV7 Series DPDT ON-ON 3 A 250 VAC Blue LED 3 V 3.5 N IP67 Pushbutton Switch - 1 item(s)


- Brand: E-Switch
- PartNumber: ULV7F2GSS341
- Model: ULV7F2GSS341
- PackageQuantity: 1
- Manufacturer: E-SWITCH
- Label: E-SWITCH
Attributes
Key | Value |
---|
AC contacts rating @R | 3A / 250V AC |
Actuator colour | Silver |
Actuator Marking | No Marking |
Actuator Type | Round, Button, Flush |
Backlight colour | blue |
Base Product Number | ULV7 |
Body colour | Silver |
Body dimensions | ?25x29.2mm |
Button height | 2mm |
Button marking | blank |
Button shape | flat, |
Category | Switches |
Circuit | DPDT |
Color - Actuator/Cap | Silver |
Contact plating | silver plated |
Contacts configuration | DPDT |
Current Rating (Amps) | 3A (AC) |
Electrical Life | 50,000 Cycles |
Electrical life | 50000 cycles |
Features | - |
Illumination | LED, |
Illumination Type, Color | LED, Blue |
Illumination Voltage (N. | 3 VDC |
Ingress Protection | IP67 - Dust Tight, Wate. |
IP rating | IP67 |
Key stroke | 3.2mm |
Leads | connectors 2,8x0,5mm |
Manufacturer | E-Switch |
Manufacturer series | ULV7 |
Max. contact resistance: | 50m? |
Mechanical durability | 500000 cycles |
Mechanical Life | 500,000 Cycles |
Mfr | E-Switch |
Min. insulation resista. | 1G? |
Mounting | on panel |
Mounting hole diameter | ?22mm |
Mounting Type | Panel Mount, Front |
Number of positions | 2 |
Operating Force | 3.5N |
Operating Temperature | -20?C ~ 55?C |
Operating temperature | -20...55?C |
Package | Bulk |
Panel Cutout Dimensions | Circular - 22.20mm Dia |
Panel thickness | 1...10mm |
Part Status | Active |
Product Status | Active |
Series | ULV7 |
Stable positions number | 2 |
Switch Function | On-On |
Switching method | On-On |
Termination Style | Solder Lug, Quick Conne. |
Type | Anti-Vandal, Illuminated |
Type of switch | vandal resistant |
Voltage Rating - AC | 250 V |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
  | Newark | 77Y4029 | 14.16 | 100 | In Stock | | E-SWITCH | | 14.16 @ 100 |
| Hotenda | H4326369 | 15.49 | 1 | In Stock | | E-Switch | | 15.49 @ 1 |
| Hawk Electronics | ULV7F2GSS341 | 16.1 | 20 | In Stock | | E-Switch | | 16.1 @ 20 |
| Heilind Electronics | ULV7F2GSS341 | 16.9146 | 20 | 20 | | E-SWITCH | | 16.9146 @ 20 |
| Digi-Key | 5435980 | 20.46 | 1 | 132 | | E-Switch | | 20.46 @ 1 |
| Future Electronics | 5064703 | 22.296 | 1 | 15 | | E-Switch | | 22.296 @ 1 |
| TME | ULV7F2GSS341 | 22.71 | 100 | In Stock | | E-SWITCH | | 22.71 @ 100 |
| AmazonSC | B01CZM77F6 | 22.85 | 1 | In Stock | | E-Switch | | 22.85 @ 1 |
