Westinghouse DH361UGK

mpnDH361UGK
brandname: Eaton
manufacturername: Eaton

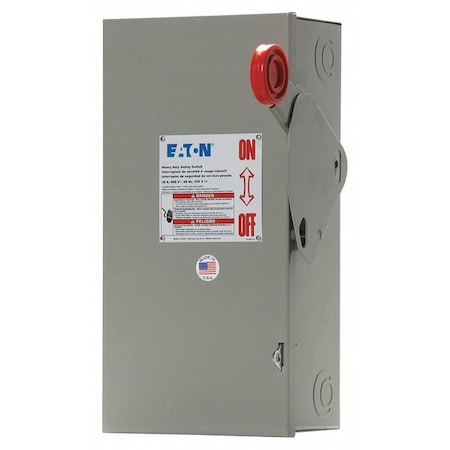

Eaton DH361UGK Safety Switch, 30A, 3P, 600VAC/250VDC, Type DH, Non-Fusible, NEMA 1

Brand: Eaton / Cutler-Hammer / Westinghouse
PartNumber: DH361UGK
PackageQuantity: 1
Manufacturer: Eaton
Label: Eaton

Attributes

Key	Value
Actuator	No
Actuator Type	Handle
Alternate Mfr Part Numb.	DH361UGK
amperage rating	30
Amperage Rating	30 Amp, 30, 30 A
Amps	30
Amps AC	30 A
Application	Commercial / Institutio.
Approvals	CUL, UL, UL Listed
Body Style	No
Brand	Eaton, EATON CUTLER-HAM.
Brand Name	Eaton
Carton	1
Catalog Number	DH361UGK
Category Description	Disconnects
Classification	Disconnects
Color Code	No
Composition	Metallic
Contact Configuration	3PST
Contact Form	3PST, TPST
Country of Origin	United States
Country Of Origin	United States of America
Current Rating	30 A
Current Type	AC
Degree of Protection	No
Depth	10 in
Description	30A/3P HD NF Safety Swi.
Description:	CH DH361UGK SAFETY SWIT.
Dimensions	16.5 Inch Length x 9.12.
dimensions	9.8900 IN X 8.8100 IN X.
Duty	Heavy
Element Type	No
Enclosure Height	10 to 19 3/4 inches
Enclosure Rating	NEMA 1
Enclosure Type	NEMA 1
Enclosure Width	0 to 9 3/4 inches
Energy Star Flag	No
extra long description	ETN DH361UGK 30A/3P HD .
Family Series	Cutler Hammer, Div of E.
Features	Eaton?s Heavy Duty Non-.
Finish	Painted
Fuse Class	No
Fuse Type	Non-Fusible, No
Fusible	Non-Fusible, No
Fusible / Nonfusible	Nonfusible
Fusible/Non Fusible	Non Fusible
Gross Weight	16 lbs
GTIN	00782113205502
Height	8.31 Inch, 15.9 in
Horsepower	5 hp, 7.5 hp, 10 hp, 20.
Horsepower @ 240V AC	10 hp
Horsepower @ 600V AC	30 hp
Horsepower, Max, 1 Phas.	7.5
Horsepower, Max, 1 Phas.	15
Horsepower, Max, 3 Phas.	10
Horsepower, Max, 3 Phas.	20
Housing Material	Steel
HP	15 hp @ 480V AC
IP Rating	20
IP/NEMA Rating	NEMA 1
Item Name	Heavy-Duty Safety Switch
Item Number	DH361UGK
Item Type	Single-throw non-fused .
Length	16.5 in
Long Description	Safety Switch, 30 A, 60.
Made in USA	yes
Manufacturer	Cutler Hammer, Div of E.
Manufacturer Name	Eaton
Manufacturer Part Number	DH361UGK
Manufacturers Part Numb.	DH361UGK
Material	Steel, Painted Steel (E.
Material of Construction	Steel
Maximum Current	30 A
Maximum Load Capacity	1-Phase: 3 hp at 240 Vo.
media	yes
Metallic / Non-Metallic	Metallic
MFG Part #:	DH361UGK
Mounting	Surface
Mounting Type	Panel Mount, Panel
NEMA Enclosure Type	1
NEMA Rating	NEMA 1
nema rating	NEMA 1
Net Weight	16 lbs
Neutral	No
Neutral Type	No
Number of Phases	1;3
Number of Poles	3
Number of Wires	3.0000, 3, Three-wire
On Hand:	In Stock - Available fo.
Operation	Safety
Overall Height	15.88 in;403.4 mm
Overall Length	8.13 in;206.5 mm
Overall Width	10 in;254 mm
Part Number	DH361UGK
Phase	3, 1/3 ph, 1 or 3
Poles	3
Primary Type	Safety Switch
Product Series	DH
Product Type	Safety Switch
Protection Method	Nonfusible
RoHS Flag	Contact manufacturer
Series	K Series
Short Circuit Current R.	200 kA
Short Description	Safety Switch, 30 A, 60.
Special Features	Triple Padlocking Capab.
Standard	UL Listed
standard	UL Listed,NEC 230.62 (C.
Standards	NEMA KS-1, UL Listed, U.
Standards Met	UL98 Listed;UL 50 Listed
Supplier:	CUTLER-HAMMER INC
Switch Type	Heavy Duty
Type	Single-Throw, Heavy Dut.
UNSPSC	N/A, 39122218
UPC	782113205502, 782113205.
UPC Code	782113205502
UPC:	782113205502
Voltage	600 V, 600V AC/250V DC
Voltage Rating	600 Volt AC, 600 VAC, 6.
Volts AC	600
Volts DC	250
Weight	16 Pound, 16 lb;7.264 kg
Weight per each	16
Width	9.12 in, 8.1 in

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
AmazonTP	B00JV3GAPG	54.42	1	In Stock	2	Eaton		54.42 @ 1
Monarch Electric	3609	118.49	1	In Stock		Eaton		118.49 @ 1
mostelectric.com	DH361UGK	124.86	1	4		CUTLER HAMMER		124.86 @ 1
simplybreakers.com	DH361UGK	149.99	1	In Stock		Eaton Cutler-Hammer		149.99 @ 1
midwestapplianceparts.com	DH361UGK-CU-P	157.25	1	In Stock		Cutler Hammer		157.25 @ 1
sustainablesupply.com	C1189669	165.1	1	In Stock		Eaton	12.25	165.1 @ 1
turtle.com	CUH DH361UGK	237.33	1	In Stock		Eaton		237.33 @ 1
motorsandcontrol.com	DH361UGK	248.11	1	In Stock		Eaton Cutler Hammer		248.11 @ 1
Zoro	G8817672	291.31	1	53		Eaton	12.25	291.31 @ 1
kirbyrisk.com	525192	291.31	1	In Stock		Cutler Hammer		291.31 @ 1
Elliott Electric	DH361UGK	291.31	1	In Stock		Eaton	16.0	291.31 @ 1
Walker Industrial	DH361UGK	311.07	1	In Stock	17	Eaton Cutler-Hammer		311.07 @ 1
kscdirect.com	CH DH361UGK	316.33	1	In Stock		CUTLER-HAMMER INC		316.33 @ 1
Platt.com	0010640	348.71	1	90		Eaton		348.71 @ 1
Galco	DH361UGK-CHGP	385.96	1	1		Cutler Hammer, Div of Eaton Co	16.0	385.96 @ 1
kempstoncontrols.co.uk	DH361UGK	388.9830555	1	In Stock		Eaton		388.9830555 @ 1
National Supply Network	438564	416.19	1	In Stock		Eaton Cutler-Hammer		416.19 @ 1
cappusa.com	961079	420.8	1	In Stock		Eaton		420.8 @ 1
us.rs-online.com	70056896	425.05	1	3		Eaton - Cutler Hammer	16.0	425.05 @ 1
Newark	46K5262	450.89	1	In Stock		EATON CUTLER HAMMER		450.89 @ 1
bscsource.com	DH361UGK	502.39	1	In Stock		Eaton Cutler-Hammer		502.39 @ 1
crescentelectric.com	103527	711.03	1	9		Eaton		711.03 @ 1
Airline Hydraulics	EATON DH361UGK	1068.97	1	455		Eaton		1068.97 @ 1
