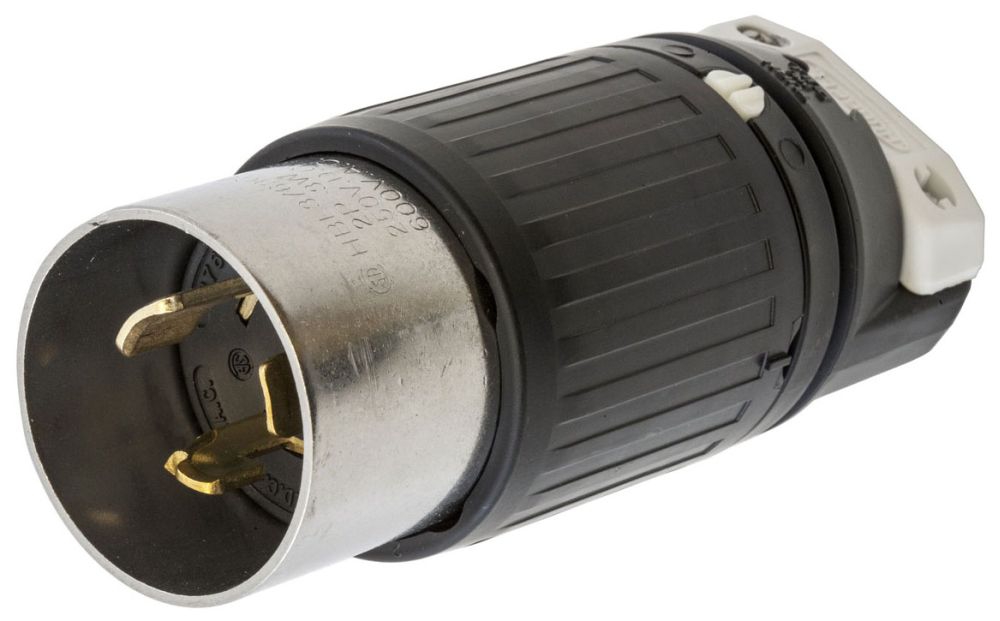

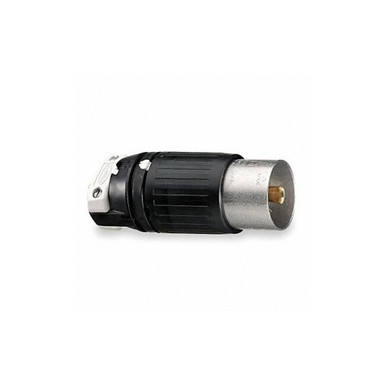

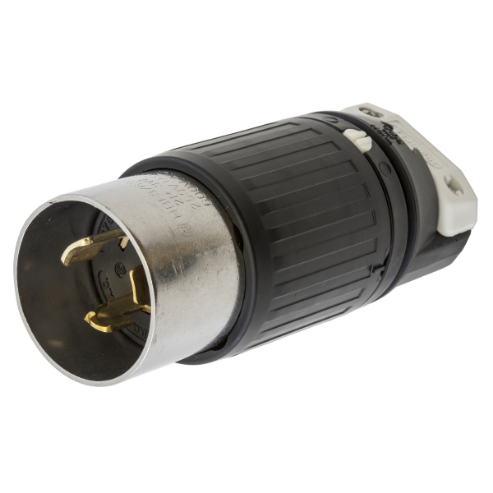

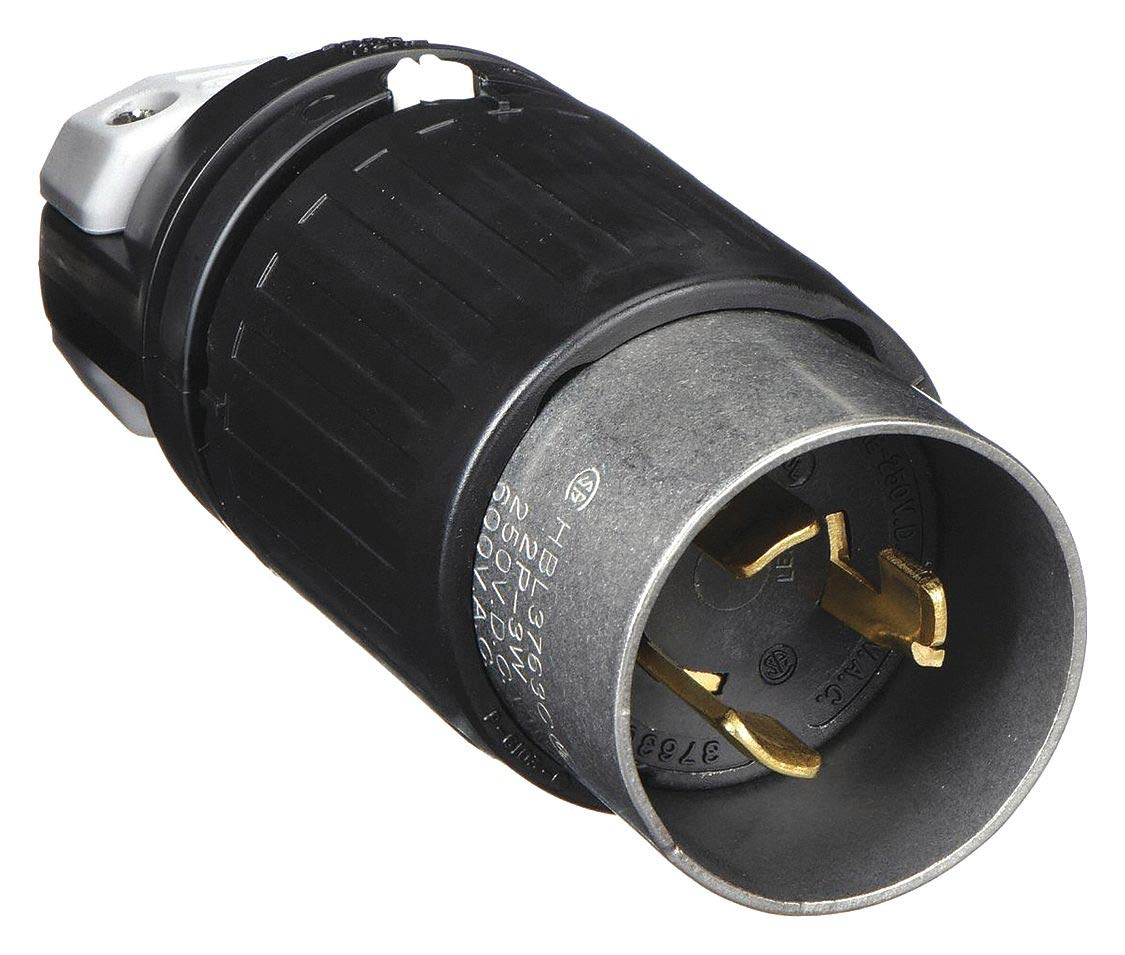

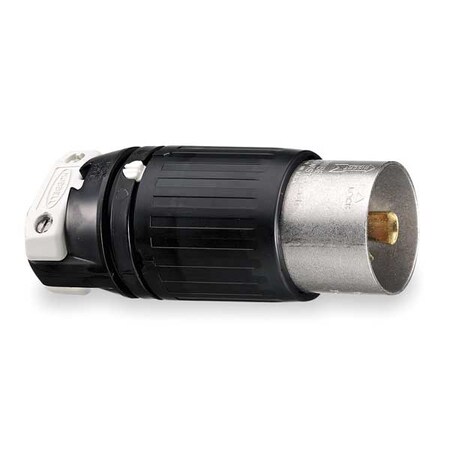

Hubbell Wiring Device-Kellems HBL3763C

B0078RPHFG

50A Locking Plug 2P 3W 600VAC/250VDC BK/WT

50A Locking Plug 2P 3W 600VAC/250VDC BK/WTzoom

Attributes

Key Value
Amperage50A
Amperage Rating50A
Amps50
Amps - Plugs and Recept.50
AntimicrobialNo
ApplicationExtra Heavy Duty Indust.
ApprovalsCSA, UL
AWG Range#8 AWG to #4 AWG
Blade MaterialBrass
Body Length2.56 in
Body TypeStraight
BrandHubbell
Cable Range0.830 - 1.250 in.
ColorBlack/White, White, Bla.
Color - Plugs and Recep.Black/White
Color FamilyMulti
Connection OrientationStraight
Cord dia750 in-1.125 in
Cord Size0.750 in to 1.125 in
Corrosion ResistantNo
Country of OriginUS - United States
Country of Origin (subj.United States
Current Rating50 A
Current Stock97
Display TypeStandard Sized
ECCNEAR99
Family SeriesHubbell Plugs & Recepta.
For EnvironmentDry
For LocationIndoor
For Maximum Cable Diame.1.25 in
For Minimum Cable Diame.0.83 in
GradeIndustrial
Grade - Plugs and Recep.Industrial
Gross Weight1.66 lbs
GroundingGrounded
Height6.37 in.
Housing ColorBlack, White
Housing ColourBlack, White
Housing MaterialNylon
International ShippingNo
IP Rating20, IP20
Isolated GroundNo
ItemLocking Plug
Item - Plugs and Recept.Locking Plug
Item NumberHBL3763C
Lead TimeExpected to ship in 1-2.
Length2.56 in.
ManufacturerHubbell
Manufacturer Part NumberHBL3763C
MarketIndustrial
MaterialNylon, Super Tough Nylon
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size4 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size8 AWG
MpnHBL3763C
NEMA ConfigurationNon-NEMA, 3 Blade, Non-.
NEMA Plug ConfigurationNon-NEMA
NEMA Plug Configuration.50A, Non-NEMA
Net Weight1.2 lbs
No. of Poles2
No. of Wires3
Number of Blades3
Number of Poles2
Number of Wires3
Outside Diameter2.563 in
Overall Length2.56 in
Phase1, Single
PolarizedYes
Rated Voltage250V DC/600V AC
Resistance PropertiesChemical Resistant, Imp.
ShroudedYes
Shrouded / Non-ShroudedShrouded
SKUZO-G0893575
StandardCertified to CSA C22.2 .
StandardsUL Listed
SubCategoryElectrical
TypePlugs
UL 94 Flammability Rati.HB
UNSPSC39121403
UPC783585235615
UPC Code783585235615
Voltage600VAC/250VDC, 250V DC,.
Voltage - Plugs and Rec.600V AC/250V DC
Voltage Rating250V DC/600V AC
WatertightNo
Width2.56 in.
Wire Connection TypeScrew Terminals
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomKelly HayesHBL3763C130.76146Hubbell Wiring Device-Kellems130.76 @ 1
thumbzoomZoroG0893575132.971In StockHubbell1.2132.97 @ 1
thumbzoomAmazonSCB0078RPHFG137.161In StockHubbell Wiring Device-Kellems137.16 @ 1
thumbzoomsustainablesupply.comC1192766145.561In StockHubbell1.2145.56 @ 1
AmazonTPB00E2XP4OS159.291In Stock2HUBBELL WIRING DEVICE-KELLEMS159.29 @ 1
AmazonUNKB00E2XP4OS159.291In StockHUBBELL WIRING DEVICE-KELLEMS159.29 @ 1
Carlton Bates Company78358523561160.541In StockHubbell Wiring Device-Kellems160.54 @ 1
thumbzoomsimsupply.comZO-G0893575163.4197Hubbell163.4 @ 1
thumbzoomMRO Supply1022326167.141In StockHubbell Wiring167.14 @ 1
standardelectricsupply.com219246167.141In StockHubbell167.14 @ 1
thumbzoomgordonelectricsupply.comHBL3763C169.651In StockHUBBELL169.65 @ 1
Onlinecomponents.comHBL3763C170.6411Hubbell Wiring Device-Kellems170.64 @ 1
cbtcompany.comHBL3763C182.781In StockHubbell Wiring Device-Kellems182.78 @ 1
thumbzoomGalcoHBL3763C-HBBL187.21In StockHubbell1.66187.2 @ 1
Newark14C5238212.941In StockHUBBELL WIRING DEVICES212.94 @ 1
thumbzoomNational Supply Network84269471214.91In StockHubbell Wiring Device-Kellems214.9 @ 1
thumbzoombscsource.comHBL3763C218.091In StockHubbell Wiring Device-Kellems218.09 @ 1
grainger.caHBLHBL3763C220.49986281In StockHUBBELL WIRING DEVICE-KELLEMS1.2220.4998628 @ 1
steinerelectric.com26583220.751In StockHubbell Wiring Device-Kellems220.75 @ 1
Graybar88126767236.00641In StockHubbell Wiring Device - Kellems236.0064 @ 1
us.rs-online.com70259294239.9811Hubbell Wiring Device-Kellems239.98 @ 1
kirbyrisk.com488849310.511In StockHubbell310.51 @ 1
thumbzoomRaptor SuppliesAC8PZA341.02639351In StockHUBBELL WIRING DEVICE-KELLEMS341.0263935 @ 1
