Leeson 108051

B00BC8X8CG

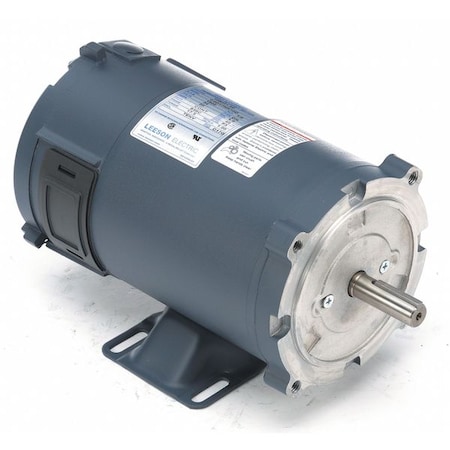

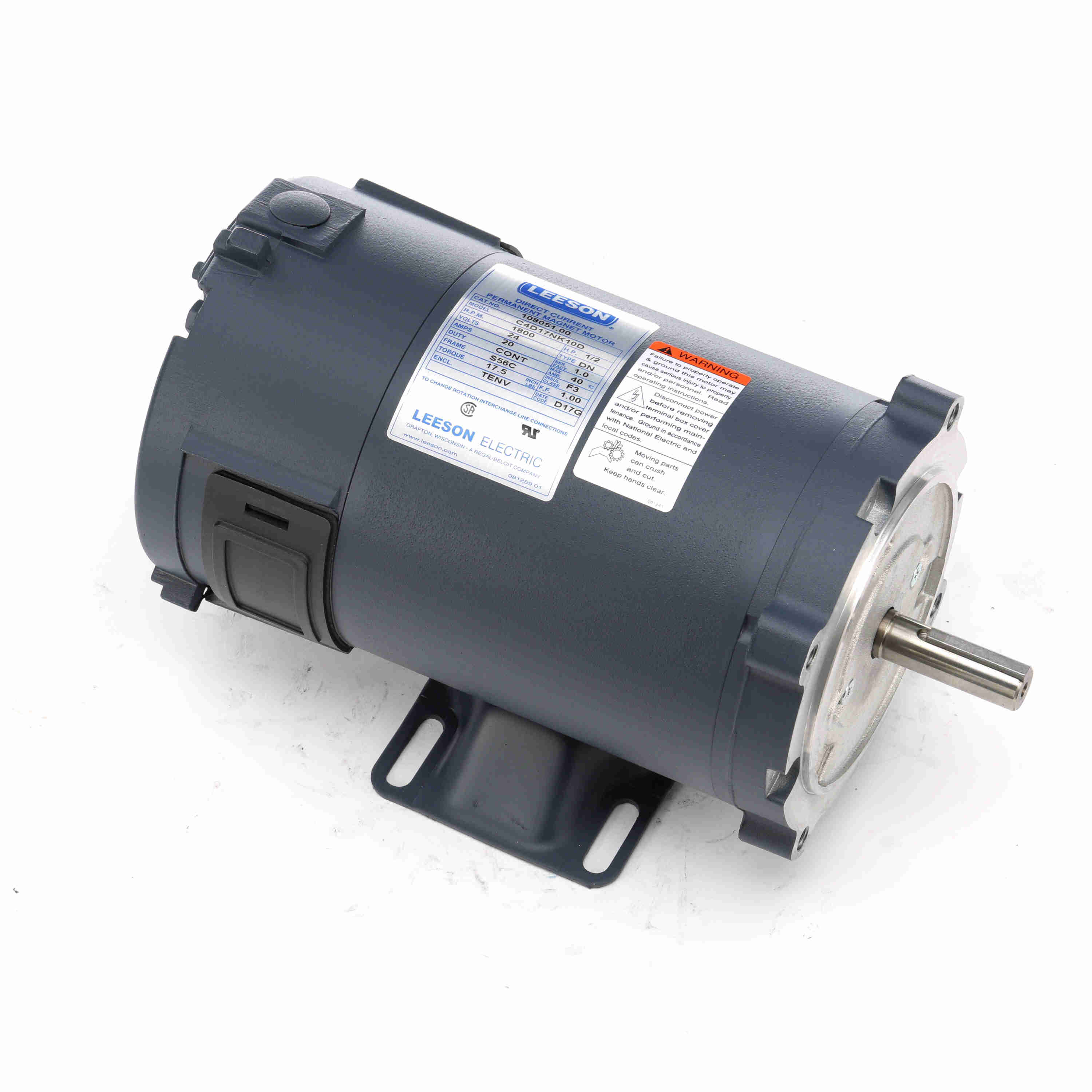

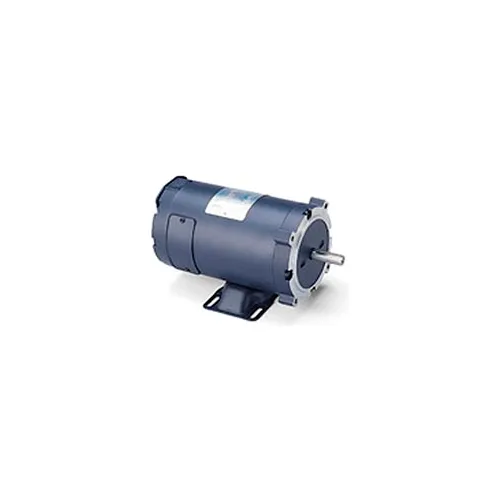

DC Permanent Magnet Motor, 20.0A, 24VDC

DC Permanent Magnet Motor, 20.0A, 24VDCzoom

Attributes

Key Value
Alternate Mfr Part Numb.C4D17NK10D
Amperage Rating20 A
Armature Current20 A
Armature Voltage24 V
Base RPM1,800 RPM
Bearing TypeBall
BearingsBall
Body Dia.5 5/8 in
Brush TypeCarbon
CategoryElectric Motor
ConstructionRolled Steel
Current Rating20 A
Description:1/2HP.1800RPM.S56C.TENV.
Dimensions11.77 in L x 6.5 in W x.
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency77, 77 %
EnclosureTENV
Enclosure TypeTotally Enclosed Non Ve.
Estimated Weight29.00
Family SeriesLeeson Motors
FeaturesRemovable Base, Rugged .
FL Amps20
FL Efficiency77
FrameS56C, 56C
Frame RemarksFOOTED
Full Load Amps20.0 A
Full Load Torque17.5 in-lb
Gross Weight0 lbs
Hertz60
Horsepower1/2 hp
Horsepower Rating0.50 HP
HP0.50, 0.5, 1/2
Ins. ClassF
Insulation ClassClass F, F
Insulation TypeClass F
ItemDC Permanent Magnet Mot.
Item ConditionFACTORY NEW
Item Number108051.00
KW0.37
Length Less Shaft9 13/16 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number108051.00
MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
MFG Part #:108051.00
Motor ApplicationGeneral Application
Motor BearingsBall
Motor DesignPermanent Magnet DC
Motor Enclosure DesignTotally Enclosed Nonven.
Motor Mounting TypeFace/Base
Motor Service Factor1
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
mountingC-face w/ rigid base
MountingFoot Mount
Mounting TypeRigid C base, Face
Nameplate RPM1,800
Net Weight29 lbs
Nominal Voltage24 V
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length11 3/4 in
Part Number108051.00
PhaseC
Power Rating1/2 hp
Product TypeGeneral Purpose
Removable BaseYes
RotationReversible, CW/CCW
RPM1700 - 1800, 1800
RPM Range1,701-1,800
Service Factor1
Shaft Dia.5/8 in
Shaft Diameter0.625
Shaft Length2.06, 1 7/8 in
Shaft Size5/8 in
Special FeaturesService Factor - 1
Speed1800 RPM
Speed (RPM)1800
StandardsUL Recognized, CSA (LR2.
Stud Quantity4
Stud Size3/8"-16
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
Torque Rating216 in-lb
TypeLow Voltage PMDC Design
UPC Code691720006740
UPC:691720006740
Voltage24, 24V DC, 24V
Voltage Compatibility24V DC
Voltage Rating24 VDC
Volts24
Weight22 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com108051372.01In StockLEESON372.0 @ 1
AmazonTPB00EPKJDR2416.441In Stock2Leeson416.44 @ 1
thumbzoomMRO Supply2525299515.651In StockLeeson515.65 @ 1
thumbzoomZoroG4608801536.99131Leeson536.99 @ 1
thumbzoomcshincorporated.com108051.00556.51In StockLeeson32.0556.5 @ 1
thumbzoomGlobal IndustrialWBB236803657.01In StockLeeson657.0 @ 1
thumbzoomDealers Electric108051.00679.691In StockLeeson32.0679.69 @ 1
us.rs-online.com72239071744.051In StockLeeson744.05 @ 1
thumbzoommotorsandcontrol.comLE-108051.00746.591In StockLeeson Electric29.0746.59 @ 1
thumbzoomGalco108051.00-LEES752.41In StockLeeson29.0752.4 @ 1
grainger.caWWG48ZG53818.375297241In StockLEESON26.5818.37529724 @ 1
thumbzoomcbtcompany.com108051.00827.091In StockLeeson Electric827.09 @ 1
thumbzoomWalker Industrial108051-00846.131In Stock10Leeson846.13 @ 1
thumbzoomRaptor SuppliesAJ2PWA883.9132381In StockLEESON883.913238 @ 1
kscdirect.comLEE 108051.00916.781In StockLEESON ELECTRIC CORPORATION916.78 @ 1
thumbzoompumpproducts.com108051.00966.031In StockLeeson966.03 @ 1
