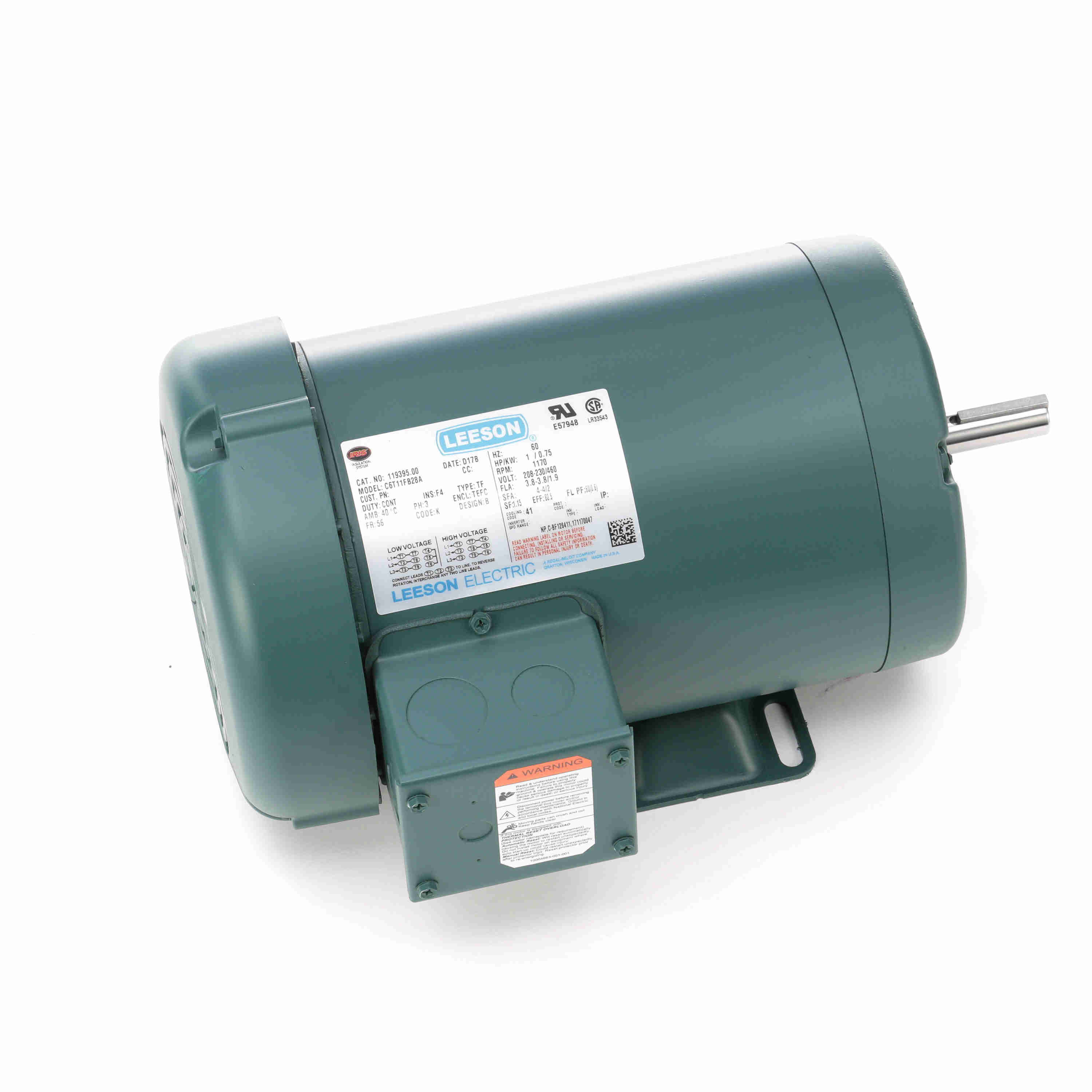

Leeson Electric 119395.00 - General Purpose Motor - 3 ph, 1 hp, 1200 rpm, 208-230/460 V, 56 Frame, Totally Enclosed Fan Cooled Enclosure, 60 Hz, Rigid base Mount

Leeson Electric 119395.00 - General Purpose Motor - 3 ph, 1 hp, 1200 rpm, 208-230/460 V, 56 Frame, Totally Enclosed Fan Cooled Enclosure, 60 Hz, Rigid base Mountzoom

Attributes

Key Value
Amperage Rating3.8 to 3.8/1.9 A
Amps3.8-3.8/1.9
Application TypeCompressor Motors, Fan .
Bearing TypeBall
BearingsBall
CategoryElectric Motor
CompositionSteel
ConstructionRolled Steel
Description:119395.00..1HP..1170RPM.
Dimensions12.98 in L x 7.32 in H
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency82.5%
Efficiency %82.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight43.00
Family SeriesLeeson Motors
FL Amps3.8-3.8/1.9
FL Efficiency82.5
Frame56
Frequency60 Hz
Frequency Rating60 Hz
Full Load Current3.8-3.8 A, A
Gross Weight0 lbs
Hertz60
Horsepower1 hp
HP1
Hz60
Insulation ClassClass F, F
Item ConditionFACTORY NEW
Item Number119395.00
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number119395.00
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:119395.00
Motor Shell Length7.50"
MountingFoot Mount, Rigid Base
mountingRigid Base
Mounting TypeFoot Mount, C-Face/Rigi.
NEMA Frame56
Net Weight0 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Speeds1
Overall Length12.98"
Part Number119395.00
Phase3, 3 ph
Product TypeGeneral Purpose, Three .
RotationReversible
RPM1,170 RPM, 1200, 1170
Service Factor1.15
Shaft Diameter0.625"
Shaft Length1.88"
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight40 lbs.
Speed1170 rpm
Speed (RPM)1170
Supplier:LEESON ELECTRIC CORPORA.
TypeGeneral Purpose
UPC:691720043523
Voltage208V, 230V, 460V
Voltage (AC)208 VAC, 230 VAC, 460 V.
Volts208/230/460, 208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com119395381.01In StockLEESON38.0381.0 @ 1
AmazonTPB0773TMZBJ510.991In Stock3Leeson Electric510.99 @ 1
thumbzoomcshincorporated.com119395.00535.31In StockLeeson40.0535.3 @ 1
thumbzoomemotorpro.com119395.00594.631In StockLeeson40.0594.63 @ 1
industrialmotors.com119395.00657.612LEESON ELECTRIC657.6 @ 1
thumbzoomDealers Electric119395.00680.21In StockLeeson40.0680.2 @ 1
thumbzoomGalco119395.00-LEES730.511In StockLeeson730.51 @ 1
us.rs-online.com73397186733.171In StockLeeson733.17 @ 1
thumbzoommotorsandcontrol.comLE-119395.00747.14119Leeson Electric43.0747.14 @ 1
thumbzoomZoroG2493352753.991In Stock10Leeson753.99 @ 1
thumbzoomcbtcompany.com119395.00797.361In StockLeeson Electric797.36 @ 1
thumbzoomWalker Industrial119395-00846.771In Stock10Leeson846.77 @ 1
kscdirect.comLEE 119395.00917.471In StockLEESON ELECTRIC CORPORATION917.47 @ 1
thumbzoompumpproducts.com119395.001013.531In StockLeeson1013.53 @ 1
thumbzoomRaptor SuppliesAJ2RAZ1066.03011451In StockLEESON1066.0301145 @ 1
