Lovejoy 68514476836

B004QWZHUG

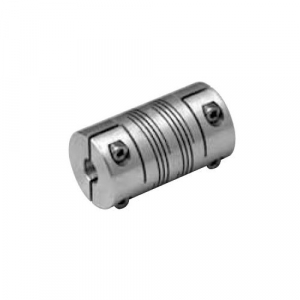

Lovejoy ADB3.5 68514476836 Double Beam Coupling, Aluminum, Inch, 1/4" Bore A Diameter, 5/16" Bore B Diameter, 0.626" OD, 1" Overall Coupling Length, 6.2 lb-in Nominal Torque, No Keyway, 10000 Max RPM

Lovejoy ADB3.5 68514476836 Double Beam Coupling, Aluminum, Inch, 1/4" Bore A Diameter, 5/16" Bore B Diameter, 0.626" OD, 1" Overall Coupling Length, 6.2 lb-in Nominal Torque, No Keyway, 10000 Max RPMzoom

Attributes

Key Value
Axial Misalignment? 0.010 in
Bore A0.250 in
Bore B0.313 in
Clamp Screw SizeM2.5
Coupling SizeADB3.5
Cubic inches0.39188 in3
FinishAnodized Aluminum
Keyway SizeNo Keyway
Length thru Bore0.256 in (6.50 mm)
MaterialAluminum
Max. Angular Misalignme.7.00 ?
Max. Bore (Dimensions I.0.315 in (8.00 mm)
Max. Operating Temperat.200.00 ?F
Max. Speed10000 rpm
Min. Bore (Dimensions I.0.197 in (5.00 mm)
Moment of Inertia0.0010 lb-in2
Nominal Torque6.20 in-lb
Outside Diameter0.626 in (15.90 mm)
Overall Length1.000 in (25.40 mm)
Parallel Misalignment0.008 in
StyleClamp Screw
Torsional Stiffness2584.00 in-lb/rad
TypeDouble Beam Coupling
Weight0.01 oz
Weight (Complete Coupli.0.40 oz

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusmegastore.com68514476836109.41In StockLovejoy0.000625109.4 @ 1
thumbzoomheavydutydepot.com68514476836121.11In StockLovejoy121.1 @ 1
