Lovejoy 68514476839

B003U6HYNW

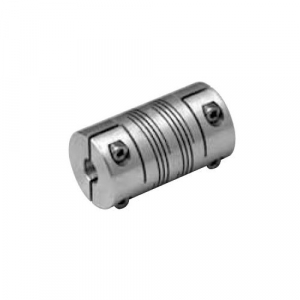

Lovejoy ADB4 68514476839 Double Beam Coupling, Aluminum, Inch, 1/4" Bore A Diameter, 3/8" Bore B Diameter, 0.752" OD, 1.043" Overall Coupling Length, 12 lb-in Nominal Torque, No Keyway, 10000 Max RPM

Lovejoy ADB4 68514476839 Double Beam Coupling, Aluminum, Inch, 1/4" Bore A Diameter, 3/8" Bore B Diameter, 0.752" OD, 1.043" Overall Coupling Length, 12 lb-in Nominal Torque, No Keyway, 10000 Max RPMzoom

Attributes

Key Value
Axial Misalignment? 0.010 in
Bore A0.250 in
Bore B0.375 in
Clamp Screw SizeM2.5
Coupling SizeADB4
Cubic inches0.58982 in3
Description:ADB4-BEAM CP-1/4X3/8;
FinishAnodized Aluminum
Keyway SizeNo Keyway
Length thru Bore0.256 in (6.50 mm)
ManufacturerLOVEJOY INC
MaterialAluminum
Max. Angular Misalignme.7.00 ?
Max. Bore (Dimensions I.0.394 in (10.00 mm)
Max. Operating Temperat.200.00 ?F
Max. Speed10000 rpm
MFG Part #:68514476839
Min. Bore (Dimensions I.0.236 in (6 mm)
Moment of Inertia0.0030 lb-in2
Nominal Torque12.00 in-lb
Outside Diameter0.752 in (19.10 mm)
Overall Length1.043 in (26.50 mm)
Parallel Misalignment0.010 in
StyleClamp Screw
Supplier:LOVEJOY INC
Torsional Stiffness4460.00 in-lb/rad
TypeDouble Beam Coupling
UPC:685144768391
Weight0.02 oz
Weight (Complete Coupli.0.60 oz

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomheavydutydepot.com68514476839161.01In StockLovejoy161.0 @ 1
thumbzoomusmegastore.com68514476839168.31In StockLovejoy0.00125168.3 @ 1
kscdirect.comLOV 68514476839209.071In StockLOVEJOY INC209.07 @ 1
thumbzoomRaptor SuppliesAM8RVA239.86152451In StockLOVEJOY239.8615245 @ 1
thumbzoombscsource.com68514476839246.391In StockLovejoy246.39 @ 1
thumbzoommidwestapplianceparts.com68514476839-LJ-P263.591In StockLovejoy263.59 @ 1
thumbzoomNational Supply Network87792560295.651In StockLovejoy295.65 @ 1
Airline HydraulicsLOVEJOY 68514476839304.431In StockLOVEJOY304.43 @ 1
