Marathon Electric X304

mpnX304
brandname: MARATHON
manufacturername: MARATHON

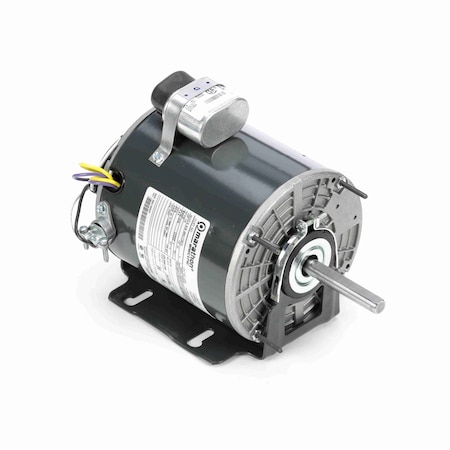

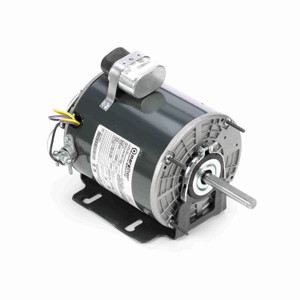

Marathon X304 48Y Frame Totally Enclosed 48A11T201 Unit Heater Motor 1/3 hp, 1075 RPM, 115 VAC, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Resilient Ring Mount

Marathon X304 48Y Frame Totally Enclosed 48A11T201 Unit Heater Motor 1/3 hp, 1075 RPM, 115 VAC, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Resilient Ring Mount

zoom

Brand: Marathon Electric
PartNumber: X304
Model: MX304
PackageQuantity: 1
Binding: Misc.
Manufacturer: Marathon Electric
Label: Marathon Electric

Attributes

Key	Value
Alternate Mfr Part Numb.	048A11T201
Amps	6.5
Approvals	CSA, UR
Bearing Type	Ball
Brand	Marathon
C-Dimension	9.75 (in.) (in.)
Catalog Number	X304
CE	N
Composition	Rolled Steel
Country of Origin (subj.	United States
CSA	Y
DE Bearing Type	Ball
DEM Reference	MA#X304
Duty	Continuous
Efficiency %	70 %
Electrical Type	Permanent Split Capacit.
Enclosure	TEAO, Totally Enclosed .
Enclosure Type	Totally Enclosed Air Ov.
Family Series	Marathon Electric Motors
Frame	48Z
Frame Material	Rolled Steel
Frame Type	48Z
Frequency	60, 60 Hz
Gross Weight	0 lbs
Horsepower	1/3 hp
HP	1/3
Hz	60
Insulation Class	B
IP Code	43
Item Number	X304
Kilowatts	0.25 kW
KVA Code	F
Manufacturer	Marathon Electric
Manufacturer Part Number	048A11T201
Max Ambient	40?C
Motor Orientation	Horizontal
Mounting Type	Resilient Base - Extend.
Net Weight	21 lbs
Number of Poles	6
ODE Bearing Type	Ball
Overall Length	9.75 "
Phase	1
Product Category	HVAC/R Motors > Direct.
Rotation	Selective Counterclockw.
RPM	1075, 1,075 RPM
RPM (Nameplate)	1075
RPM (Number of Poles)	6 (901 RPM to 1200 RPM)
Service Factor	1
Shaft Diameter	0.5 ", 1/2 (in.)
Shaft Extension	2.81 (in.) (in.)
Shaft Type	Single Special Extension
Speeds	1
Type of Overload Protec.	Automatic Lock Rotor On.
UL	Recognized
Voltage	115
Voltage (AC)	115 VAC
Volts	115

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	electricmotorwholesale.com	X304	166.0	1	1		MARATHON		166.0 @ 1
	Galco	X304-MARA	227.28	1	In Stock		Marathon Electric	21.0	227.28 @ 1
	MRO Supply	2269833	229.6	1	In Stock		Marathon Electric		229.6 @ 1
	apexindustrialautomation.com	X304	230.31	1	78		Marathon		230.31 @ 1
	us.rs-online.com	72650072	255.99	1	In Stock		Marathon Motors		255.99 @ 1
	Dreisilker	MA-RBC-X304	280.4	1	In Stock		Marathon		280.4 @ 1
	midwestapplianceparts.com	X304-MT-P	291.09	1	In Stock		Marathon		291.09 @ 1
	cbtcompany.com	X304	292.51	1	In Stock		Marathon Electric Motors		292.51 @ 1
	National Supply Network	B872053	318.04	1	In Stock		MARATHON MOTORS		318.04 @ 1
	Guardian	MARSX304	319.37	1	In Stock		Marathon		319.37 @ 1
	Zoro	G402203792	385.33	1	In Stock		Marathon		385.33 @ 1
