Marathon X417

mpnX417
brandname: MARATHON
manufacturername: MARATHON

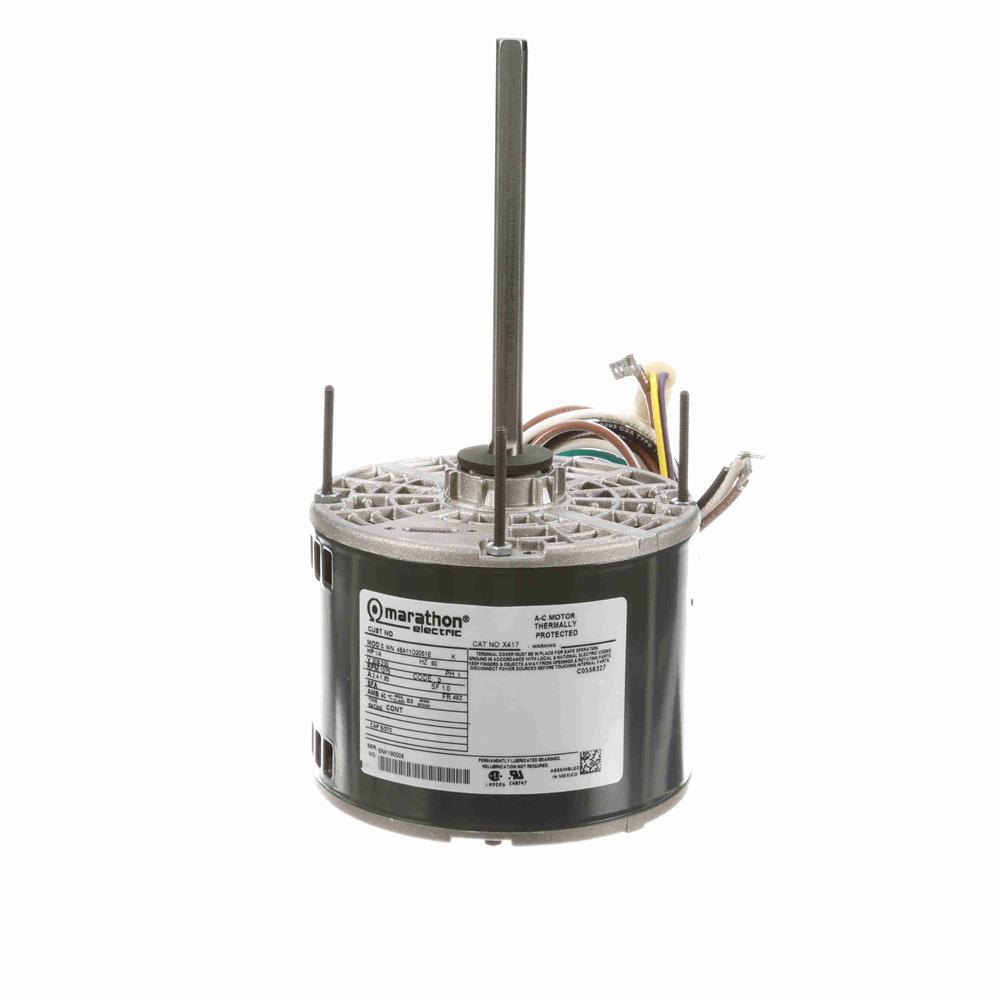

Marathon X417 Motor

Marathon X417 Motor

zoom

Brand: Marathon
PartNumber: X417
Manufacturer: Marathon
Label: Marathon

Attributes

Key	Value
Alternate Mfr Part Numb.	048A11O2051
Amps	2.4-1.85
Bearings	Ball
Capacitor	5MFD/370VAC Required
Current Rating	2.4 to 1.9 A
Duty Cycle	Continuous
Efficiency	59.4, 0.594
Enclosure Material	Steel
Enclosure Type	OAO (Open Air Over), Op.
enclosure type:	OAO (Open Air-Over)
Frame	48Z
frame material:	Rolled Steel
frame size:	48Y
Frequency	60 Hz
frequency rating:	60 Hz
Horsepower Rating	0.25 HP
HP	1/4
Hz	60
Insulation Class	B
Insulation Type	Class B
Manufacturer Model #	048A11O2051
Maximum Ambient Tempera.	40? C
motor category:	Blower/Fan Motor
Motor Diameter	5-5/8"
motor horsepower:	1/4 hp, 0.25 hp
motor phase:	1 ph
Motor Shell Length	3.75"
motor supply voltage:	208-230 V
Mounting	Stud
Mounting Orientation	Horizontal
Mounting Type	Round - Extended Studs
mounting type:	Round/Extended Studs
Number of Speeds	1
Overall Length	11.19"
Phase	1, 1 Phase
Product Type	PSC (Permanent Split Ca.
Rotation	Reversible
RPM	1075 RPM, 1075
Service Factor	1
service factor:	1.00
Shaft Diameter	1/2"
Shaft Length	6.06"
Ship Weight	13 lbs.
Special Features	Service Factor - 1
Standards	UL Recognized
standards met:	UL, CSA
Supply Voltage	208-230 VAC
synchronous rpm:	1200 rpm
Thermal Protection	Automatic
Type	Permanent Split Capacit.
UPC Code	722856038746
Volts	208, 230
weight:	13 lbs

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	motionindustries.com	04739456	155.46	1	In Stock		Marathon Electric		155.46 @ 1
	us.rs-online.com	72238280	186.35	1	In Stock		Marathon Motors		186.35 @ 1
	emotorpro.com	X417	187.09	1	In Stock		Marathon	13.0	187.09 @ 1
