Marathon Electric X447

B0042GILJK

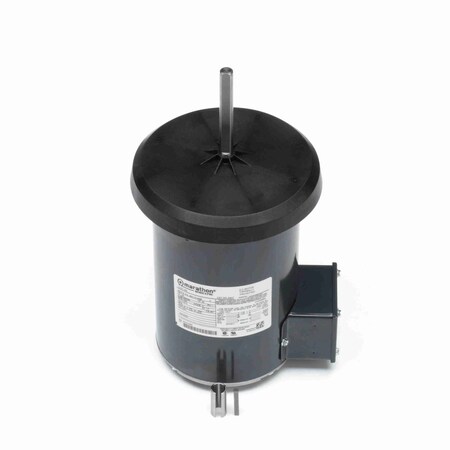

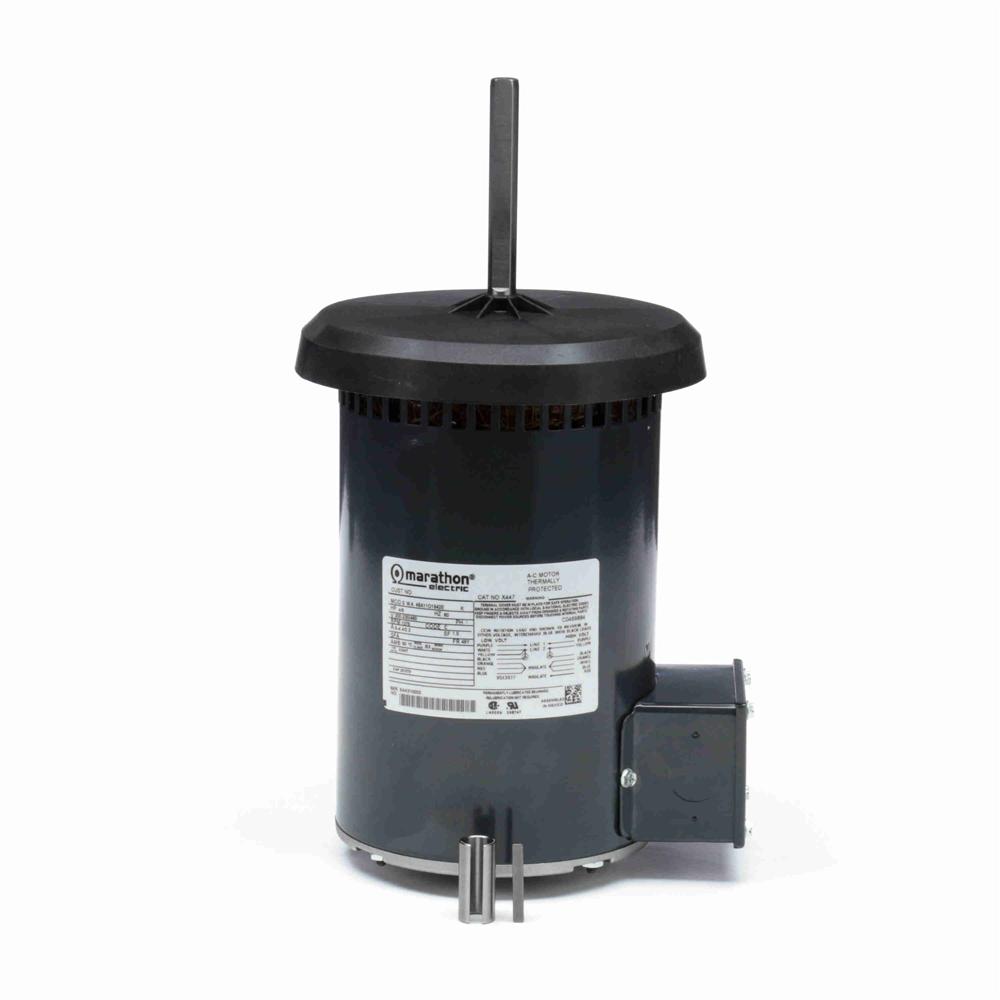

Marathon X447 48Y Frame Open Air Over 48A11O1642 Condenser Fan Motor 0.8 hp, 1075 RPM, 200-230/460 VAC, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Belly Band Mount

Marathon X447 48Y Frame Open Air Over 48A11O1642 Condenser Fan Motor 0.8 hp, 1075 RPM, 200-230/460 VAC, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Belly Band Mountzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11O1642
Amps5-4.4/2.2
ApprovalsCSA, UR
base rpm:1075 rpm
Bearing TypeBall
BearingsBall
Capacitor20MFD/370VAC Required
CompositionRolled Steel
Country of Origin (subj.United States
duty / condition type:Continuous Duty
Duty CycleContinuous
Efficiency0.64
Efficiency %64 %
EnclosureOPAO, Open Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over)
enclosure type:OAO (Open Air-Over)
Family SeriesMarathon Electric Motors
Frame48Y
frame material:Rolled Steel
frame size:48Y
Frequency60 Hz
frequency rating:60 Hz
full load current:5.00
Gross Weight0 lbs
Horsepower4/5 hp
HP.8, 0.8
Hz60
Insulation ClassB
insulation class:B
ip rating:01
Item NumberX447
Kilowatts0.6 kW
ManufacturerMarathon Electric
Manufacturer Model #048A11O1642
Manufacturer Part Number048A11O1642
Maximum Ambient Tempera.60? C
motor category:Condenser Fan Motor
Motor Diameter5-5/8"
motor horsepower:0.80 hp, 8/10 hp
motor phase:1 ph
motor supply voltage:200-230/460 V
MountingBand
Mounting OrientationVertical Shaft Up
Mounting TypeRound Belly Band
mounting type:Belly Band
Net Weight28 lbs
Number of Poles6
Number of Speeds1
Overall Length13.69 ", 13.69"
Phase1
Product TypePSC (Permanent Split Ca.
RotationReversible
RPM1075, 1,075 RPM
Service Factor1
Shaft Diameter0.5 ", 1/2"
shaft diameter:0.50 in
Shaft Length4"
Ship Weight27 lbs.
standards met:UL, CSA
synchronous rpm:1200 rpm
Thermal ProtectionAutomatic
thermal protection:Automatic
Voltage200/230/460
Voltage (AC)200-230 VAC, 460 VAC
Volts200, 230, 460
weight:28 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoX447-MARA93.7236In StockMarathon Electric28.093.72 @ 36
thumbzoomMRO Supply226941494.221In StockMarathon Electric94.22 @ 1
us.rs-online.com72650032109.581In StockMarathon Motors109.58 @ 1
thumbzoomcbtcompany.comX447125.211In StockMarathon Electric Motors125.21 @ 1
thumbzoomelectricmotorwholesale.comX447239.01In StockMARATHON239.0 @ 1
thumbzoommotionindustries.com04436746319.731In StockMarathon Electric319.73 @ 1
thumbzoomemotorpro.comX447409.451In StockMarathon27.0409.45 @ 1
thumbzoommidwestapplianceparts.comX447-MT-P434.471In StockMarathon434.47 @ 1
thumbzoomZoroG002491773538.671In StockMarathon538.67 @ 1
thumbzoomGuardianMARSX447538.681In StockMarathon538.68 @ 1
thumbzoomGlobal IndustrialWBB871929755.01In StockMarathon Motors755.0 @ 1
