Marathon Electric X525

B007ZQMDB6

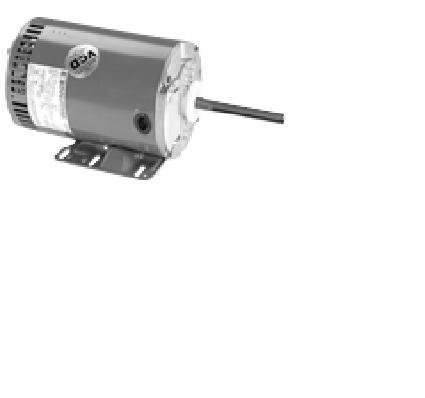

Marathon X525 56HZ Frame Condenser Fan/Heat Pump Motor, 3 Phase, Rigid Base, Open Air Over Shaft Up/Horizontal, Shaft Dimension 5/8" x 5", 7.2-6.8/3.4 amp, 2 hp, 1140 RPM, 208-230/460V

Marathon X525 56HZ Frame Condenser Fan/Heat Pump Motor, 3 Phase, Rigid Base, Open Air Over Shaft Up/Horizontal, Shaft Dimension 5/8" x 5", 7.2-6.8/3.4 amp, 2 hp, 1140 RPM, 208-230/460Vzoom

Attributes

Key Value
Amps7.2-6.8/3.4
applications:Climtrol and York Units.
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension16.68 (in.)
Catalog NumberX525
CEN
CompositionRolled Steel
CSAY
DE Bearing TypeBall
DEM ReferenceMA#X525
DutyContinuous
duty / condition type:Continuous Duty, Invert.
Duty CycleContinuous
Efficiency0.815
Efficiency %81.5 %
Electrical TypeSquirrel Cage Induction.
EnclosureOPAO, Open Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over)
enclosure type:OAO (Open Air-Over)
Family SeriesMarathon Electric Motors
Frame56HZ
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:56HZ
Frequency50 Hz, 60 Hz, 60/50
frequency rating:60 Hz
full load current:7.20
full load efficiency:81.50 %
Gross Weight0 lbs
Horsepower2 hp
HP2
Hz60
Insulation ClassB
insulation class:B
IP Code10
ip rating:10
Item NumberX525
Kilowatts1.5 kW
KVA CodeJ
ManufacturerMarathon Electric
Manufacturer Model #056T11O5310
Manufacturer Part Number056T11O5310
Max Ambient70?C
Maximum Ambient Tempera.70? C
motor category:Condenser Fan Motor
Motor Diameter6-1/2"
motor horsepower:2.00 hp, 2 hp
Motor OrientationHorizontal
motor phase:3 ph
Motor Shell Length9.56"
motor supply voltage:208-230/460 V
MountingBase
Mounting OrientationHorizontal
Mounting TypeRigid, Rigid Base
mounting type:Rigid Base
Net Weight40 lbs
Number of Poles6
Number of Speeds1
ODE Bearing TypeBall
Overall Length16.68", 16.68 "
Package Quantity1
Phase3
Product CategoryHVAC/R Motors > Commer.
Product TypeThree Phase
RotationReversible
RPM1140, 1100 - 1200, 1,14.
RPM (Nameplate)1140
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
service factor:1.00
Shaft Diameter0.63 ", 5/8 (in.), 5/8"
shaft diameter:0.63 in
Shaft Extension5.06 (in.)
Shaft Length5.06"
Shaft TypeSingle Special Extension
Ship Weight47 lbs.
Speeds1
standards met:UL, CSA
synchronous rpm:1200 rpm
Thermal ProtectionAutomatic
thermal protection:Automatic
Type of Overload Protec.Automatic
ULRecognized ( Not Protec.
Voltage208-230/460
Voltage (AC)208-230 VAC, 460 VAC
Volts208, 230, 460, 208-230/.
volts @ frequency:190/380 V @ 50 Hz;208-2.
weight:40 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonB007ZQMDB6393.251In Stock42Marathon Electric393.25 @ 1
AmazonTPB007ZQMDB6427.981In Stock2Marathon Electric427.98 @ 1
thumbzoomelectricmotorwholesale.comX525435.01In StockMARATHON435.0 @ 1
thumbzoomasapelectricmotors.comMARX525510.371In StockMARATHON510.37 @ 1
thumbzoomktool.netX525513.291In StockMarathon Motors513.29 @ 1
thumbzoommotionindustries.com03743230576.531In StockMarathon Electric576.53 @ 1
thumbzoomGlobal IndustrialWBB871650580.01In Stock17Marathon Motors580.0 @ 1
thumbzoomemotorpro.comX525623.141In StockMarathon47.0623.14 @ 1
thumbzoomGalcoX525-MARA626.761In StockMarathon Electric40.0626.76 @ 1
thumbzoommidwestapplianceparts.comX525-MT-P660.381In StockMarathon660.38 @ 1
thumbzoomNational Supply NetworkB871648664.991In StockMARATHON MOTORS664.99 @ 1
thumbzoomMRO Supply2269824673.531In StockMarathon Electric673.53 @ 1
us.rs-online.com73271613706.01In StockMarathon Motors706.0 @ 1
thumbzoomDreisilkerMA-RBC-X525822.541In StockMarathon822.54 @ 1
thumbzoomcbtcompany.comX525837.361In StockMarathon Electric Motors837.36 @ 1
industrialmotors.comX525891.61182MARATHON ELECTRIC891.6 @ 1
thumbzoomGuardianMARSX525915.761In StockMarathon915.76 @ 1
thumbzoomZoroG2049369281031.991In Stock10Marathon Motors1031.99 @ 1
uri.comX5251594.861In StockMarathon47.01594.86 @ 1
