Marathon Electric X527

B007ZQME4M

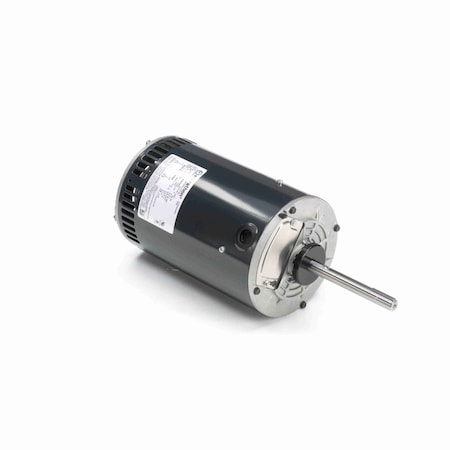

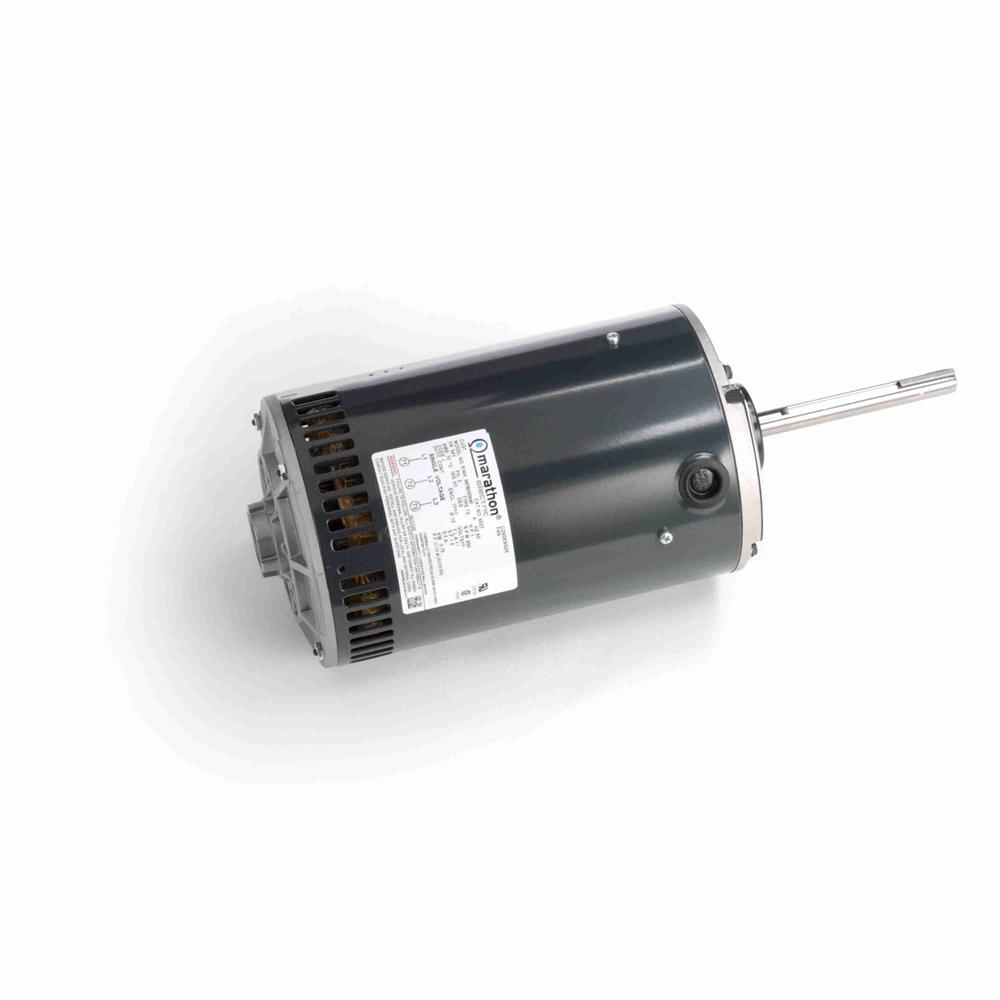

X527 56T8O5304 1 Hp 575 56Y FR 3 PH 850 Rpm

X527 56T8O5304 1 Hp 575 56Y FR 3 PH 850 Rpmzoom

Attributes

Key Value
Alternate Mfr Part Numb.056T8O5304
Amps2.1
BearingsBall
BrandMarathon
C-Dimension17.06 (in.)
Catalog NumberX527
CEN
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinous
Duty CycleContinuous
Efficiency0.745
Electrical TypeSquirrel Cage Induction.
EnclosureOPAO, Open Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over)
enclosure type:OAO (Open Air-Over)
Frame56Y
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:56Y
Frequency60
frequency rating:60 Hz
full load current:2.10 A
full load efficiency:74.50 %
Gross Weight0 lbs
HP1
Hz60
Insulation ClassH
IP Code10
KVA CodeJ
Manufacturer Model #056T8O5304
Max Ambient70?C
Maximum Ambient Tempera.70? C
motor category:Condenser Fan Motor
motor horsepower:1.00 hp, 1 hp
Motor OrientationHorizontal
motor phase:3 ph
Motor Shell Length9.56"
motor supply voltage:575 V
MountingBand
Mounting OrientationHorizontal
Mounting TypeRound Belly Band
mounting type:Belly Band
Number of Speeds1
ODE Bearing TypeBall
Overall Length17.06"
Phase3
Product CategoryHVAC/R Motors > Conden.
Product TypeThree Phase
RotationReversible
RPM900, 850
RPM (Nameplate)850
RPM (Number of Poles)8 (721 RPM to 900 RPM)
Service Factor1
service factor:1.00
Shaft Diameter5/8 (in.), 5/8"
Shaft Extension5.06 (in.)
Shaft Length5.06"
Shaft TypeSingle Special Extension
Ship Weight46 lbs.
Speeds1
standards met:UL, CSA
synchronous rpm:900 rpm
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Voltage575
Volts575
weight:45 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comX527468.01In StockMARATHON468.0 @ 1
thumbzoommotionindustries.com04741433495.671In StockMarathon Electric495.67 @ 1
thumbzoomGalcoX527-MARA524.961In StockMarathon Electric524.96 @ 1
thumbzoomemotorpro.comX527567.71In StockMarathon46.0567.7 @ 1
thumbzoomNational Supply NetworkB871650582.721In StockMARATHON MOTORS582.72 @ 1
us.rs-online.com72650054591.321In StockMarathon Motors591.32 @ 1
thumbzoomZoroG506629535604.851In StockMarathon604.85 @ 1
thumbzoomDreisilkerMA-RBC-X527644.491In StockMarathon644.49 @ 1
thumbzoomMRO Supply2269422728.971In StockMarathon Electric728.97 @ 1
thumbzoomGuardianMARSX527755.091In StockMarathon755.09 @ 1
