Marathon Electric X912

B0042GJD1A

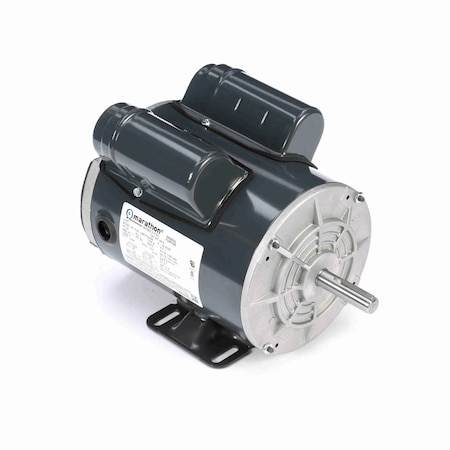

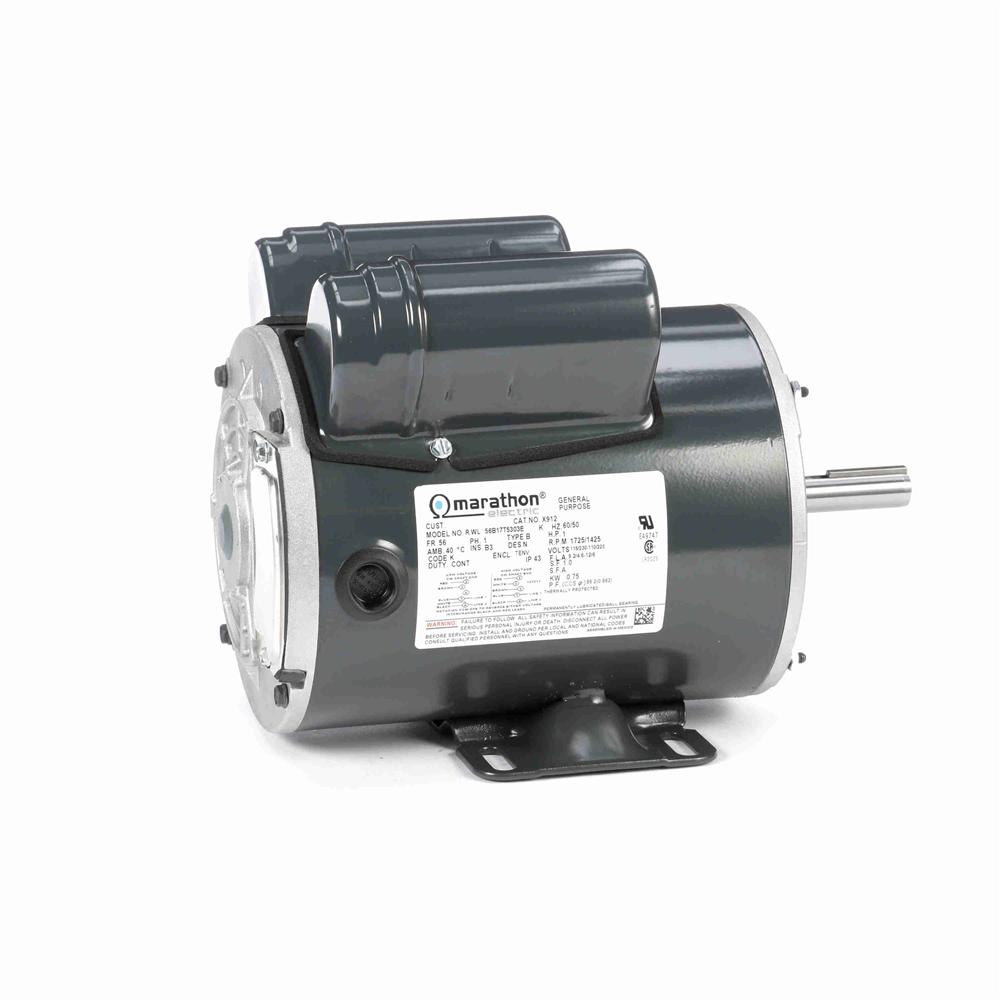

Marathon X912 56 Frame Totally Enclosed 56B17T5303 Farm Duty Belt Drive Motor, 1 hp, 1725 RPM, 115/230 VAC, 1 Phase, 1 Speed, Ball Bearing, Capacitor Start/Capacitor Run, Rigid Base

Marathon X912 56 Frame Totally Enclosed 56B17T5303 Farm Duty Belt Drive Motor, 1 hp, 1725 RPM, 115/230 VAC, 1 Phase, 1 Speed, Ball Bearing, Capacitor Start/Capacitor Run, Rigid Basezoom

Attributes

Key Value
Alternate Mfr Part Numb.056B17T5303
Amps9.2/4.6
applications:Crop Dryer, Agricultural
base rpm:1725 rpm
BearingsBall
BrandMarathon
C-Dimension11.44 (in.)
Catalog NumberX912
CEN
CSAY
DE Bearing TypeBall
DEM ReferenceMA#X912
DutyContinuous
duty / condition type:Continuous Duty, Farm D.
Duty CycleContinuous
Efficiency0.811
Electrical TypeCapacitor Start Capacit.
EnclosureTENV
Enclosure MaterialSteel
Enclosure TypeTENV (Totally Enclosed .
enclosure type:TEAO (Totally Enclosed .
Frame56
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:56
Frame Type56
Frequency60
frequency rating:60 Hz
full load current:9.20 / 4.60 A
Gross Weight0 lbs
HP1
Hz60
Insulation ClassB
insulation class:F
IP Code43
ip rating:43
KVA CodeK
Manufacturer Model #056B17T5303
Max Ambient40?C
Maximum Ambient Tempera.40? C
motor category:Aeration Fan Motor
Motor Diameter6-1/2"
motor horsepower:1.00 hp, 1 hp
Motor OrientationHorizontal
motor phase:1 ph
Motor Shell Length7.56"
motor supply voltage:115/230 V
MountingBase
Mounting OrientationHorizontal
Mounting TypeRigid Base
mounting type:Rigid Base
Number of Speeds1
ODE Bearing TypeBall
Overall Length11.44"
overall length (c-dimen.11.44 in
Package Quantity1
Phase1
Product CategoryLow Voltage NEMA Farm /.
Product TypeCapacitor Start/Capacit.
RotationReversible, Selective C.
RPM1700 - 1800, 1725
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1
service factor:1.00
Shaft Diameter5/8 (in.), 5/8"
shaft diameter:0.63 in
Shaft Extension2.32 (in.)
Shaft Length2.32"
Shaft TypeT
Ship Weight32 lbs.
Speeds1
standards met:UL, CSA
synchronous rpm:1800 rpm
Thermal ProtectionAutomatic
thermal protection:Thermostat
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Voltage115-230
Volts115, 230, 115/230
volts @ frequency:110/220 V @ 50 Hz;115/2.
weight:32 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comX912233.01In StockMARATHON233.0 @ 1
AmazonTPB0042GJD1A234.061In Stock2Marathon Electric234.06 @ 1
AmazonB0042GJD1A237.551In StockMarathon Electric237.55 @ 1
thumbzoomcshincorporated.comMX912300.721In StockMarathon32.0300.72 @ 1
thumbzoommotionindustries.com03900222318.291In StockMarathon Electric318.29 @ 1
thumbzoomapexindustrialautomation.comX912328.46169Marathon328.46 @ 1
thumbzoomGalcoX912-MARA337.111In StockMarathon Electric337.11 @ 1
thumbzoomMRO Supply2270203338.891In StockMarathon Electric338.89 @ 1
thumbzoomemotorpro.comX912351.731In StockMarathon32.0351.73 @ 1
thumbzoomGlobal IndustrialWBB869170364.951In StockMarathon Motors364.95 @ 1
thumbzoommidwestapplianceparts.comX912-MT-P376.121In StockMarathon376.12 @ 1
us.rs-online.com72650332379.731In StockMarathon Motors379.73 @ 1
thumbzoomZoroG806629389388.991In Stock10Marathon388.99 @ 1
thumbzoomNational Supply NetworkB869170397.91In StockMARATHON MOTORS397.9 @ 1
thumbzoomindustrialstores.comX912406.31In Stock26Marathon Motors406.3 @ 1
thumbzoomDreisilkerMA-RBC-X912413.861In StockMarathon413.86 @ 1
