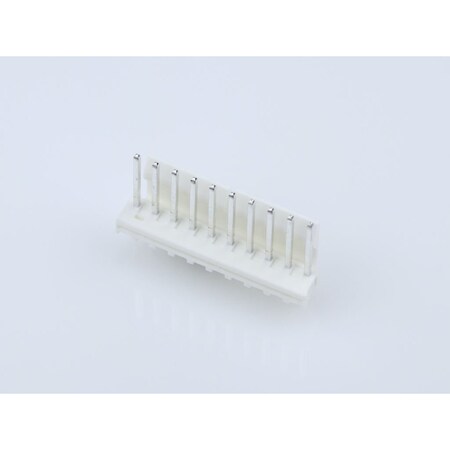

Molex / Waldom 171813-0010

mpn1718130010
brandname: Molex
manufacturername: Molex

171813-0010, (50 Items)

171813-0010, (50 Items)

zoom

Brand: Molex / Waldom
PartNumber: 171813-0010
Model: 171813-0010

Attributes

Key	Value
Applications	Automotive, General Pur.
Base Product Number	171813
Category	Connectors, Interconnec.
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Length - Mating	0.448"" (11.38mm)
Contact Length - Post	0.093"" (2.35mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	-
Fastening Type	Friction Lock
Features	-
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.446"" (11.33mm)
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	-
Material Flammability R.	UL94 V-2
Mfr	Molex
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Overall Contact Length	0.671"" (17.05mm)
Package	Bulk
Package Quantity	1
Part Status	Active
Pitch - Mating	0.156"" (3.96mm)
Row Spacing - Mating	-
Series	KK396, 171813
Shrouding	Shrouded - 1 Wall
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	171813-0010	0.6	1	598		MOLEX / WALDOM		0.6 @ 50
	Digi-Key	4424926	0.65058	4800	50		Molex		0.65058 @ 4800
	Newark	06X9770	0.902	4800	50		MOLEX		0.902 @ 4800
	Zoro	G905789953	0.99	4800	50		Molex		0.99 @ 4800
