- mpn80252564
- brandname: Ohaus
- manufacturername: Ohaus

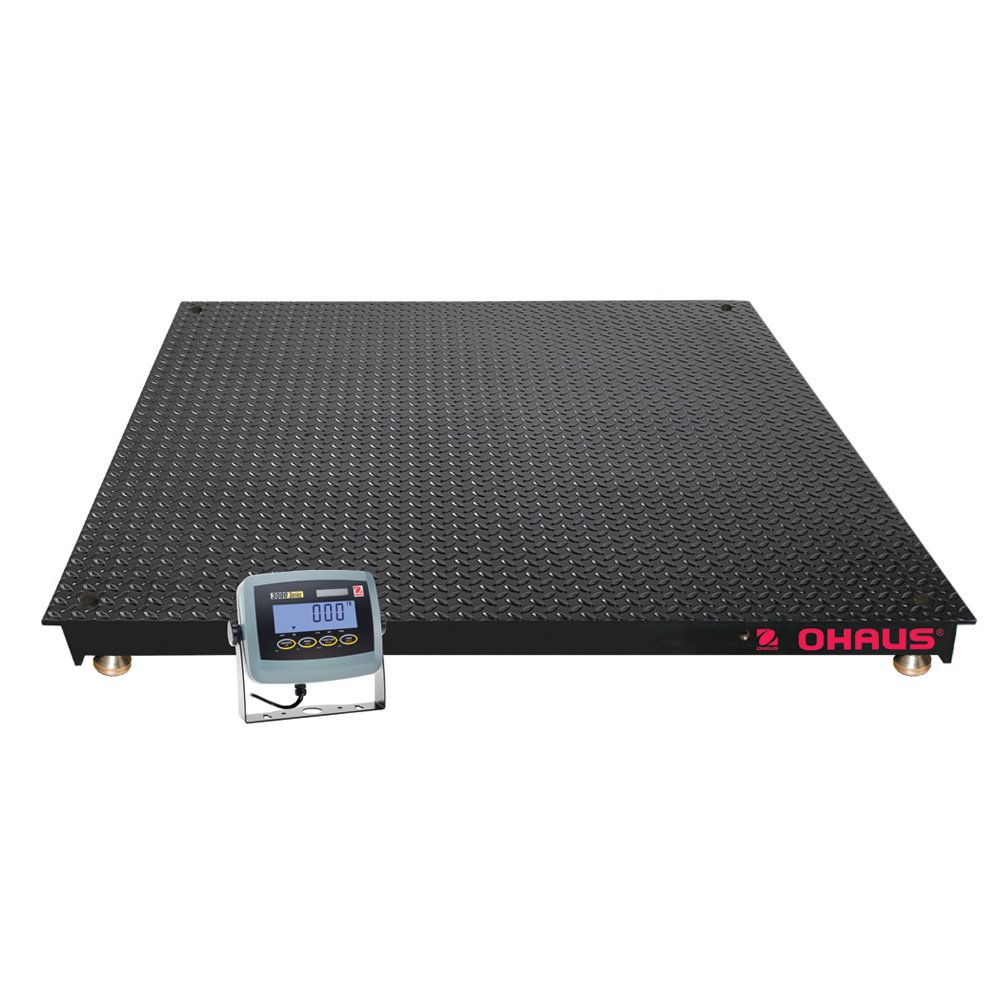

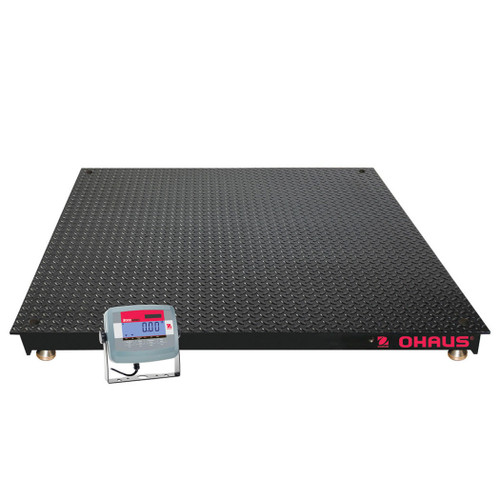

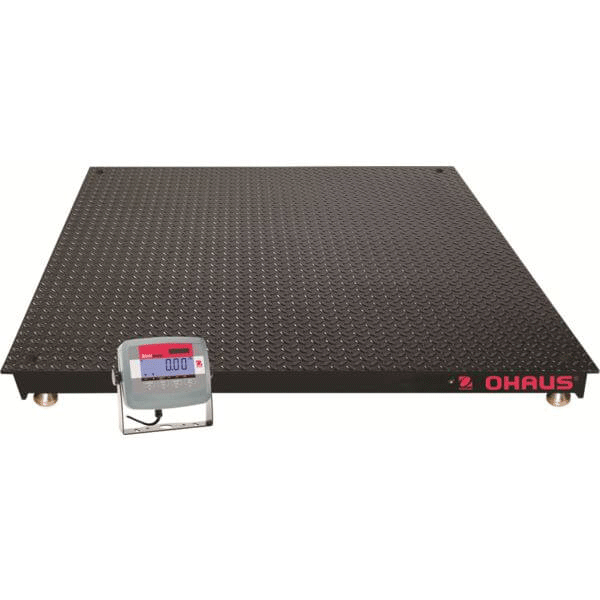

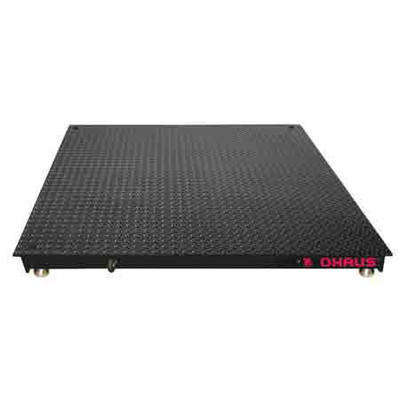

Ohaus ABS NTEP Certified VN Economical Floor Scale, 5000lbs x 1lbs, 5' Length x 5' Width Platform
- Brand: Ohaus
- PartNumber: 80252564
- Model: 80252564
- Size: 5000lb x 1lb, 5' W x 5' D x 3.5" H
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Ohaus
- Label: Ohaus
Attributes
| Key | Value |
|---|
| Application | Parts Counting, Weighing |
| Approvals | NTEP Certified |
| asin | B00KMBF3JK |
| Auto-Zero Tracking | Off, 0.5, 1 or 3d |
| Auto-zero Tracking | Off. 0.5. 1 or 3d |
| battery-life | 100 Hours with Recharge. |
| Brand | OHAUS |
| brand | VN Series Floor Scales |
| Calibration | No |
| Capacity | 5000 lbs., 5,000 lb |
| capacity-g | 2200000 |
| capacity-lb | 1 |
| Certified Readability (. | 1 lb |
| Class | III |
| communication | RS232 (Included) |
| Communication | RS232C bi-directional |
| Construction | 0.196 in painted carbon. |
| Country of Origin (subj. | China |
| Dimensions | 5 ft x 5 ft |
| dimensions | 3.5 in x 5 ft x 5 ft (9. |
| Display | Backlit LCD, 1 in high,. |
| Feet | 4 x self-swiveling ball. |
| gtin | 00030955172439 |
| HPIS Code | 770_180_35_20 |
| Indicator | T31P |
| Indicator Construction | ABS housing |
| Indicator Dimensions (W. | 8.2 x 2.8 x 6.5 in |
| Indicator Dimensions (W. | 8.2 x 2.8 x 6.5 in. / 2. |
| Interface | RS232C. bidirectional, . |
| IP Rating | IP67 for shear beam loa. |
| Item | Vn Series Vn31P5000x Fl. |
| Junction Box | NEMA4X/IP65, 304 stainl. |
| Keyboard | 4-button mechanical, 4-. |
| Latex Free | No |
| legal-for-trade | NTEP Certified |
| list-price | 2629.00 |
| Load Cell | 4 x 2.500 lb nickel-pla. |
| Load Cell Excitation Vo. | 10V DC ~max 15V |
| Load Cell Output Impeda. | 350 ohm |
| Manual | VN31P5000X_Manual.pdf |
| manufacturer-part-number | VN31P5000X |
| Maximum Central Load | 160% of maximum capacity |
| Model | VN31P5000X |
| model | VN31P5000X |
| Modes | Weighing. Counting (Cou. |
| Net Weight | 419 lb/190 kg |
| net-weight | 419 lb (190 kg) |
| ntep | Yes |
| NTEP | Yes |
| NTEP Resolution | 1:5,000 |
| Operating Temperature | 14? to 104?F / -10? to . |
| Operating Temperature R. | 14?F to 104?F |
| part-number | 80252564 |
| Platform Construction | 5mm / 0.2 in painted ca. |
| Platform Dimensions (W . | 5ft x 5ft x 3.5 in |
| Platform Dimensions (W . | 5 ft x 5 ft x 3.5 in. |
| platform-construction | Painted Steel Diamond P. |
| platform-size | 5 ft x 5 ft (1,524 mm x. |
| Power | AC Adapter, Rechargeabl. |
| power | AC Adapter (Included);R. |
| Product Type | Scale |
| Protection | IP67 for shear beam loa. |
| protection-rating | Not Applicable |
| Readability | 1 lb, 1 lb. |
| readability-certified | 1 lb (0.5 kg) |
| readability-lb | 5000 |
| Resolution | 1:5,000 |
| Safe Endload Capacity | 100% of maximum capacity |
| Scale Name | Floor Scales |
| Scale Shipping Dimensio. | 75.4 x 64 x 13.4 in |
| Shipping Weight | 533 lb / 242 kg |
| Span Calibration | 5 lb or kg to 100% of c. |
| Spec Sheet | VN31P5000X_Spec_Sheet.p. |
| Stabilization Time | Within 2 seconds, 2 sec. |
| tare-range | To capacity by subtract. |
| Unit of Measure | No |
| units-of-measure | Gram;Kilogram;Ounce;Pou. |
| warranty-covering-parts. | 1 Year |
| Weighing Units | lb or kg, lb, kg |
| Weight | 419 lb / 190 kg |
| working-environment | 14?F ? 104?F, 85%RH, no. |
| Zeroing Range | 0%. 2% or 100% of capac. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | dscbalances.com | 80252564 | 1.54595 | 1 | 64 | | Ohaus | 419.0 | 1.54595 @ 1 |
| Solutions Direct | 80252564 | 1213.1 | 1 | 12 | | Ohaus | | 1213.1 @ 1 |
 | unbeatablesale.com | OHAS008 | 1391.91 | 1 | 64 | | OHAUS | | 1391.91 @ 1 |
 | Megadepot | 80252564 | 1483.0 | 1 | In Stock | | Ohaus | | 1483.0 @ 1 |
 | usmegastore.com | 80252564 | 1520.0 | 1 | In Stock | | Ohaus | 533.0 | 1520.0 @ 1 |
 | spectraservices.com | 80252564 | 1616.4 | 1 | In Stock | | OHAUS | | 1616.4 @ 1 |
 | scalesplus.com | 80252564 | 1643.13 | 1 | In Stock | | OHAUS | 419.0 | 1643.13 @ 1 |
 | AmazonSC | B0051WAJ9O | 1699.0 | 1 | 64 | | Ohaus | | 1699.0 @ 1 |
 | sycamorelifesciences.com | 80252564 | 1899.0 | 1 | In Stock | | Ohaus | | 1899.0 @ 1 |
 | certifiedmtp.com | V025.80252564 | 2083.98 | 1 | In Stock | | Ohaus | | 2083.98 @ 1 |
 | Zoro | G4923747 | 2633.01 | 1 | 64 | 25 | Ohaus | 1.0 | 2633.01 @ 1 |
| graylinemedical.com | 80252564 | 2769.99 | 1 | In Stock | | Ohaus | | 2769.99 @ 1 |
