FirstPower 4FRE2

mpn4FRE2
brandname: Power First
manufacturername: Power First

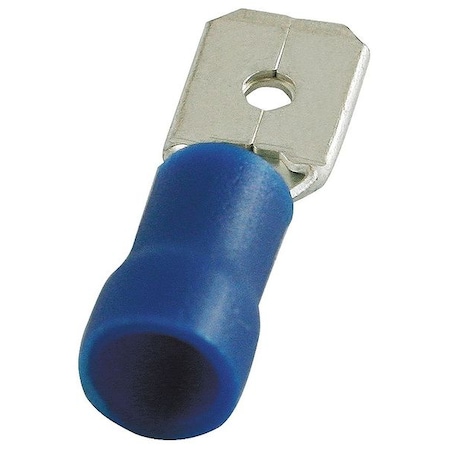

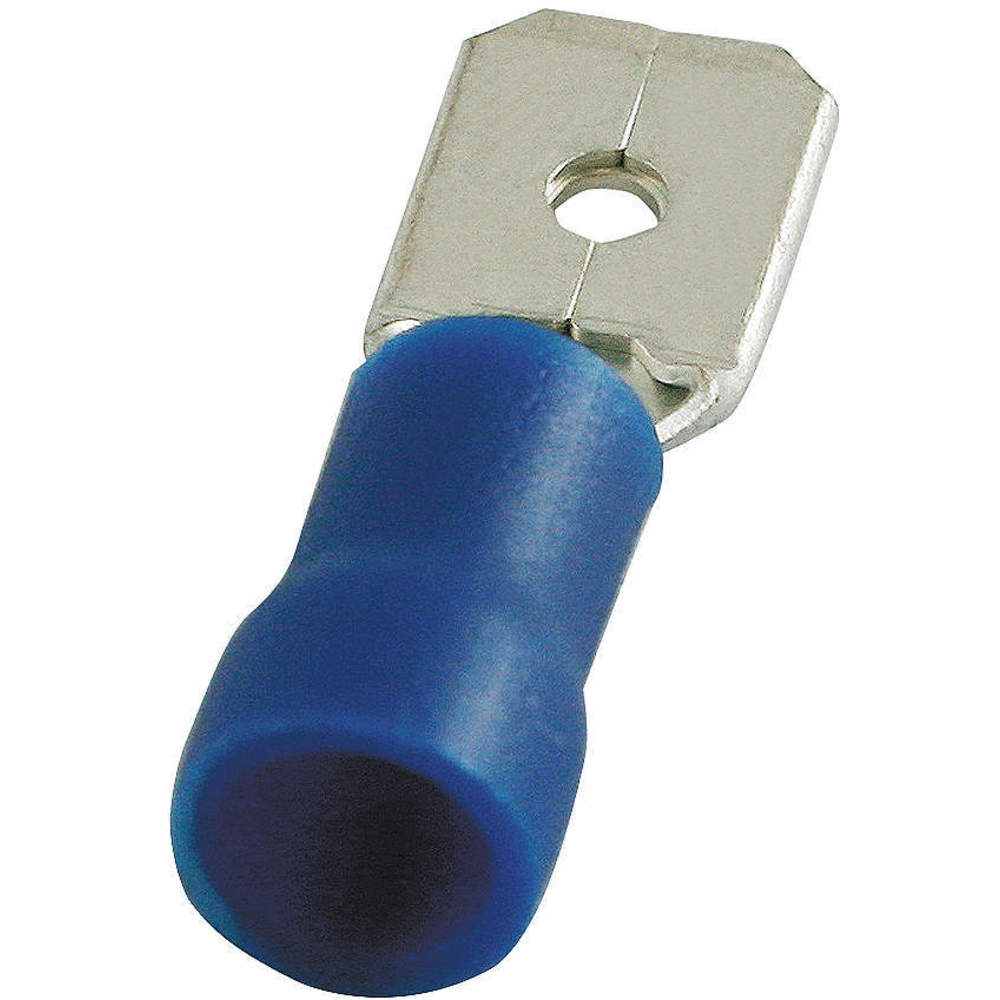

Male Disconnect,Blue,16-14AWG,PK100

Male Disconnect,Blue,16-14AWG,PK100

zoom

Brand: FirstPower
PartNumber: 4FRE2
PackageQuantity: 1
Binding: Misc.
Manufacturer: POWER FIRST
Label: POWER FIRST

Attributes

Key	Value
Barrel Inside Dia.	0.091 in
Barrel Inside Diameter	0.091 in
Barrel Outside Diameter	0.177 in
Barrel Size	Standard
Barrel Style	Crimp
Connection Material	Brass
Connection Orientation	Straight
Connection Type	Crimp
Contact Finish	Tin
Contact Material	Brass
Current	15 A
Disconnect Style	Tab
For Wire Size	14 AWG, 16 AWG
Insulation	Partial
Insulation Color	Blue
Insulation Colour	Blue
Insulation Coverage	Partial Coverage
Insulation Material	Vinyl
Insulation Type	Vinyl
Item	Male Disconnect
Max. Temp.	167 Degrees F
Max. Voltage	300 V
Maximum Operating Tempe.	167 Degrees F
Maximum Voltage	300V
Maximum Wire Size	14 AWG
Minimum Wire Size	16 AWG
Overall Length	0.827 in
RoHS Compliant	Yes
Seam	Butted
Seam Style	Butted
Standards	UL/cUL Listed, UL, cUL
Strip Length	1/4 in
Tab Size	0.032 in x 0.250 in
Tab Thickness	0.032 in
Tab Width	0.25 in
Terminal Type	Tab
Termination Style	Crimp
UL 94 Flammability Rati.	V-0
Wire Range	16 to 14 AWG
Wire Size Range	16 AWG - 14 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	grainger.ca	GGE4FRE2	12.94837904	1	100		POWER FIRST	0.15	12.94837904 @ 100
	Zoro	G0674527	15.29	1	1179		Power First	1.68	15.29 @ 100
	sustainablesupply.com	C1199506	28.59	1	100		Power First	0.15	28.59 @ 100
	Raptor Supplies	AD7NYV	32.045598	1	100		POWER FIRST		32.045598 @ 100
	AmazonTP	B01N2AGK7P	33.67	1	100	3	POWER FIRST		33.67 @ 100
