FirstPower 4FRF3

mpn4FRF3
brandname: POWER FIRST
manufacturername: POWER FIRST

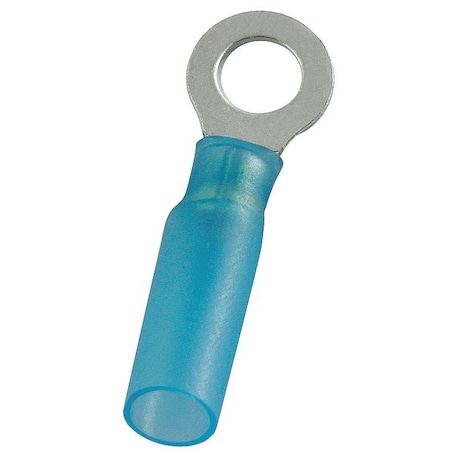

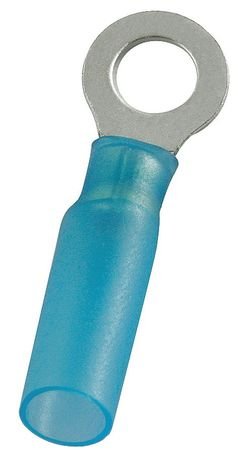

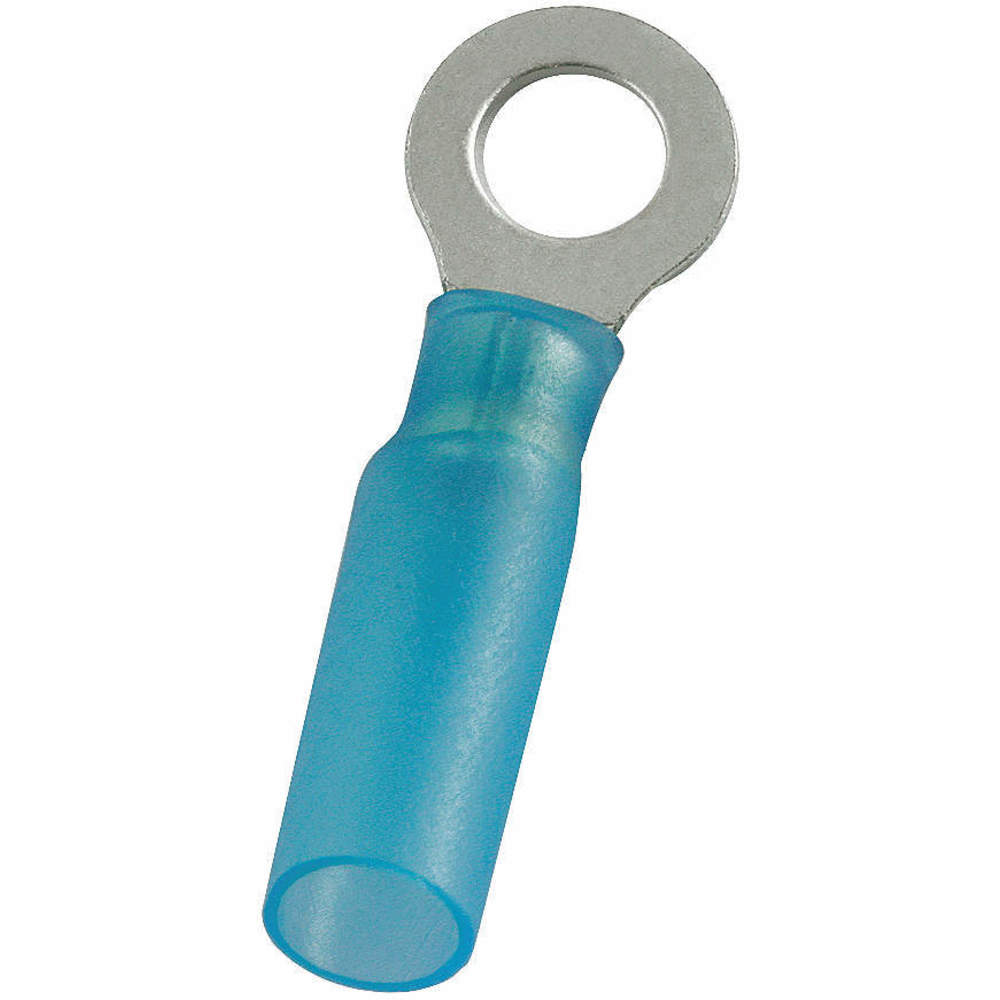

Ring Term, Heat Shrk, 8, 1.20 in., PK25

Ring Term, Heat Shrk, 8, 1.20 in., PK25

zoom

Brand: FirstPower
PartNumber: 4FRF3
Model: 4FRF3
PackageQuantity: 1
Manufacturer: POWER FIRST
Label: POWER FIRST

Attributes

Key	Value
Barrel Size	Standard
Barrel Style	Heat Shink Tubing Water.
Compatible with Product.	Insulated Stranded Copp.
Connection Material	Copper
Connection Orientation	Straight
Connection Type	Crimp
Contact Finish	Tin
Contact Material	Copper
For Wire Size	14 AWG, 16 AWG
For Wire Sizes	16 AWG to 14 AWG
Hole Diameter	0.17 in
Insulation Color	Blue
Insulation Colour	Blue
Insulation Coverage	Partial Coverage
Insulation Material	Polyolefin
Insulation Type	Heat Shrink
Item	Ring Terminal
Max. Temp.	221 Degrees F
Max. Voltage	600 V
Maximum Operating Tempe.	221 Degrees F
Maximum Voltage	600V
Maximum Wire Size	14 AWG
Minimum Operating Tempe.	221 Degrees F
Minimum Wire Size	16 AWG
Overall Length	1.2 in
Ring Width Ranges	0.26 - 0.50 inches
RoHS Compliant	Yes
Seam	Brazed
Seam Style	Brazed
Special Features	Heat-Shrink Insulation .
Standards	UL/cUL Listed E96029, U.
Strip Length	1/4 in
Stud Size	#8
Terminal Connection	Crimp
Terminal Shape	Ring Terminal
Terminal Type	Standard
Termination Style	Crimp
Tongue Thickness	0.03 in
Tongue Width	0.34 in
Tongue Width - Wire Con.	0.36 in
UL 94 Flammability Rati.	HB
Wire Range	16 to 14 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	grainger.ca	GGE4FRF3	11.9032184	1	25		POWER FIRST	0.05	11.9032184 @ 25
	Zoro	G2952196	16.19	1	115		Power First	0.05	16.19 @ 25
	sustainablesupply.com	C1199515	23.87	1	25		Power First	0.05	23.87 @ 25
	Raptor Supplies	AD7NZF	34.838973	1	25		POWER FIRST		34.838973 @ 25
