FirstPower 4FRF7

mpn4FRF7
brandname: Power First
manufacturername: Power First

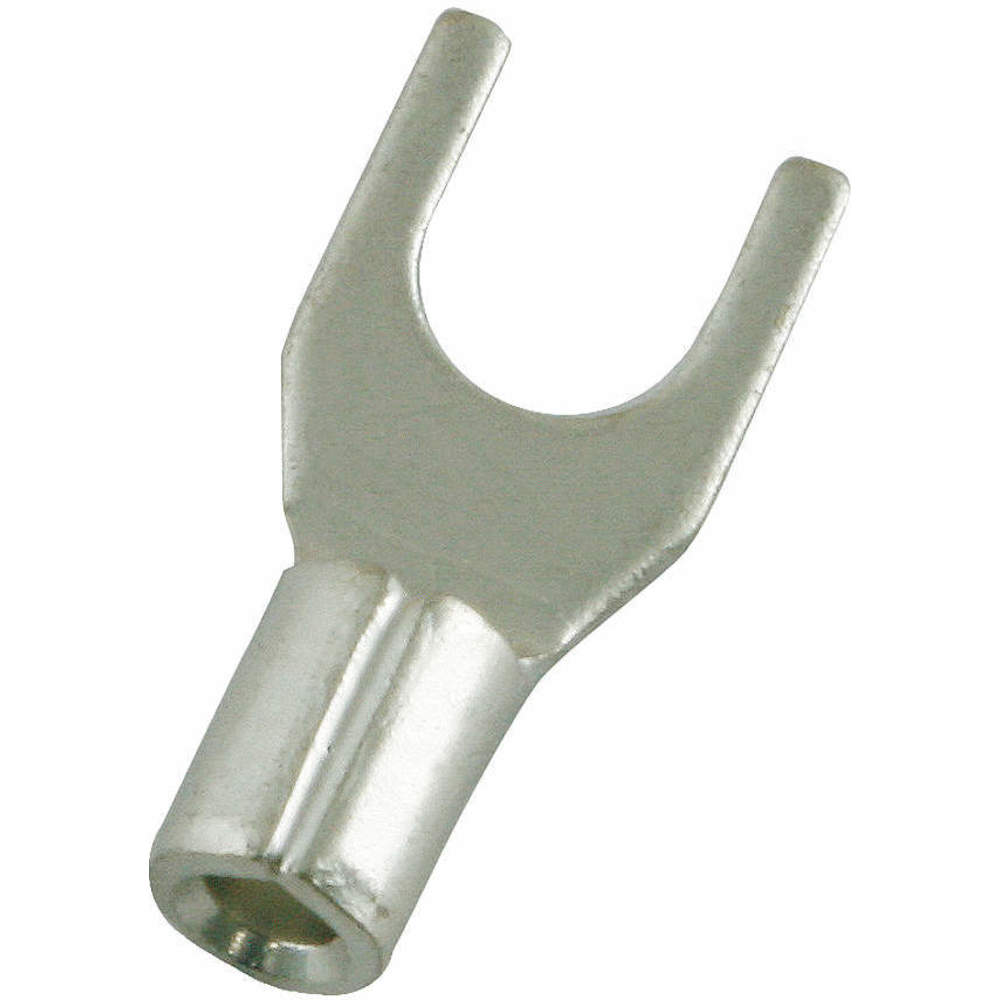

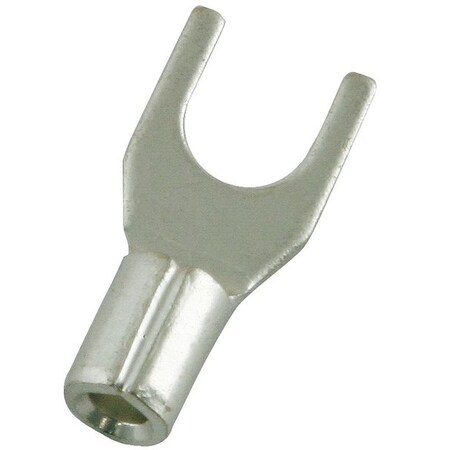

Fork Terminal, Block, 6 Stud, Bare, PK100

Fork Terminal, Block, 6 Stud, Bare, PK100

zoom

Brand: FirstPower
PartNumber: 4FRF7
PackageQuantity: 1
Manufacturer: POWER FIRST
Label: POWER FIRST

Attributes

Key	Value
Barrel Length	0.189 in
Barrel Style	Crimp
Compatible with Product.	Insulated Stranded Copp.
Connection Material	Copper
Connection Type	Crimp
Contact Finish	Tin
Contact Material	Copper
For Wire Size	16 AWG, 18 AWG, 20 AWG,.
Insulation Color	Bare
Insulation Colour	Bare
Insulation Coverage	None
Insulation Material	None
Insulation Type	Non-Insulated
Item	Fork Terminal
Max. Temp.	257 Degrees F
Max. Voltage	600 V
Maximum Operating Tempe.	302 Degrees F
Maximum Voltage	600V
Maximum Wire Size	16 AWG
Minimum Wire Size	22 AWG
Overall Length	0.63 in
RoHS Compliant	Yes
Seam	Brazed
Seam Style	Brazed
Standards	UL/cUL Listed E96029, U.
Strip Length	1/4 in
Stud Size	#6
Terminal Connection	Crimp
Terminal Shape	Standard
Terminal Type	Standard
Termination Style	Crimp
Tongue Length	0.441 in, 0.00 - 0.50 i.
Tongue Thickness	0.03 in
Tongue Width	0.252 in
Tongue Width - Wire Con.	0.24 in
Wire Range	22 to 16 AWG
Wire Size Range	22 AWG - 16 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	grainger.ca	GGE4FRF7	10.04515504	1	100		POWER FIRST	0.11	10.04515504 @ 100
	Zoro	G3026441	11.79	1	100		Power First	0.11	11.79 @ 100
	sustainablesupply.com	C1199519	15.51	1	100		Power First	0.11	15.51 @ 100
	Raptor Supplies	AD7NZK	26.3135925	1	100		POWER FIRST		26.3135925 @ 100
