THUEMLING BC-LFP-100-F

mpnBC-LFP-100-F
brandname: Thuemling
manufacturername: Thuemling

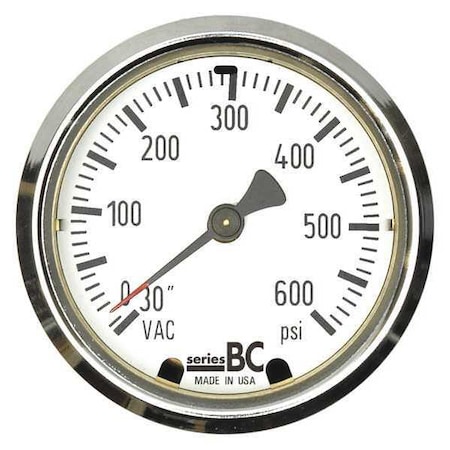

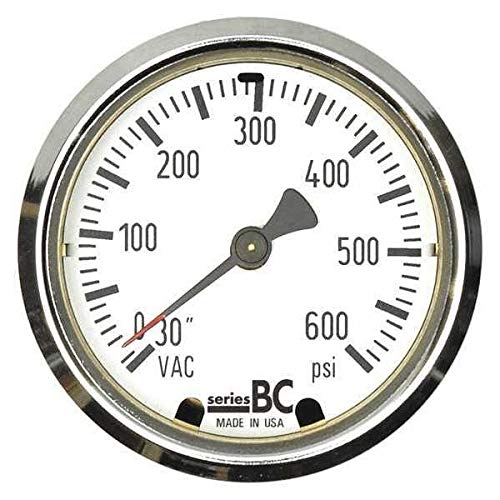

Thuemling Compound Gauge 30 Hg Vac to 600 psi

Brand: THUEMLING
PartNumber: BC-LFP-100-F
Model: BC-LFP-100-F
PackageQuantity: 1
Manufacturer: THUEMLING
Label: THUEMLING

Attributes

Key	Value
Accuracy	+/- 1.5% Full Scale, +/.
Accuracy Grade	ASME B40.100 Grade 1A
Accuracy Scale	Full Scale
Ambient Operating Tempe.	-40 Degrees to 150 Deg.
Application	Fire Monitoring
Basic Gauge Case Materi.	Stainless Steel
Bezel Material	Chrome
Blowout Safety Back	No
Brand	Thuemling
Case Color	Black
Case Construction	Corrosion Resistant
Case Depth	1.85 in
Case Diameter	4.21 in
Cleaned for Oxygen Serv.	No
Color	White on Black
Compatible Process Media	Liquid
Connection Location	Back
Connection Size	1/4 in NPT
Dial Color	White
Dial Face Material	Aluminum
Dial Size (In.)	4
Diameter	4.21"
Dry Dampening Feature	None
Field Fillable	No
For Use With	Media Compatible with B.
Freeze Resistant Moveme.	No
Gauge Application	General Purpose
Gauge Case Liquid	Glycerin
Gauge Case Material	Cast Brass
Gauge Connection Size	1/4 in
Gauge Connection Type	MNPT
Gauge Nominal Dial Size	4 in
Gauge Primary Range Uni.	psi
Gauge Primary Range Val.	-30 to 0 to 600
Hazardous Location Rati.	Not Rated
Includes Calibration Ce.	No
Includes Mounting Hardw.	No
Includes Vent Plug	No
International Shipping	No
IP/NEMA Rating	Not Rated
Item	Panel-Mount Compound Ga.
Lens Material	Acrylic
Liquid-Filled Case	Yes
Manufacturer Warranty L.	1 yr
Manufacturers Warranty .	1 yr
Material	Brass
Mounting Type	U-Clamp
Mpn	BC-LFP-100-F
Nominal Dial Size	4 in
Non-Sparking	No
Panel Mount Characteris.	Mounting Studs
Panel-Mountable	Yes
Pointer Material	Aluminum
Pressure Gauge Type	Industrial Pressure Gau.
Pressure Range Type	Compound
Primary Pressure Range	30 to 0 to 600
Primary Pressure Scale .	Black
Primary Scale Minor Gra.	10
Primary Scale Units	in Hg/psi
Process Connection Gend.	Male
Process Connection Loca.	Lower Back
Process Connection Size	1/4 in
Process Connection Type	NPT
Prop 65	WARNING: Cancer and Rep.
Range	30 in Hg Vac to 600 psi
Removable Bezel	No
Scale Type	Single
Sensor Material	Bronze
Sensor Type	Bourdon Tube
Series	BC
SKU	ZO-G6300281
Socket Material	Brass
Standards	ASME
SubCategory	Test Instruments
Vibration Resistance	Liquid-Filled

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Zoro	G6300281	115.95	1	1	Thuemling	2.93	115.95 @ 1
simsupply.com	ZO-G6300281	134.61	1	In Stock	Thuemling		134.61 @ 1
Grainger	52VR84	150.37	1	In Stock	THUEMLING		150.37 @ 1
