- mpnRCJ 3/4
- brandname: Timken
- manufacturername: Timken

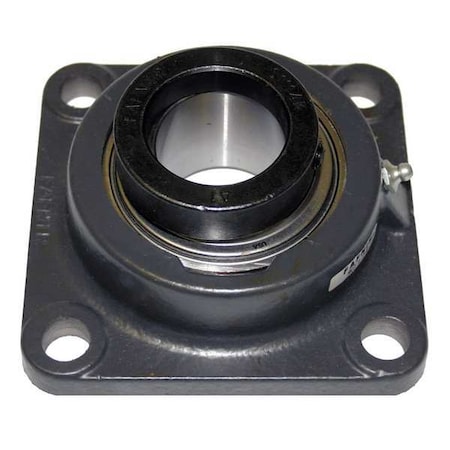

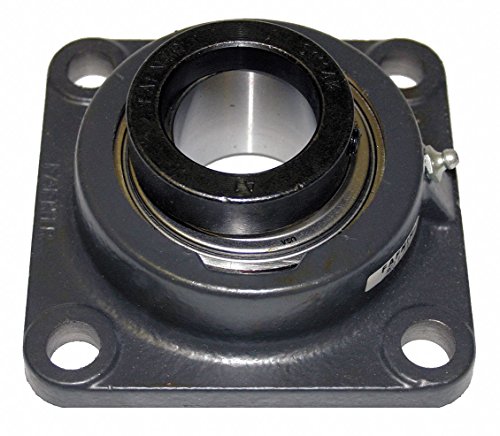

2 TIMKEN FAFNIR RCJ 3/4 BALL BEARING T10736
- Brand: TIMKEN
- PartNumber: RCJ 3/4
- PackageQuantity: 1
- Manufacturer: Timken
- Label: Timken
Attributes
| Key | Value |
|---|
| Back Side to Center Wid. | 0.78 in |
| Bearing Housing Materia. | Cast Iron |
| Bearing Insert Material | 52100 Chrome Steel, All. |
| Bearing Insert Type | Ball, Radial Ball |
| Bearing Material Grade | 52100 |
| Bolt Center-to-Center L. | 2-1/2 in |
| Bolt Size | 3/8 in |
| Bore | 0 Inch | 0 Millimeter |
| Bore Dia. | 3/4 in |
| Bore Diameter | 3/4 in |
| Bore Type | Cylindrical |
| Brand | TIMKEN |
| Cartridge Pilot Depth | 1.721 Inch | 43.713 Mil. |
| Category - BDI | 31171501 |
| Closure | Double Sealed |
| Description: | Ball Flange Unit |
| Dimension A | 1 5/32 in |
| Dimension B | 2 1/2 in |
| Dimension C | 1 25/32 in |
| Dimension D | 2 3/8 in |
| Dimension E | 1 51/64 in |
| Dimension J | 2 1/2 in |
| Dimension L | 3 3/8 in |
| Dimension N | 27/64 in |
| Dimension S | 1 3/64 in |
| Dynamic Load Capacity | 3,192.446 lbf |
| EAN | M06110 |
| Expansion / Non-expansi. | 27/64 Inch |
| Finish | Uncoated |
| Flange Mounting Type | 4-Bolt |
| Flange Thickness | 0.437 in |
| Harmonized Tariff Code | Bearing |
| Housing Configuration | No Pilot |
| Housing Material | Cast Iron, Non-expansion |
| Housing Material Finish | Powder Coated |
| Housing Style | Ball Bearing |
| Housing Type | Square |
| Inch - Metric | Single Row | Normal Dut. |
| Included Bearing | G1012KRRB |
| Insert Part Number | Double Land Riding Rubb. |
| Item | 4 Bolt Flange Bearing |
| Keyword String | RCJ 3/4 |
| Length Thru Bore | 2.5 Inch | 63.5 Millime. |
| Load Capacity | 14300 lb Dynamic/1400 l. |
| Locking Device | Eccentric Collar |
| Long Description | 0 Inch | 0 Millimeter |
| Lubricant Material | NLGI #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Manufacturer | TIMKEN CO |
| Manufacturer Item Number | 4 Bolt Square Flange Bl. |
| Manufacturer Name | N/A |
| Manufacturer URL | 1.6 |
| Maximum Speed | 9,200 RPM, 6270 rpm |
| Maximum Temperature | 200 Degrees F |
| MFG Part #: | RCJ 3/4 |
| Minimum Buy Quantity | 0.73 |
| Minimum Temperature | -65 Degrees F |
| Mount Hole Center-to-Ce. | 2.5 in |
| Mount Hole Center-to-Ce. | 2.5 in |
| Mount Hole Size | 0.394 in |
| Mounting Bolt Size | 3/8 in |
| Mounting Bolts | Yes |
| Mounting Method | 4 Bolt Square Flange Bl. |
| Nominal Bolt Circle Dia. | 0.75 Inch | 19.05 Milli. |
| Noun | Flanged |
| Number of Mount Holes | 4 |
| Number of Mounting Holes | Eccentric Collar |
| Other Features | Flange Block |
| Overall Depth | 1.828 in |
| Overall Height | 3.374 in, 1 51/64 in, 3. |
| Overall Length | 3.374 in, 3 3/8 in |
| Overall Length/Diameter | 3-3/8 in |
| Overall Width | 3 3/8 in, 1.827 in |
| Pilot Configuration | Inch |
| Product Group - BDI | 4 |
| Relubricatable | G1012KRRB |
| Rolling Element | Cast Iron |
| Rolling Element Rows | 1 |
| Seal Type | Shroud Seal |
| Seals | 1 Piece Solid |
| Series | RCJ |
| Shaft Locking Type | Eccentric Collar |
| Static Radial Load Capa. | 1,461.33 lbf |
| Supplier: | TIMKEN CO |
| System of Measurement | Inch |
| Temperature Rating | -30 to 275 deg F |
| Type | Industrial Normal Duty |
| UNSPSC | 8483.20.40.40 |
| UPC: | 087796056732 |
| Weight / Kilogram | 0087796056732 |
| Weight / LBS | 3.5 Inch | 90 Millimeter |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | BDI Express | RCJ 3/4 | 78.17384057 | 1 | 2 | | TIMKEN | 1.606 | 78.17384057 @ 2 |
 | MRO Supply | 5076140 | 86.08 | 1 | 2 | 14 | Timken | 1.3 | 86.08 @ 2 |
 | Purvis | RCJ3/4 | 102.44 | 1 | 2 | | Timken | | 102.44 @ 2 |
 | FinditParts | 1599644 | 112.65 | 1 | 2 | | TIMKEN | | 112.65 @ 2 |
 | Zoro | G8300853 | 118.03 | 1 | 2 | 15 | Timken | 1.6 | 118.03 @ 2 |
| kscdirect.com | TIM RCJ 3/4 | 143.03 | 1 | 2 | | TIMKEN CO | | 143.03 @ 2 |
| Grainger | 46R456 | 152.41 | 1 | 2 | | TIMKEN | | 152.41 @ 2 |
