- mpn901-9531-2
- brandname: Amphenol RF
- manufacturername: Amphenol RF

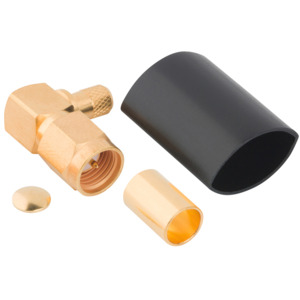

RF Connectors / Coaxial Connectors SMA RA PLG STD CABLE CRIMP
- PartNumber: 901-9531-2
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Amphenol RF
- Label: Amphenol RF
Attributes
| Key | Value |
|---|
| Alternate Part No. | 523-901-9531-2 |
| Angle | Right Angle |
| Base Product Number | 901-95 |
| Body Finish | Gold |
| Body material | Stainless Steel |
| Body Material | Stainless Steel |
| Body plating | Gold |
| Body Style | Right Angle |
| Brand | Amphenol RF |
| Cable Group | RG-58, 58A, 58B, 58C, 1. |
| Cable Type | RG-58 ; RG-141 ; Belden. |
| Category | Connectors, Interconnec. |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector | Plug |
| Connector Style | SMA |
| Connector Type | Plug, Male Pin |
| Contact material | Beryllium Copper |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
| Contact plating | gold-plated |
| Contact Termination | Solder |
| Coupling Mechanism | Threaded |
| Dielectric Material | Polytetrafluoroethylene. |
| Electrical mounting | crimped, |
| Fastening Type | Threaded |
| Features | - |
| Frequency | 18GHz |
| Frequency - Max | 18 GHz |
| Gender | Plug |
| Housing Color | Gold |
| Impedance | 50Ohm, 50 Ohms |
| Includes | 4 pcs - 1 Connector, 1 . |
| Ingress Protection | Weatherproof |
| Insertion Loss | - |
| Insulation Resistance | 5000 MOhms |
| Insulator material | PTFE |
| Kind of cable | Belden 7806A, |
| Kind of connector | male |
| Manufacturer | Amphenol RF, Amphenol |
| Manufacturer Part No. | 901-9531-2 |
| Mating Cycles | 100, 500 |
| Max. frequency | 12.4GHz |
| Maximum Frequency | 12.4 GHz |
| Mechanical durability | 100 cycles |
| Mechanical mounting | for cable |
| Mfr | Amphenol RF |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line),. |
| Number of Ports | 1 |
| Operating Temperature | -65?C ~ 165?C |
| Operating temperature | -65...165?C |
| Operating Temperature R. | - 65 C to + 165 C |
| Orientation | Right Angle |
| Package | Bulk |
| Packaging | Bulk |
| Part # Aliases | 901-9531-2 |
| Part Status | Active |
| Polarity | Standard |
| Primary Type | SMA |
| Product | Connectors |
| Product Category | RF Connectors / Coaxial. |
| RF Series | SMA |
| Series | SMA Series, -, SMA |
| Shield Termination | Crimp |
| Spatial orientation | angled 90? |
| Special Features | Heat Shrink Tubing |
| Termination | Solder |
| Termination Style | Cable - Crimp |
| Type | Cable Plug |
| Type of connector | SMA |
| Voltage Rating | 500 V |
| Wave impedance | 50? |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hotenda | H838159 | 19.67 | 1 | In Stock | | Amphenol RF | | 19.67 @ 1 |
 | swatee.com | 901-9531-2 | 28.67 | 1 | 8 | | Amphenol | | 28.67 @ 1 |
 | Radwell | 901-9531-2 | 30.0 | 2 | In Stock | | AMPHENOL | | 30.0 @ 2 |
| Hawk Electronics | 901-9531-2 | 33.4 | 25 | In Stock | | Amphenol-RF | | 33.4 @ 25 |
 | jensentools.com | 57449.1 | 38.21 | 1 | In Stock | | Amphenol RF | | 38.21 @ 1 |
| us.rs-online.com | 70141827 | 40.17 | 25 | In Stock | | Amphenol RF | | 40.17 @ 25 |
| Digi-Key | 3593432 | 40.74 | 250 | 41 | | Amphenol RF | | 40.74 @ 1 |
| TME | 901-9531-2 | 46.73 | 1 | In Stock | | AMPHENOL RF | | 46.73 @ 1 |
