Bell & Gossett 4RD16

B002SIXS1A

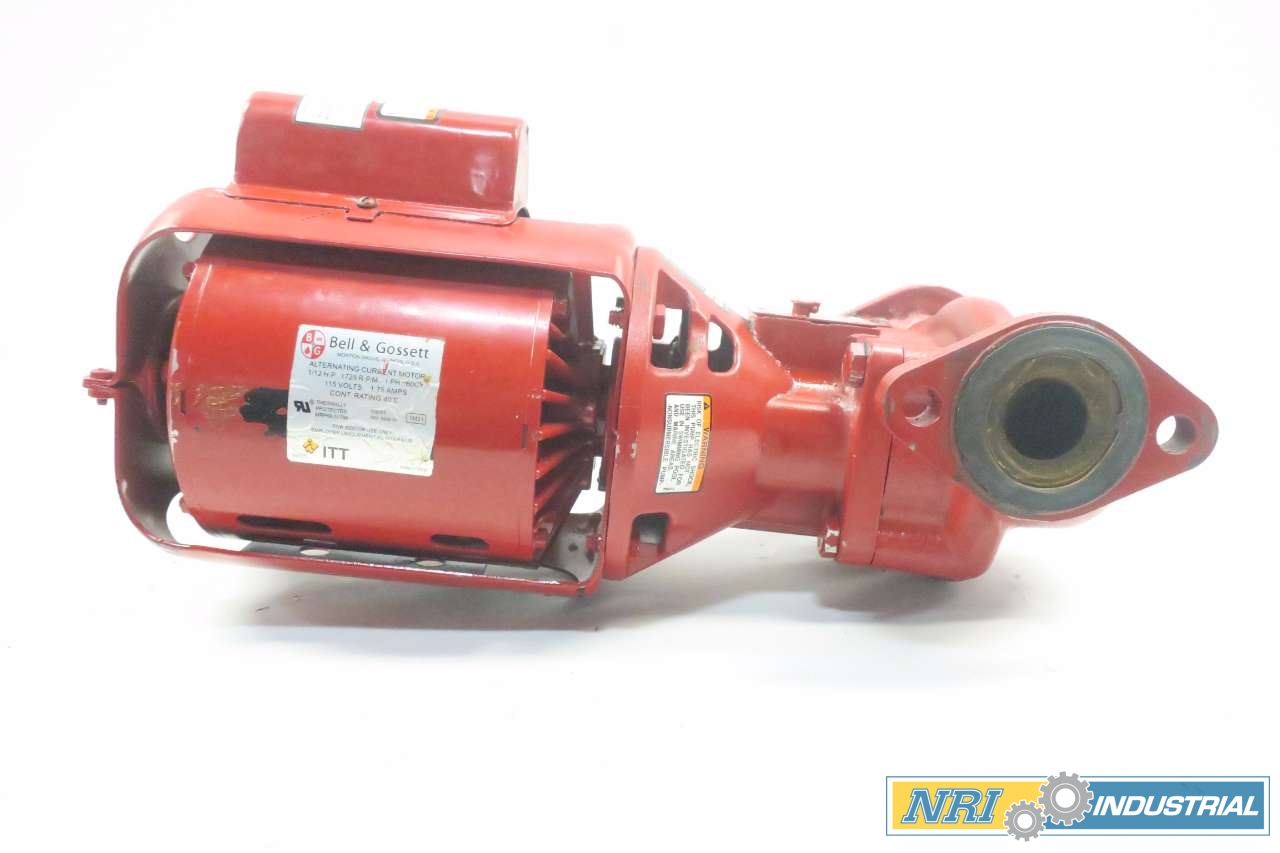

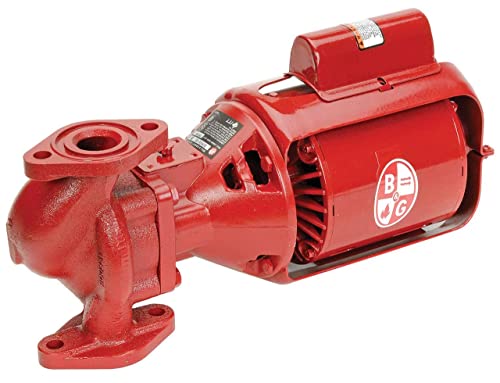

Bell & Gossett Circulating Pump Series 100 Model 100 NFI 1/12 hp 115 Volts

Bell & Gossett Circulating Pump Series 100 Model 100 NFI 1/12 hp 115 Voltszoom

Attributes

Key Value
Amps1.75 A
Compatible Discharge Pi.3/4 in, 1 in, 1 1/4 in,.
Compatible Intake Pipe .3/4 in, 1 in, 1 1/4 in,.
Connection TypeFlange
Face to Face Dimension6 3/8 in
Flange or Union IncludedNo
For Use With Potable Sy.Yes
Frequency60 Hz
Horsepower1/12
Impeller MaterialSteel
IncludesAuto Thermal Protection.
ItemHydronic Circulating Pu.
Manufacturer Warranty L.1 yr
Maximum Feet of Head8 ft
Maximum Flow Rate @ 1 F.32 gpm
Maximum Flow Rate @ 10 .32 gpm
Maximum Flow Rate @ 5 F.22 gpm
Maximum Flow Rate @ 50 .22 gpm
Maximum Media Temperatu.225 Degrees F
Maximum Operating Press.125 psi
Maximum RPM1,725 RPM
Mounting LocationIn-Line
Nameplate Voltage115V AC
Number of Speeds1
Overall Length14.88 in
Overall Width4.25 in
PhaseSingle
Pump Housing MaterialCast Iron
Pump Type3-Piece
Series100 NFI
Series FamilySeries 100

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD548034114.951In StockBELL & GOSSETT114.95 @ 1
thumbzoomRaptor SuppliesAD9EJC719.56222651In StockBELL & GOSSETT719.5622265 @ 1
grainger.caWWG4RD16748.385824661In StockBELL & GOSSETT20.1748.38582466 @ 1
