Century FL1038

mpnFL1038
brandname: Century
manufacturername: Century

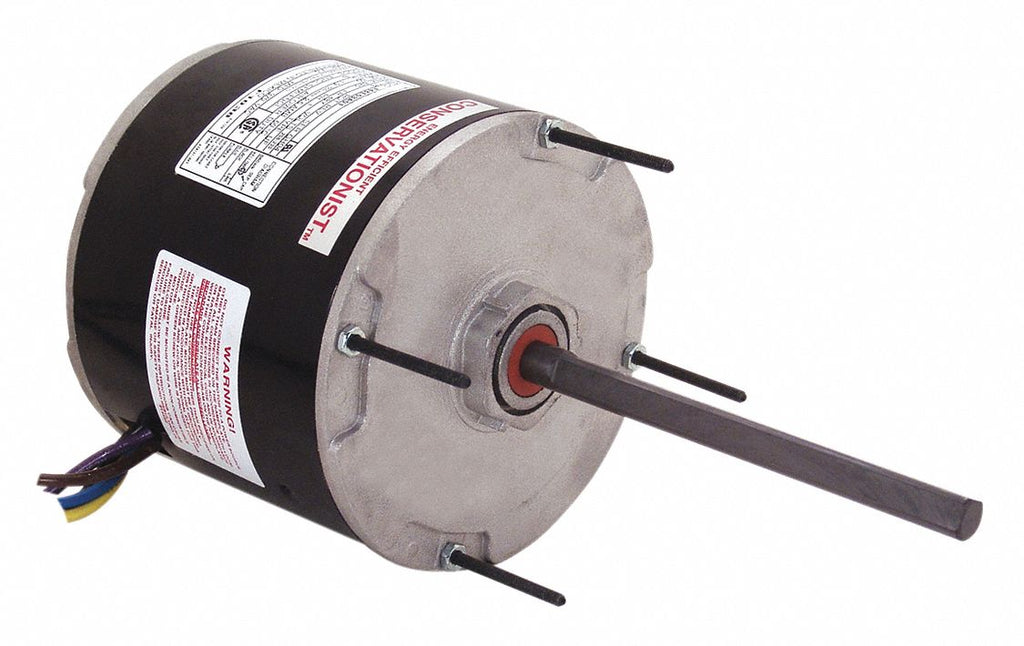

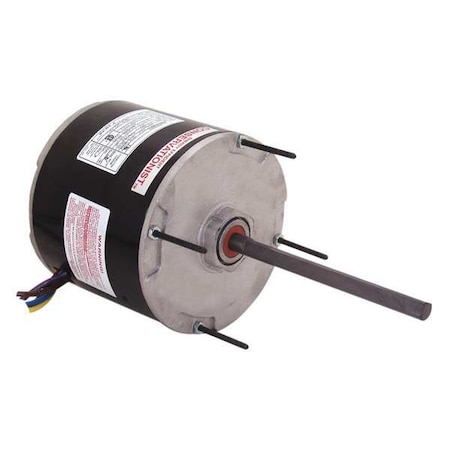

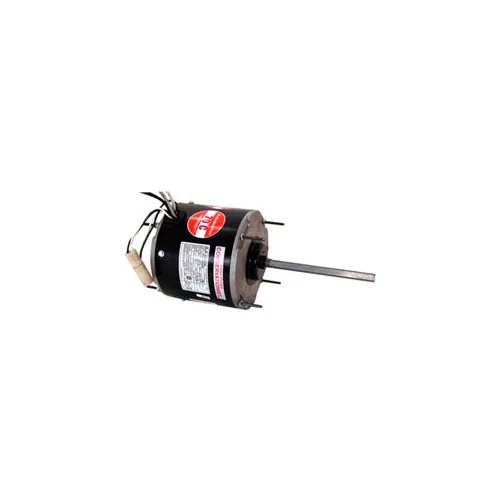

Condenser Fan Motor, 1/3 HP, 825 RPM, 60 Hz

Brand: Century
PartNumber: FL1038
Model: FL1038
Size: 8-32 x 1-5/8"
PackageQuantity: 1
Binding: Misc.
Manufacturer: CENTURY
Label: CENTURY

Attributes

Key	Value
Amps	4.8
Bearings	Ball
Body Dia.	5 5/8 in
Bolt Circle Dia.	5 3/16 in
Brand	Century
C-Dimemsion	11.74 (in.)
Capacitor	7.5MFD @ 370VAC Required
Capacitor Required	2MDV6
Catalog Number	FL1038
CE	N
CSA	Y
Current Stock	9
DE Bearing Type	Ball
DEM Reference	NOHP
Duty	Air Over
Duty Cycle	Continuous
Electrical Type	Permanent Split Capacit.
Enclosure	Semi Enclosed
Enclosure Type	ODP (Open Dripproof)
FL1038 is listed in Cen.	A.O. Smith F48U73A01, G.
Frame	48Y
Frame Material	Rolled Steel
Frequency	60
HP	1/3
Hz	60
Insulation Class	B
International Shipping	No
IP Code	-
KVA Code	-
Lead Length	27 in
Lead Time	Expected to ship in 1-2.
Length Less Shaft	6 1/4 in
Max Ambient	60?C
Maximum Ambient Tempera.	60? C
Motor Bearings	Ball
Motor Design	Permanent Split Capacit.
Motor Diameter	5-5/8"
Motor Enclosure Design	Open Air-Over
Motor Mounting Type	Stud
Motor Orientation	Any
Motor Shaft Rotation	CW/CCW
Mounting	Band/Ring/Stud
Mounting Stud Length	1 5/8 in
Mounting Type	Extended Studs
Mpn	FL1038
Nameplate RPM	825
No. of Speeds	1
Number of Speeds	1
ODE Bearing Type	Ball
Overall Length	11 3/4 in
Phase	1, Single
Product Category	HVAC/R Motors > Conden.
Product Type	PSC (Permanent Split Ca.
Resilient Ring Dia.	Not Applicable
Rotation	Reversible
RPM	825
RPM (Nameplate)	825
RPM (Number of Poles)	8 (721 RPM to 900 RPM)
RPM Range	0-1,000
Service Factor	1
Service Factor (SF)	1.00
Shaft Dia.	1/2 in
Shaft Diameter	1/2 (in.), 1/2"
Shaft Extension	5.5 (in.)
Shaft Length	5 1/2 in, 6.44"
Shaft Type	Double Flat
Ship Weight	16 lbs.
SKU	ZO-G1405433
Speeds	1
Stud Quantity	4
Stud Size	#8-32
SubCategory	Motors/HVAC Motors
Thermal Protection	Automatic
Type of Overload Protec.	Automatic
UL	Recognized
Voltage	115V AC
Volts	115
