- mpnC40795
- brandname: CLEVELAND
- manufacturername: CLEVELAND

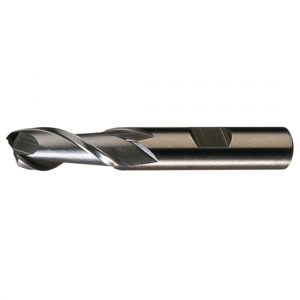

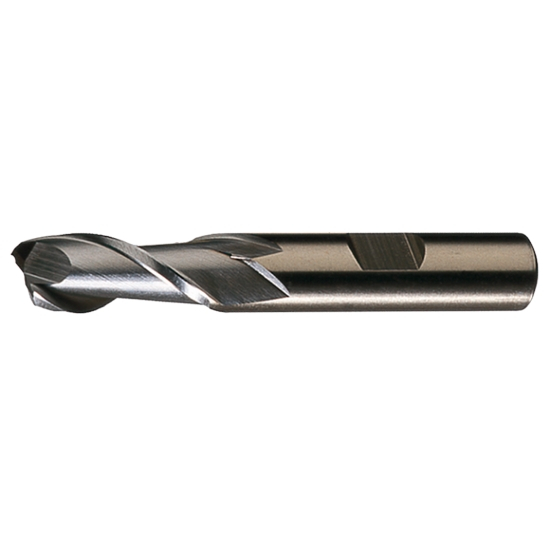

CLEVELAND Sq. End Mill,Single End,Pow Met,5/16" C40795
- Brand: Cleveland
- PartNumber: C40795
- Model: C40795
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLEVELAND
- Label: CLEVELAND
Attributes
| Key | Value |
|---|
| Cast Iron (K) Compatibi. | No |
| Center Cutting: | Yes |
| Chip-Breaker | No |
| Construction: | High Performance Finish. |
| Corner Radius | 0.000 in |
| Country of Origin (subj. | United States |
| Cutter Diameter | 5/16 in |
| Cutting Direction | Right Hand |
| Cutting Direction - Mac. | Right Hand |
| Decimal Equivalent: | 0.3125"/7.94mm |
| Diameter Fractional: | 5/16" |
| Dimension Type | Fractional Inch |
| Double Ended: | No |
| Drilling Tool Configura. | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Material | Powdered Metal |
| End Mill Style | Square |
| End Style: | Square |
| Finish | Bright, Bright (Uncoate. |
| Finish - Machining | Bright (Uncoated) |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Hand of Spiral Cut: | RHS / RHC |
| Hardened (H) Compatibil. | No |
| Helix Angle | 37 deg, 37 Degrees |
| Item | Square End Mill |
| Length of Cut | 3/4 in |
| Length of Cut: | 0.7500"/ 19.05mm |
| List Number | PM-2 |
| List Style: | PM-2 |
| Material | HSS-E (PM), PM HSS-E |
| Material - Machining | Powdered Metal |
| Material Grade - Machin. | Heavy Duty |
| Material: | Powdered Metal |
| Measurement System | Fractional Inch |
| Milling Dia. | 5/16 in |
| Milling Diameter | 5/16" |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| Non Ferrous (N) Compati. | Yes |
| Number of Flutes | 2 |
| Number of Flutes: | 2 |
| Overall Length | 2-1/2 in, 2 1/2 in |
| Overall Length: | 2.5000"/63.50mm |
| Primary Material Applic. | All Materials |
| Primary Material Applic. | H, K, M, N, P, S |
| Series | PM-2 |
| Shank Dia. | 3/8 in |
| Shank Diameter | 3/8 in |
| Shank Diameter: | 0.3750"/9.52mm |
| Shank Type | Straight/Weldon Flat, W. |
| Shank Type - Machining | Weldon Flat |
| Shank: | Straight w/ Weldon Flats |
| Single End/Double End | Single End |
| Stainless (M) Compatibi. | Yes |
| Steel (P) Compatibility | Yes |
| Style | PM-2 |
| Super Alloy (S) Compati. | Yes |
| Surface Condition | Bright |
| Surface Condition: | Bright |
| Tool Size | 5/16" x 3/8" x 3/4" x 2. |
| Type | Center Cutting Single E. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6116553 | 29.89 | 2 | In Stock | | Cleveland | | 29.89 @ 2 |
 | usmegastore.com | C40795 | 31.42 | 1 | In Stock | | Cleveland | | 31.42 @ 1 |
| Grainger | 438L71 | 34.1 | 1 | In Stock | 8 | CLEVELAND | | 34.1 @ 1 |
 | Megadepot | C40795 | 35.99 | 1 | In Stock | | Cleveland | | 35.99 @ 1 |
 | Zoro | G2975021 | 36.0 | 1 | In Stock | | Cleveland | 0.07 | 36.0 @ 1 |
 | sustainablesupply.com | C2769593 | 43.96 | 1 | In Stock | | Cleveland | 0.06 | 43.96 @ 1 |
