Woodhead / Molex 4R4P00A27C300

B09C1K7P3R

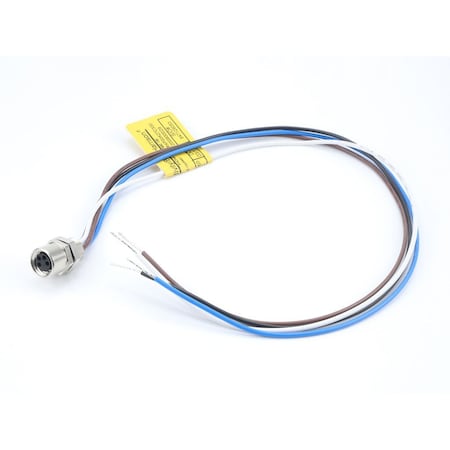

4R4P00A27C300,Cable Assembly Wire Lead 0.3m 24AWG Circular 4 POS F Nano-Change (M8) (5 Items)

4R4P00A27C300,Cable Assembly Wire Lead 0.3m 24AWG Circular 4 POS F Nano-Change (M8) (5 Items)zoom

Attributes

Key Value
Alternate Mfr Part Numb.4R4P00A27C300
ASINB00DWIBQFK
Batteries Required?No
Body OrientationBody Orientation
BrandWoodhead / Molex, Molex
Cable Length0.98 ft
Cable TypeSingle Ended
Catalog Number4R4P00A27C300
Connector Angle Cable e.Straight
Connector SizeM8
Connector Type Cable en.M8 Female
Connector Type Cable en.Pigtail
Contact GenderMale
Contact MaterialCopper
Contact PlatingGold over Nickel
Coupling TypeInternal Thread
Current - Maximum per C.4.0A
Current Rating4.0A
Family NameNano-Change (M8)
GenderFemale
Housing MaterialBrass
IP RatingIP67
Item model number1200900029
Item Package Quantity1
KeywayNone
Length0.30m
ManufacturerWoodhead, Molex
Material - ComponentNickel-plated Brass
Mating TypeThreaded
Mounting Thread SizeM8 x 0.5
Mounting TypeCable Mount
NEMA Rating6
Number Of Contacts4
OrientationStraight
Panel MountFront
Part Number1200900029
Plug/SocketSocket
Poles4
Series120090, 120090 Series
Special FeaturesNot Low-Halogen
StockStock
Temperature Range - Ope.-20?C to +105?C
Termination MethodCrimp
TypeIndustrial
ULE46237
UPC786788330590
UPC Code78678833059
Voltage - Maximum60V AC / 75V DC
Voltage Rating60.0 V , 75.0 V
Wire Size AWG24

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Radwell120090002911.3412MOLEX11.34 @ 2
Onlinecomponents.com120090002914.831164Woodhead / Molex14.83 @ 2
WaldomMOLEX 4R4P00A27C30015.2712Molex15.27 @ 2
Verical120090002915.88228Molex15.88 @ 2
thumbzoomWalker Industrial120090002916.720210Molex16.7 @ 20
thumbzoomCarlton Bates Company7867883305917.8612MOLEX17.86 @ 2
thumbzoomturtle.comWOO 4R4P00A27C30019.6812Molex19.68 @ 2
Mouser538-120090002920.06112Molex20.06 @ 2
thumbzoomcrescentelectric.com102225220.1412Woodhead / Molex20.14 @ 2
HotendaH3263920.2412Molex20.24 @ 2
AmazonSCB00DWIBQFK22.9512Molex22.95 @ 2
thumbzoomRS Delivers822-162424.69612Molex24.696 @ 2
Digi-Key1469265028.6722Molex28.67 @ 2
us.rs-online.com7006920028.8612Molex Woodhead/Brad28.86 @ 2
Newark93Y096332.65154MOLEX32.65 @ 2
thumbzoomZoroG776634985.7712Molex85.77 @ 2
thumbzoomkempstoncontrols.co.uk4R4P00A27C300178.46314212Molex178.463142 @ 2
thumbzoomgordonelectricsupply.com4R4P00A27C300461.812155WOODHEAD461.8 @ 2
