Appleton GRFX100A

B0080KY7OW

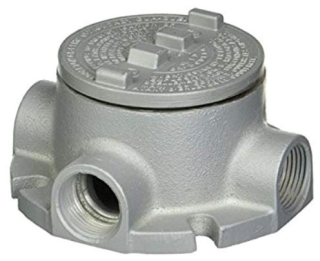

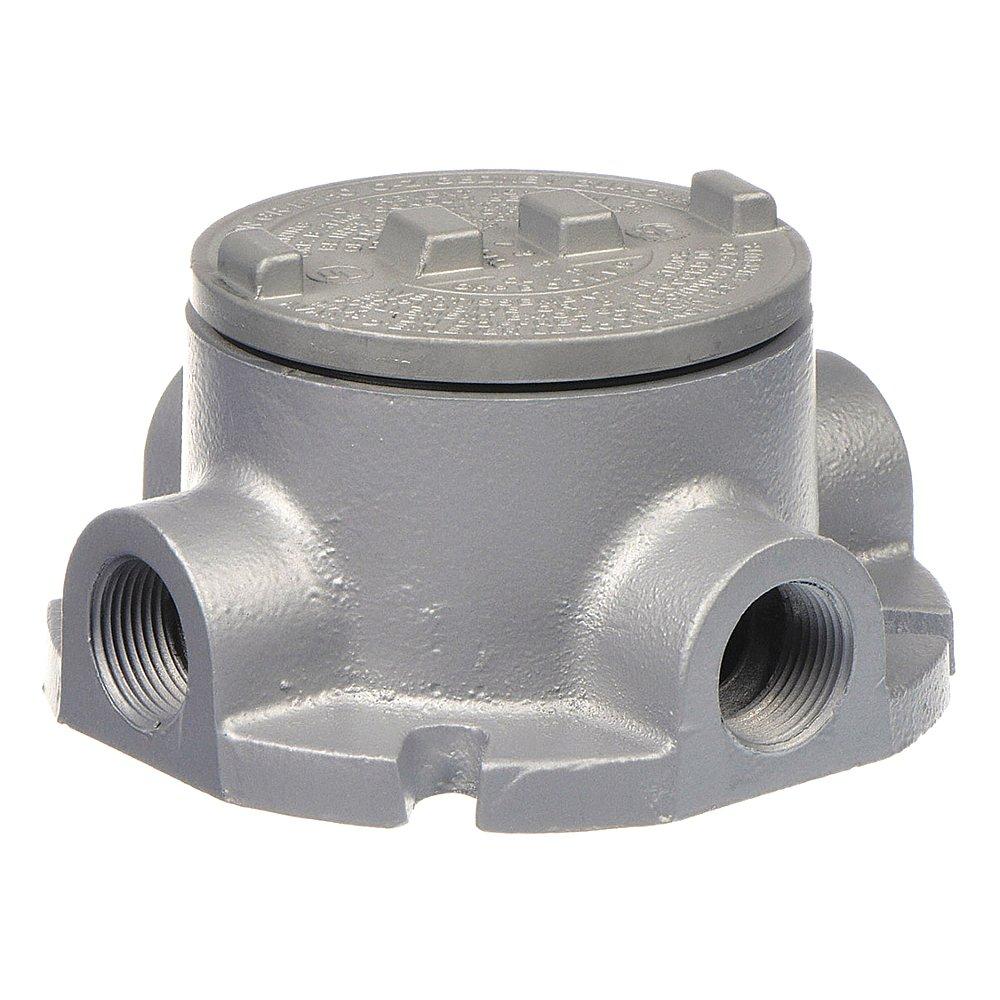

APPLETON GRFX100A 1 GR FLANGED UNILET Type X

APPLETON GRFX100A 1 GR FLANGED UNILET Type Xzoom

Attributes

Key Value
ApplicationFor Use With Threaded M.
ApprovalsCSA, UL
Back TypeFlat
Body StyleX
Box CompositionAluminum
BrandAppleton
Cable Entry(4) 1 IN GRFX Hub
Cable Entry:1
Capacity18 CU-IN
Catalog NumberGRFX100A
CategoryOutlet Box
ColorGray
CommentsExplosionproof,Dust-Ign.
Compatible Conduit Trad.1 in
Conduit Outlet Body Cap.18.0 cu in
Conduit Outlet Body Hub.1 in
Conduit Outlet Body Hub.Threaded
Conduit Outlet Body Mat.Copper Free Aluminum
Conduit Outlet Body Sty.X
Conduit Outlet Body TypeConduit Outlet Body
Conduit Outlet Hub Size1"
Conduit TypeIMC (Intermediate Metal.
Country of OriginMX, Mexico
Cover CompositionAluminum
Cover IncludedYes
Cover Opening Size3.38 in
Cover TypeBlank
Cubic Capacity18 CU IN
Cubic Capacity:18 CU-IN
Cubic Inches18 in?
Description:1 GR FLANGED UNILET TY.
Diameter1 in
Dimensions5.38 in Dia x 2.75 in H
Exposure RatingIndoor, Outdoor
Family SeriesAppleton Electrical Box.
FinishEpoxy Powder Coated
For Use WithThreaded IMC
FormForm 1
Gross Weight0 lbs
GTIN00781381621915
Hazardous LocationYes
Height4.0000
Height UOMInch
Hub Size (in)1 "
ItemConduit Outlet Body
Item NumberGRFX100A
Item TypeFlanged Outlet Box
KnockoutsNo
Knockouts:No
Length6.5000
Length UOMInch
Made in USANo
ManufacturerAppleton Electric, Appl.
Manufacturer Part NumberGRFX100A
MaterialCopperfree (4/10 Of 1 P.
Material:Copperfree (4/10 Of 1 P.
MFG Part #:GRFX100A
Mounting TypeFlanged
Net Weight0 lbs
Number of Hubs4
Number Of Outlet:4
O-Ring IncludedYes
Overall Height2 7/8 in
Overall Length7 in
Overall Width3 3/4 in
Product SeriesGRF
RoHS IndicatorContact Manufacturer
SeriesGRF
ShapeX
Size1, 1 in
Size:1 in
Special FeaturesFlanged, Explosionproof.
StandardClass 1, Zone 1 And 2 I.
Standard:Class 1, Zone 1 And 2 I.
StandardsUL 886, CSA C22.2 No. 2.
Sub BrandUNILETS
Sub Brand:UNILETS
Suitable For Use WithThreaded Metallic Condu.
Supplier:Appleton-Emerson Indust.
Thread Size1 in
Thread TypeNPT
Trade Size1 in
TypeX-Style Dust-Ignitionpr.
Type:Flanged Outlet Box
UNSPSC39121308
UPC781381621915
UPC:781381621915
Weight1.830
Weight UOMPounds
Width6.0000
Width UOMInch

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Dale-ElectricGRFX100A67.171In StockAppleton Electric Co67.17 @ 1
thumbzoomgordonelectricsupply.comGRFX100A76.231In Stock380APPLETON76.23 @ 1
thumbzoomZoroG418522189.771In Stock15Appleton Electric1.8389.77 @ 1
thumbzoomGalcoGRFX100A-APTN124.631In StockAppleton124.63 @ 1
kscdirect.comAPP GRFX100A130.851In StockAppleton-Emerson Industrial Automation130.85 @ 1
thumbzoomPlatt.com0481487140.221In StockAppleton140.22 @ 1
thumbzoomcrescentelectric.com3445202.551In StockAppleton202.55 @ 1
thumbzoomRaptor SuppliesAF2FJC226.1963341In StockAPPLETON ELECTRIC226.196334 @ 1
