Goulds Pump 2BF50712

B009V2VRZA

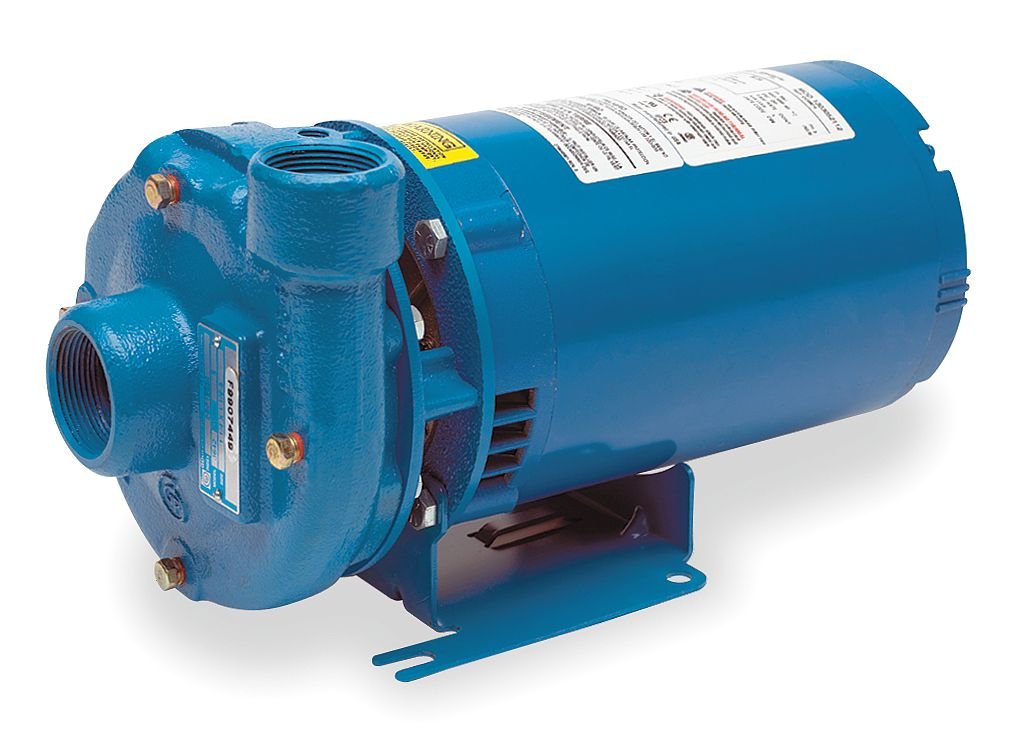

Cast Iron 3/4 HP Centrifugal Pump, 1 Phase, 115/230VAC Voltage

Cast Iron 3/4 HP Centrifugal Pump, 1 Phase, 115/230VAC Voltagezoom

Attributes

Key Value
Best Efficiency Flow42 gpm
Best Efficiency Head22 ft
BrandGoulds Water Technology
Compatible Discharge Pi.1 1/4 in
Compatible Intake Pipe .1 1/2 in
Compatible with Media T.Water
ConnectionNPT
Current Stock3
Discharge1-1/4"
Discharge Rotation90 Degrees Increments
Discharge TypeNPT
Duty CycleContinuous
ElastomersBUNA-N
FeaturesCompact Design, Frame-M.
Flow Rate @ 1 ft of Hea.Not Applicable
Flow Rate @ 10 ft of He.Not Applicable
Flow Rate @ 100 ft of H.Not Applicable
Flow Rate @ 120 ft of H.Not Applicable
Flow Rate @ 140 ft of H.Not Applicable
Flow Rate @ 15 ft of He.Not Applicable
Flow Rate @ 160 ft of H.Not Applicable
Flow Rate @ 180 ft of H.Not Applicable
Flow Rate @ 20 ft of He.70 gpm
Flow Rate @ 200 ft of H.Not Applicable
Flow Rate @ 220 ft of H.Not Applicable
Flow Rate @ 240 ft of H.Not Applicable
Flow Rate @ 260 ft of H.Not Applicable
Flow Rate @ 280 ft of H.Not Applicable
Flow Rate @ 30 ft of He.55 gpm
Flow Rate @ 300 ft of H.Not Applicable
Flow Rate @ 40 ft of He.Not Applicable
Flow Rate @ 5 ft of Hea.Not Applicable
Flow Rate @ 50 ft of He.Not Applicable
Flow Rate @ 60 ft of He.Not Applicable
Flow Rate @ 70 ft of He.Not Applicable
Flow Rate @ 80 ft of He.Not Applicable
Flow Rate @ 90 ft of He.Not Applicable
For Use With Potable Sy.Yes
Frequency60 HZ
Height9 7/8 in
Horsepower3/4 HP
HousingBronze Fitted
Housing Material - PumpsCast Iron
HP - Pumps3/4 HP
Impeller DesignClosed
Impeller Material300 Stainless Steel, Br.
Impeller Size2.88"
Inlet1-1/2"
Inlet Size - Pumps1-1/2 in NPT
Intake and Discharge Si.1 1/2 in , 1 1/4 in
Intake TypeNPT
International ShippingNo
ItemCentrifugal Pump
Length15 3/4 in
Length (Straight Wirewa.15 3/4 in
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Max Flow61.00 GPM
Max Head30.00 FT
Max Temp (?F)212
Max. Dia. Solids3/16 in
Max. Head29 ft
Max. Pressure - Pumps125 psi
Maximum Feet of Head37 ft
Maximum Flow Rate60 gpm
Maximum Media Temperatu.212 Degrees F
Maximum RPM3,500 RPM
Mechanical SealCarbon vs. Ceramic
Minimum Flow Rate25 gpm
MotorTEFC
Motor EnclosureTotally Enclosed Fan Co.
Motor Enclosure - PumpsTotally Enclosed Fan-Co.
Motor Frame Designation56J
Motor TypeCapacitor-Start
Mounting OrientationHorizontal, Vertical
Mpn2BF50712
MPN2BF50712
Nameplate Voltage115/230V AC
Outlet Size - Pumps1-1/4 in NPT
Overall Height8.1 in
Overall Length17.6 in
Overall Width6.7 in
Phase1, Single
Phase - Pumps1
PrimingManual
Product TypeSimple product
Pump Housing MaterialCast Iron
Pumping ApplicationBooster Service, Jockey.
Seal Material316 Stainless Steel, Bu.
Seal TypeMechanical
Series3642
Shaft MaterialStainless Steel
Shut Off Pressure (Maxi.125 psi
SKUZO-G1560203
Solid Diameter (Maximum)0.19 in
Specific Gravity (Maxim.1
Speed (RPM)3500
SubCategoryPumps
UPC69766602202
Voltage115/230V
Voltage - Pumps120/240V AC
Weight51.000000
Wetted Material316 Stainless Steel, Br.
Width4 7/8 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomAmazonSCB009V2VRZA938.491In StockGoulds Pump938.49 @ 1
Grainger3CCV71060.01240GOULDS WATER TECHNOLOGY1060.0 @ 1
thumbzoomsustainablesupply.comC26774351168.731In StockGoulds Water Technology50.751168.73 @ 1
AmazonTPB07GS43WZD1253.211In Stock2Gould's Pumps, Inc.1253.21 @ 1
thumbzoomandersonprocess.com2BF507121337.71In Stock35Goulds Water Technology51.01337.7 @ 1
thumbzoompumpproducts.com2BF507121337.71In Stock10Goulds1337.7 @ 1
grainger.caWWG3CCV71471.782148741In StockGOULDS WATER TECHNOLOGY50.751471.78214874 @ 1
thumbzoomZoroG15602031622.39111Goulds Water Technology50.751622.39 @ 1
thumbzoomRaptor SuppliesAC8LTH1814.67696151In StockGOULDS WATER TECHNOLOGY1814.6769615 @ 1
thumbzoomsimsupply.comZO-G15602031920.6513Goulds Water Technology1920.65 @ 1
