Grainger SF14440SQ

mpnSF14440SQ
brandname: GRAINGER APPROVED
manufacturername: GRAINGER APPROVED

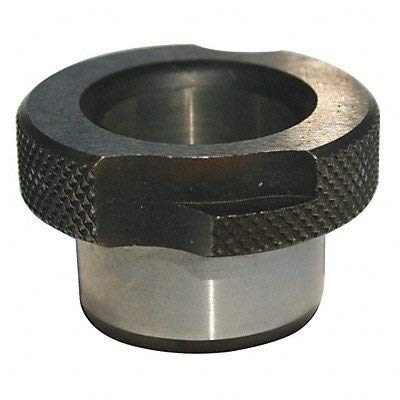

Drill Bushing SF Drill Size 1-5/8 in

Drill Bushing SF Drill Size 1-5/8 in

zoom

Brand: Grainger
PartNumber: SF14440SQ
Manufacturer: GRAINGER
Label: GRAINGER

Attributes

Key	Value
Bushing Head Type	Headed
Bushing Type	Slip Fixed Renewable Co.
Concentricity Tolerance	.0005" T.I.R. max
Decimal Equivalent	1.6250
Drill Bushing Wall Type	Standard Wall
Drill Size	1 5/8 in
Finish	High Speed Steel
Hardness	RC 62-64
Head Dia.	2 51/64 in
Head Material	High Speed Steel
Head Thickness	3/8"
Heat Treatment	Through Hardened
Inside Dia.	1 5/8 in
Inside Dia. Tolerance	+0.0001 in /+0.0004 in
Item	Slip-Fixed/Renewable Dr.
Material	52100 Thru Hardened
Material - Machining	High Speed Steel
Measurement System	Fractional Inch
Outside Dia.	2 1/4 in
Outside Dia. Tolerance	-0.0004 in /+0.0000 in
Overall Length	2 1/2 in
Rockwell Hardness	RC 62-64
Size - Decimal	19/64 in - 0.2969
Size- Decimal	1-5/8" (1.6250)

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G6282841	35.65	1	In Stock		Zoro Select	1.91	35.65 @ 1
