Marathon X063

B0042GF39G

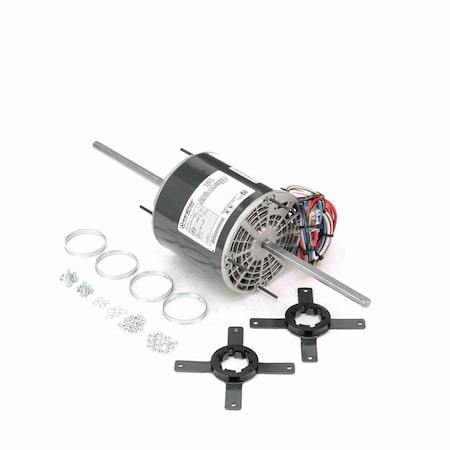

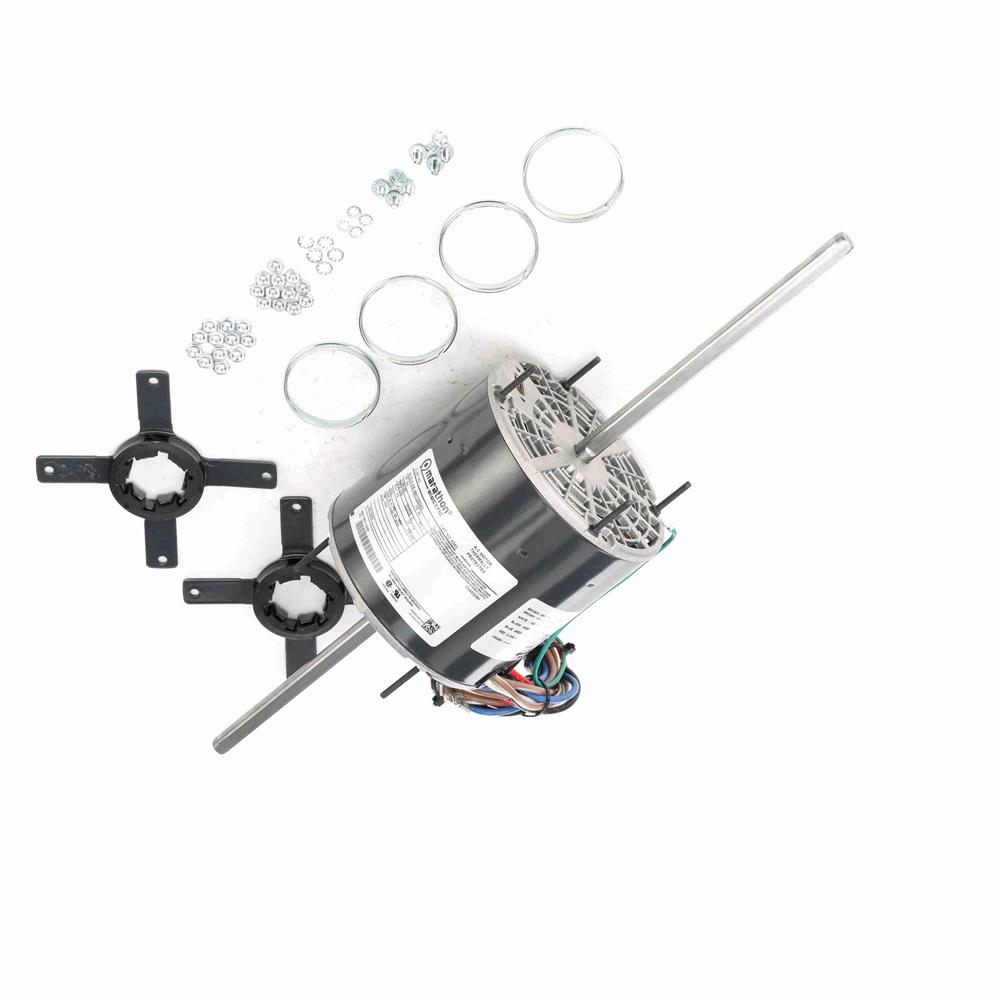

Marathon X063 HVAC Motor

Marathon X063 HVAC Motorzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11O2028
Amps5.7-4.5
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension20.00 (in.) (in.)
Capacitor10MFD/370VAC Required
Catalog NumberX063
CEN
CompositionRolled Steel
Country of Origin (subj.Mexico
CSAY
Current Rating5.7 to 4.5 A
DE Bearing TypeBall
DEM ReferenceMA#X063
DutyContinous
Duty CycleContinuous
Efficiency0.657, 65.7
Efficiency %65.7 %
Electrical TypePermanent Split Capacit.
EnclosureOPAO, Open Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over), Op.
Family SeriesMarathon Electric Motors
Frame48Z
Frame MaterialRolled Steel
Frame Type48Z
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower3/4 hp
Horsepower Rating0.75 HP
HP3/4
Hz60
Insulation ClassB
Insulation TypeClass B
IP Code10
Item NumberX063
Kilowatts0.56 kW
KVA CodeC
ManufacturerMarathon Electric
Manufacturer Model #048A11O2028
Manufacturer Part Number048A11O2028
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
Motor Shell Length5"
MountingStud
Mounting OrientationHorizontal
Mounting TypeRound - Extended Studs
Net Weight19 lbs
Number of Poles6
Number of Speeds3
ODE Bearing TypeBall
Overall Length20 ", 20"
Phase1, 1 Phase
Product CategoryHVAC/R Motors > Fan an.
Product TypePSC (Permanent Split Ca.
RotationDouble Shafted, Fixed C.
RPM1075 RPM, 1075, 1,075 R.
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
Shaft Extension7.81/6.69 (in.) (in.)
Shaft Length7.81" x 6.69"
Shaft TypeSpecial Extension Both .
Ship Weight19 lbs.
Special FeaturesService Factor - 1
Speeds3
StandardsUL Recognized
Supply Voltage208-230 VAC
Thermal ProtectionAutomatic
TypePermanent Split Capacit.
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
UPC Code722856039064
Voltage208-230
Voltage (AC)208-230 VAC
Volts208, 230, 208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comX063177.011MARATHON177.0 @ 1
thumbzoomGalcoX063-MARA225.431In StockMarathon Electric19.0225.43 @ 1
thumbzoomapexindustrialautomation.comX063228.44144Marathon228.44 @ 1
thumbzoomMRO Supply2269533248.371In StockMarathon Electric248.37 @ 1
thumbzoomemotorpro.comX063250.891In StockMarathon19.0250.89 @ 1
thumbzoommidwestapplianceparts.comX063-MT-P260.221In StockMarathon260.22 @ 1
us.rs-online.com72237916267.221In StockMarathon Motors267.22 @ 1
thumbzoomDreisilkerMA-RBC-X063276.761In StockMarathon276.76 @ 1
thumbzoomNational Supply NetworkB871862281.941In StockMARATHON MOTORS281.94 @ 1
thumbzoomcbtcompany.comX063290.141In StockMarathon Electric Motors290.14 @ 1
thumbzoomZoroG2533368307.471In StockMarathon307.47 @ 1
thumbzoomGuardianMARSX063379.021In StockMarathon379.02 @ 1
