- mpnX065
- brandname: Marathon Electric
- manufacturername: Marathon Electric

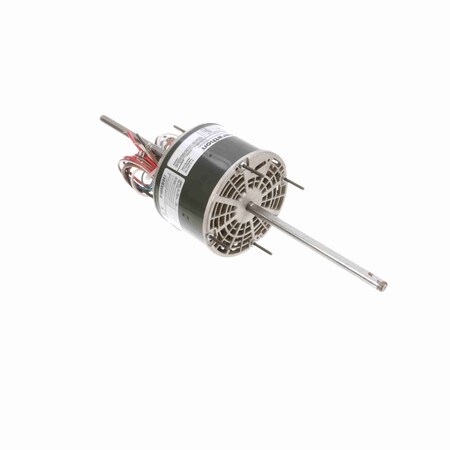

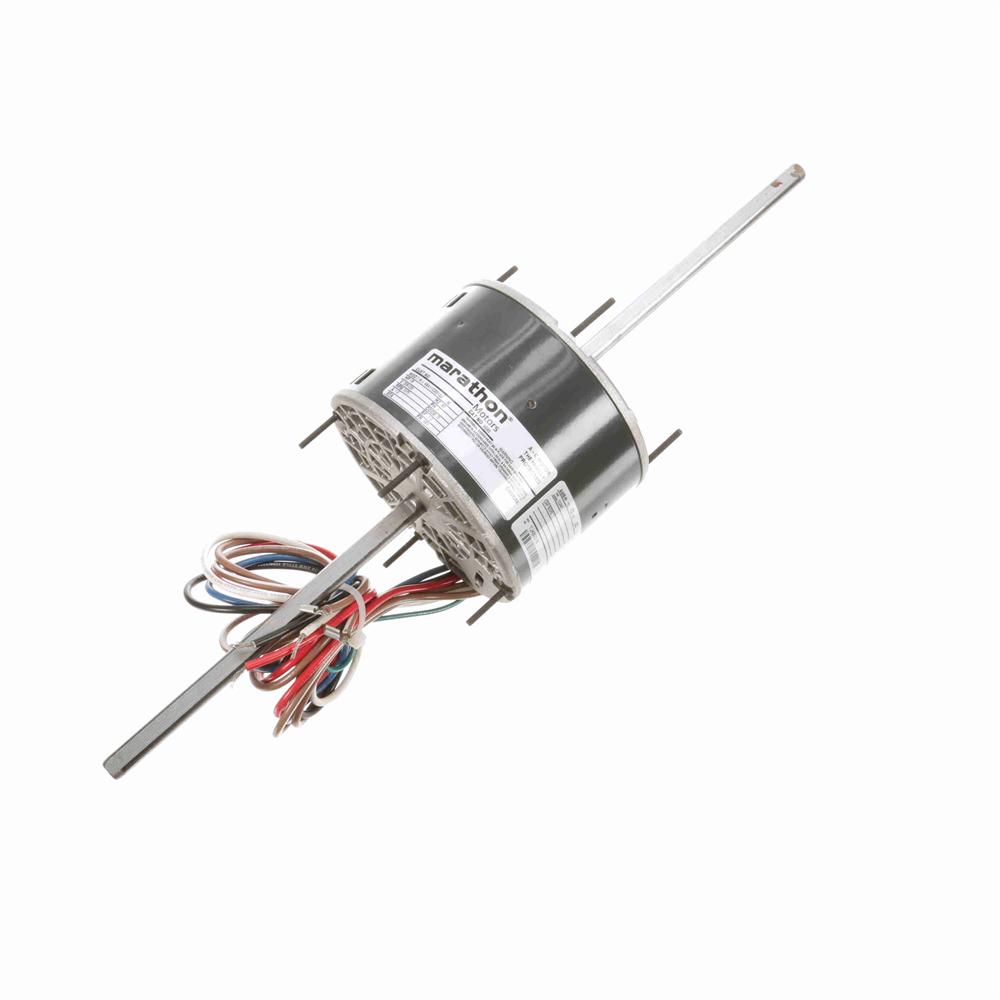

X065 48A11O2012 1/8 Hp 208-230 48Y FR 1075/3 Rpm OAO
- Brand: Marathon Electric
- PartNumber: X065
- PackageQuantity: 1
- Manufacturer: Marathon Electric
- Label: Marathon Electric
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 048A11O2012 |
| Amps | 1 |
| Approvals | CSA, UR |
| Bearing Type | Ball |
| Bearings | Ball |
| Capacitor | 5MFD/370VAC Required |
| Composition | Rolled Steel |
| Country of Origin (subj. | United States |
| Current Rating | 1 A |
| Duty Cycle | Continuous |
| Efficiency | 0.517, 51.7 |
| Efficiency % | 51.7 % |
| Enclosure | OPAO, Open Air Over |
| Enclosure Material | Steel |
| Enclosure Type | OAO (Open Air Over), Op. |
| enclosure type: | OAO (Open Air-Over) |
| Family Series | Marathon Electric Motors |
| Frame | 48Y |
| frame material: | Rolled Steel |
| frame size: | 48Y |
| Frequency | 60 Hz |
| frequency rating: | 60 Hz |
| Gross Weight | 0 lbs |
| Horsepower | 1/8 hp |
| Horsepower Rating | 0.13 HP |
| HP | 1/8 |
| Hz | 60 |
| Insulation Class | B |
| Insulation Type | Class B |
| Item Number | X065 |
| Kilowatts | 0.09 kW |
| Manufacturer | Marathon Electric |
| Manufacturer Model # | 048A11O2012 |
| Manufacturer Part Number | 048A11O2012 |
| Maximum Ambient Tempera. | 40? C |
| motor category: | Blower/Fan Motor |
| Motor Diameter | 5-5/8" |
| motor horsepower: | 0.13 hp, 1/8 hp |
| motor phase: | 1 ph |
| Motor Shell Length | 3.5" |
| motor supply voltage: | 208-230 V |
| Mounting | Stud |
| Mounting Orientation | Horizontal |
| Mounting Type | Round - Extended Studs |
| mounting type: | Round/Extended Studs |
| Net Weight | 11 lbs |
| Number of Poles | 6 |
| Number of Speeds | 3 |
| Overall Length | 20 ", 20" |
| Phase | 1, 1 Phase |
| Product Type | PSC (Permanent Split Ca. |
| Rotation | Double Shafted |
| RPM | 1075 RPM, 1075, 1,075 R. |
| Service Factor | 1 |
| service factor: | 1.00 |
| Shaft Diameter | 0.5 ", 1/2" |
| Shaft Length | 7.81" x 8.2" |
| Ship Weight | 11 lbs. |
| Special Features | Service Factor - 1 |
| Standards | UL Recognized |
| standards met: | UL, CSA |
| Supply Voltage | 208-230 VAC |
| synchronous rpm: | 1200 rpm |
| Thermal Protection | Automatic |
| Type | Permanent Split Capacit. |
| UPC Code | 722856039088 |
| Voltage | 208-230 |
| Voltage (AC) | 208-230 VAC |
| Volts | 208, 230 |
| weight: | 11 lbs |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | X065-MARA | 57.63 | 24 | In Stock | | Marathon Electric | 11.0 | 57.63 @ 24 |
 | MRO Supply | 2269519 | 57.94 | 2 | In Stock | | Marathon Electric | | 57.94 @ 2 |
| us.rs-online.com | 72238174 | 70.92 | 1 | 1 | | Marathon Motors | | 70.92 @ 1 |
 | motionindustries.com | 04739417 | 115.07 | 1 | In Stock | | Marathon Electric | | 115.07 @ 1 |
 | emotorpro.com | X065 | 121.53 | 1 | In Stock | | Marathon | 11.0 | 121.53 @ 1 |
 | Zoro | G802491775 | 186.38 | 1 | In Stock | 10 | Marathon | | 186.38 @ 1 |
