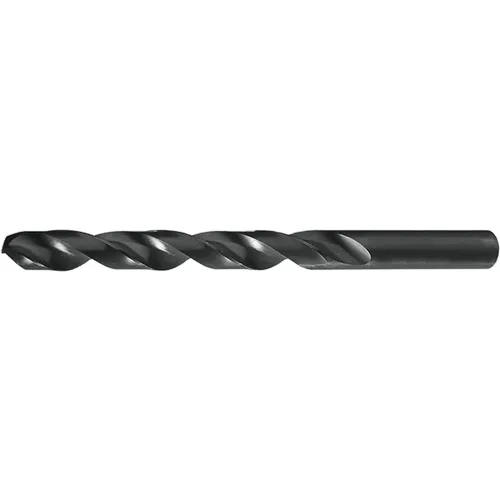

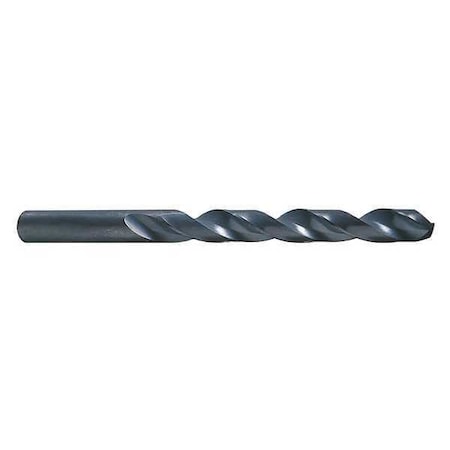

Cle-Line C23109 Heavy Duty Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, Letter Size K Drill Diameter (Pack of 12)

Cle-Line C23109 Heavy Duty Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, Letter Size K Drill Diameter (Pack of 12)

zoom

Brand: Cle-line
PartNumber: C23109
Model: C23109
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Alloy Steel, Carbon Ste.
Coolant Fed	Non-Coolant Through
Cutting Depth	5XD
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.2810
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.2810"
Diameter (Wire/Let)	K
Drill Bit Dimension Type	Letter
Drill Bit Finish	Black Oxide
Drill Bit Grouping	Drill Bit
Drill Bit Point Angle	135 Degrees
Drill Bit Size	K
Drill Construction	Heavy-Duty
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in/-0.0010 in
Drill Length Class	Jobber Length
Drill Point Length	0.0000 in
Drill Size - Decimal In.	0.281 in
Drill Size - Letter	K
Drill Size System	Letter
Drill Style	Jobber Drill
Finish	Black Oxide
Flute Length	2-15/16 in, 2 15/16 in,.
Flute Length (Metric)	74.61mm
Flute Type	Right Spiral, Spiral
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	21 Degrees to 34 Degre.
Item	Jobber Length Drill Bit
List Number	1801
Material	HSS
Maximum Drilling Depth	2 3/16 in
Number of Flutes	2
Overall Length	4 1/4 in, 4-1/4 in, 4.2.
Overall Length (Metric)	107.95mm
Point Angle	135 deg, 135?
Point Style	Split
Point Type	Split
Series	1801
Shank Configuration	Straight
Shank Dia.	17/64 in
Shank Length	1 5/16 in, 1.3125"
Shank Length (Metric)	33.34mm
Shank Size	0.2810", 0.281 in Dia x.
Shank Size (Metric)	7.14mm
Shank Type	Straight
Standards	ASME B94.11M
Style	1801
Surface Condition	Steam Oxide
Through Coolant (Yes/No)	No
Tool Size	K
Type	Heavy Duty
